Home >> Jaguar >> 2012 >> XJ (X351) V8-5.0L SC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Seats >> Seat Temperature Control Module >> C3HS54B RH Rear Seat Heater Module

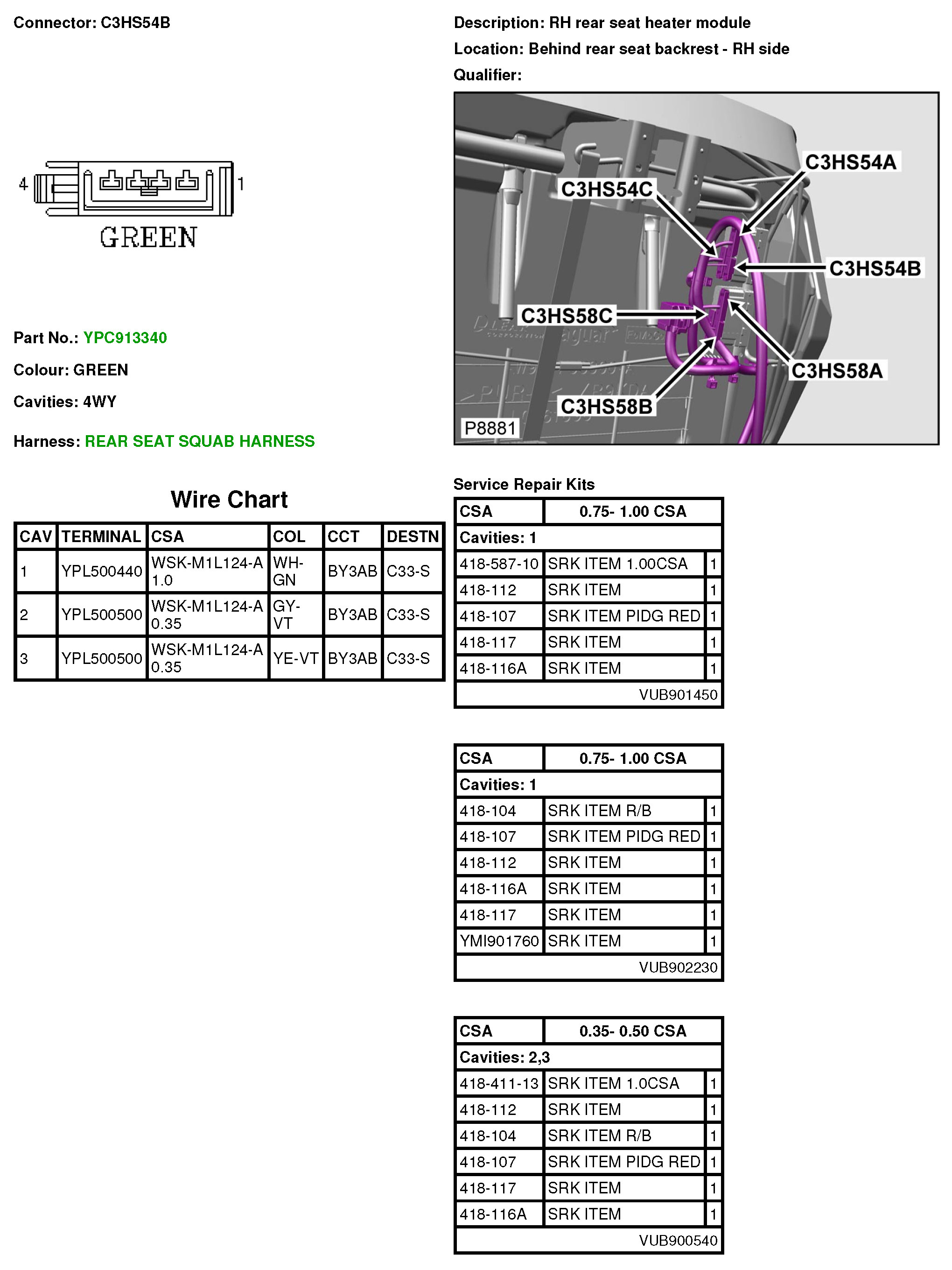

C3HS54B RH Rear Seat Heater Module



C3HS54B
