Power Trunk / Liftgate Control Module
>>

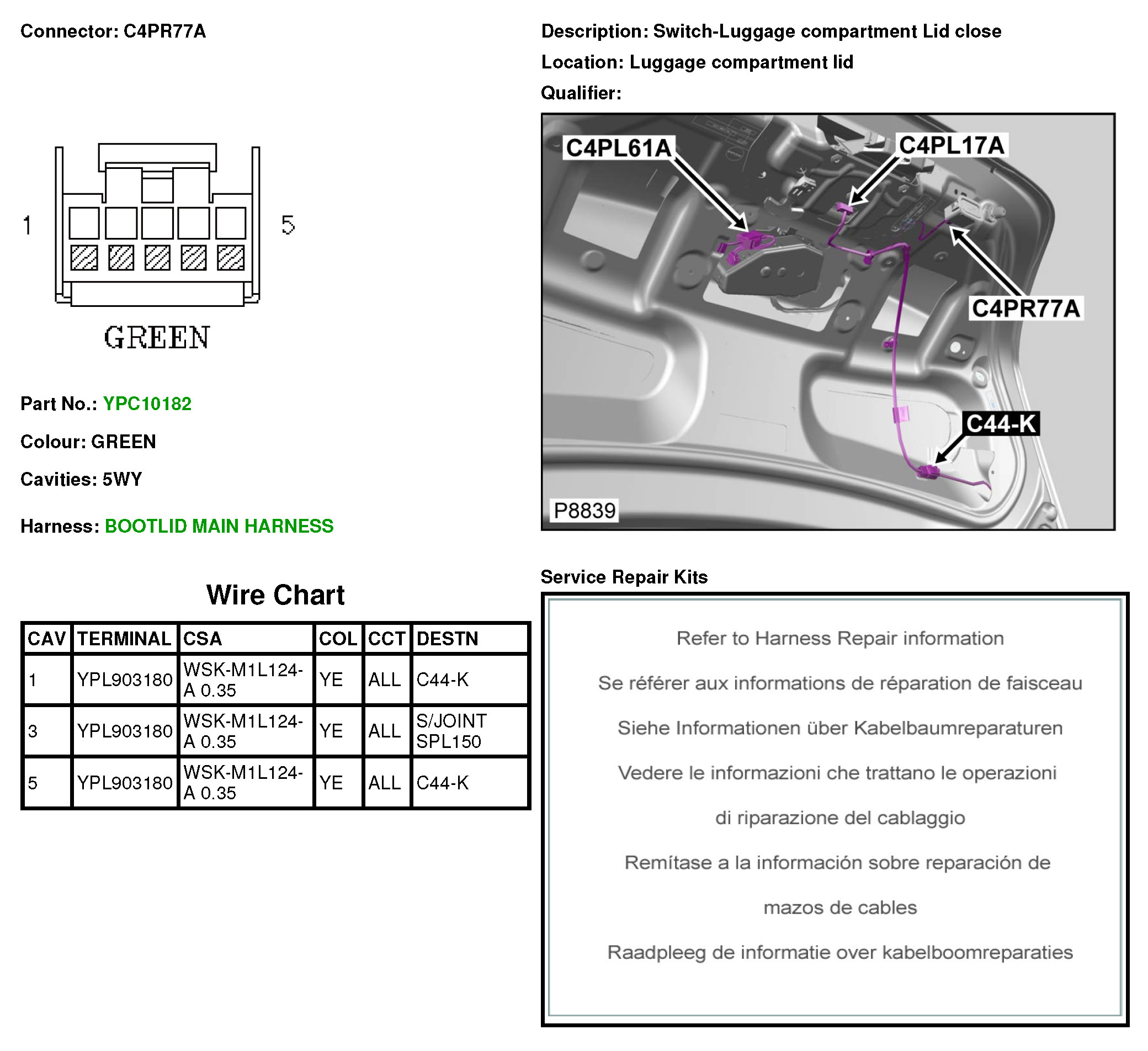

C4PR77A Switch-Luggage compartment Lid Close
C4PR77A Switch-Luggage compartment Lid Close
C4PR77A
