Home >> Jaguar >> 2012 >> XF (X250) V8-5.0L SC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Seat Temperature Control Module >> C3HS03B Module-Climate-Controlled Seat

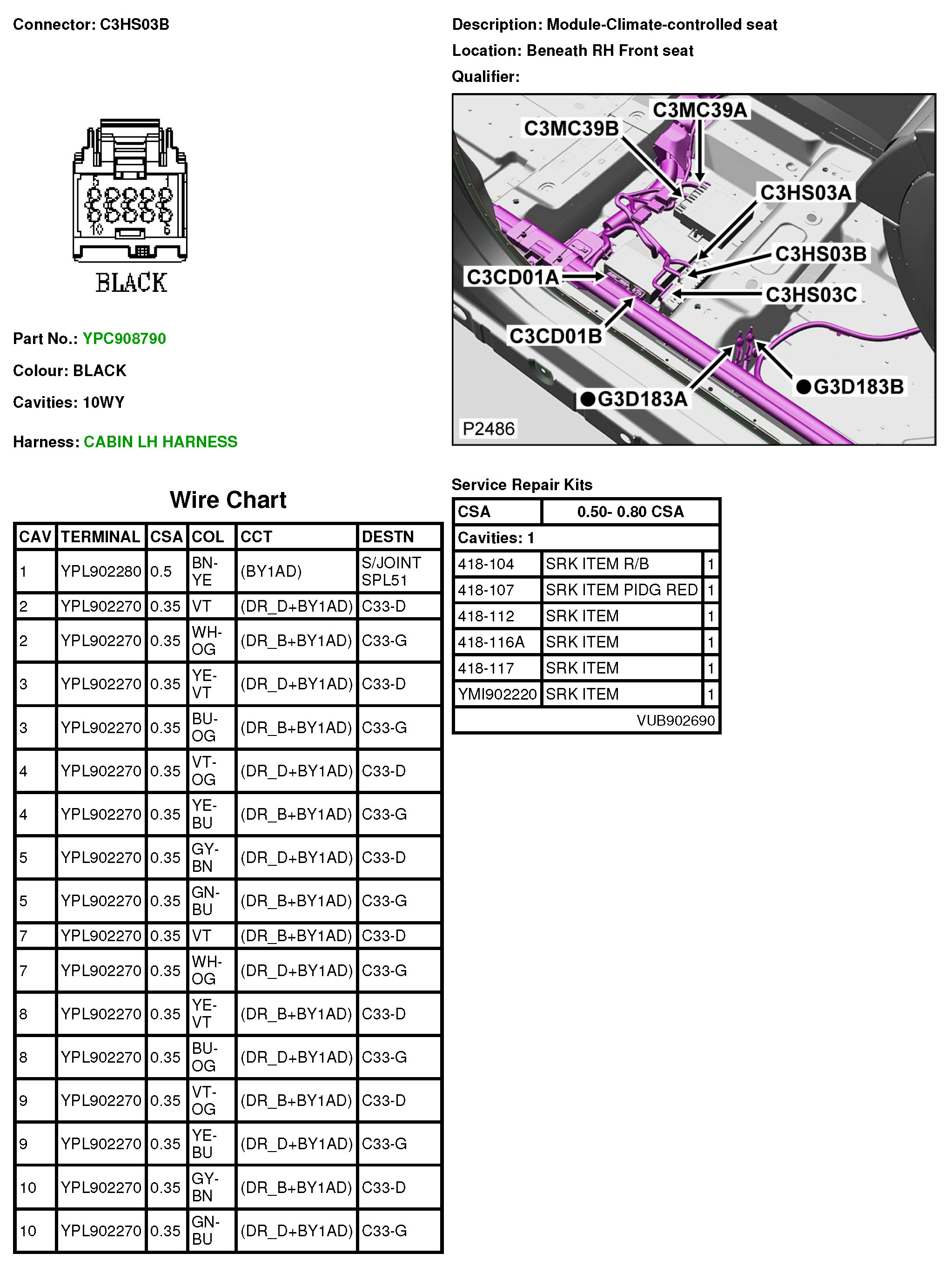

C3HS03B Module-Climate-Controlled Seat



C3HS03B
