Oil Temperature Sensor/Switch, Engine
>>

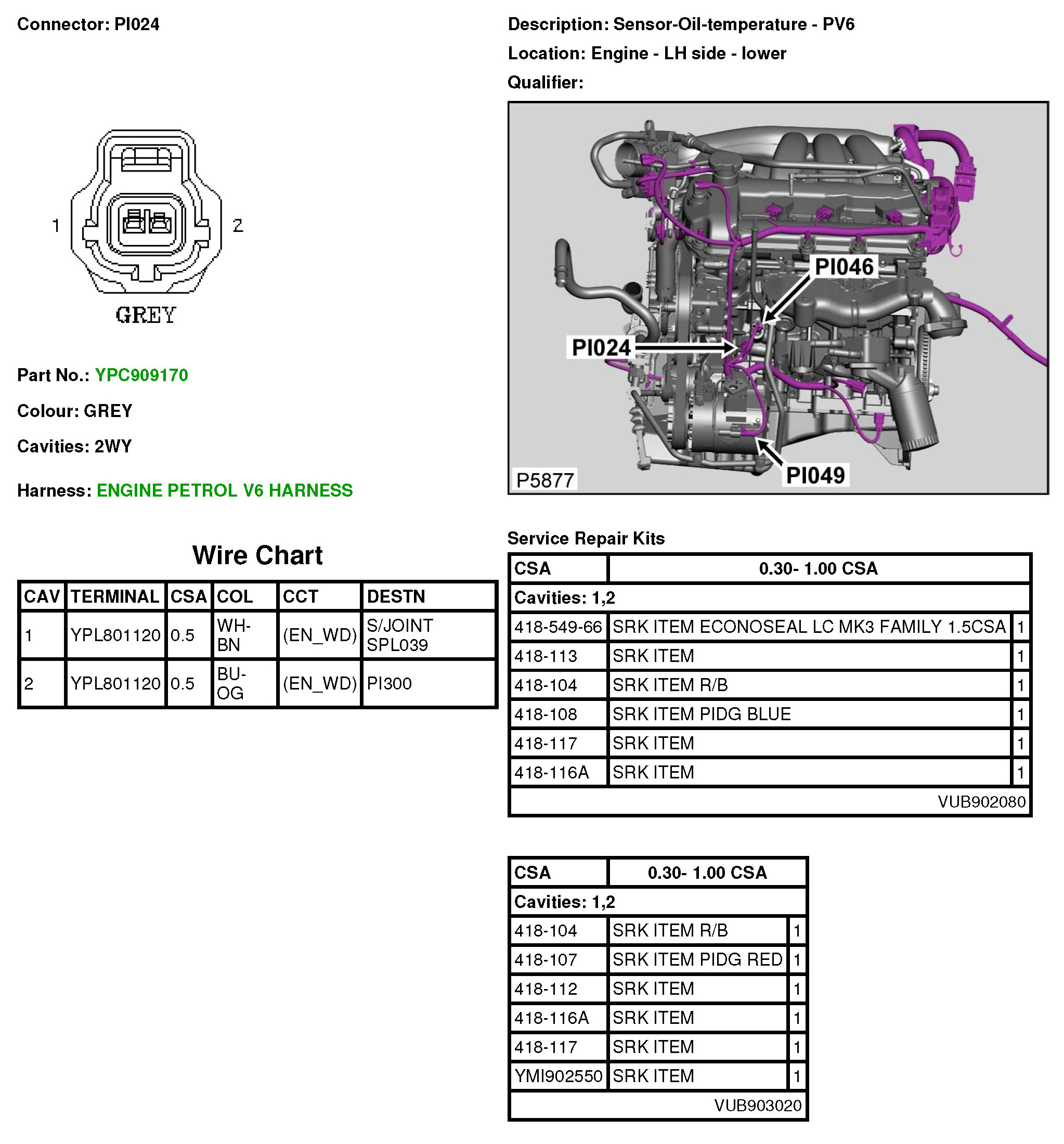

PI024 Sensor-Oil-Temperature
PI024 Sensor-Oil-Temperature
PI024
