Home >> Jaguar >> 2012 >> XF (X250) V8-5.0L SC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Door Module >> C8PK26 RH Rear Door Handle Module

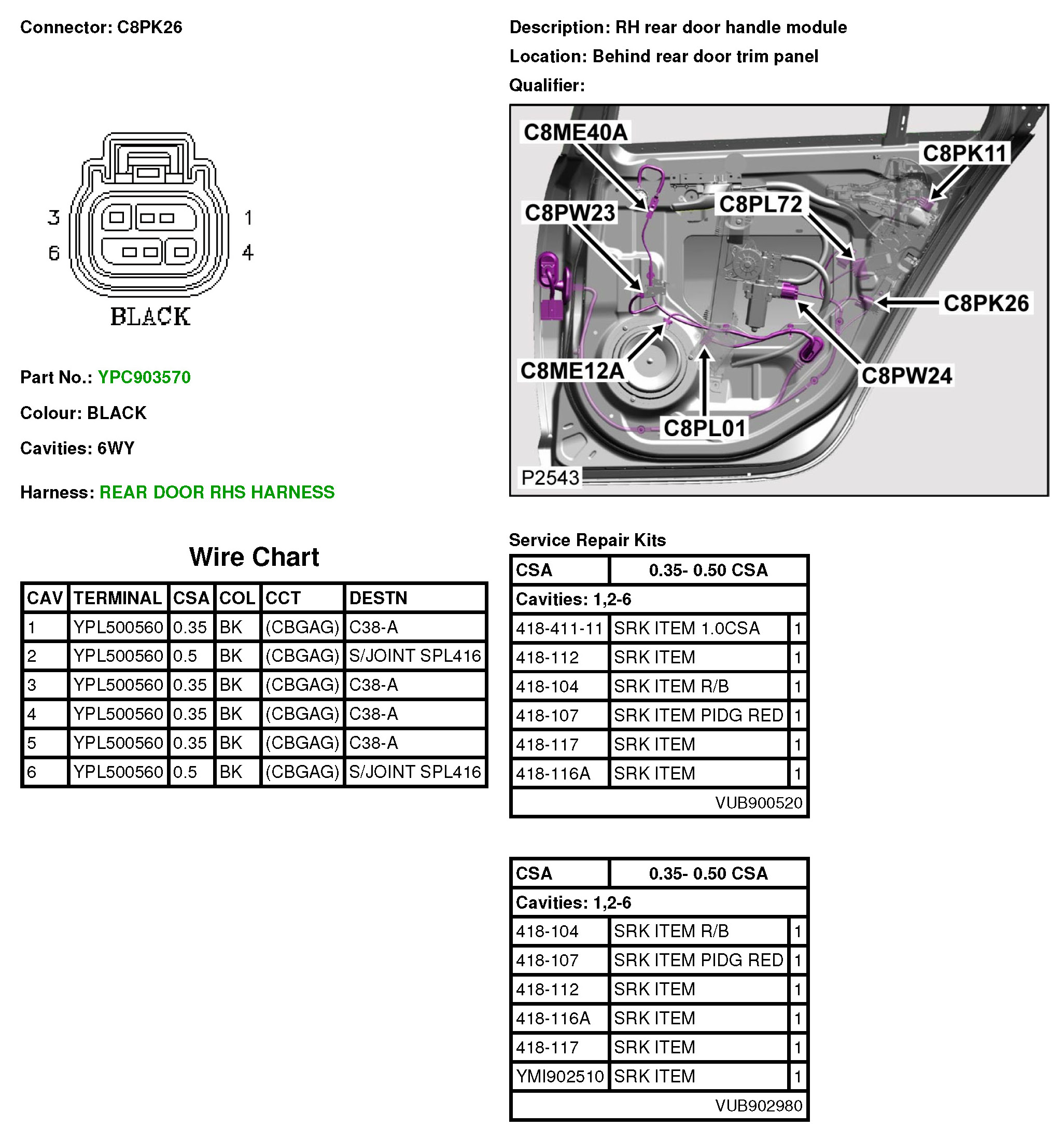

C8PK26 RH Rear Door Handle Module



C8PK26
