Home >> Jaguar >> 2011 >> XJ (X351) V8-5.0L SC >> Repair and Diagnosis >> Body and Frame >> Locks >> Keyless Entry >> Keyless Entry Module >> Locations >> C3PK28A

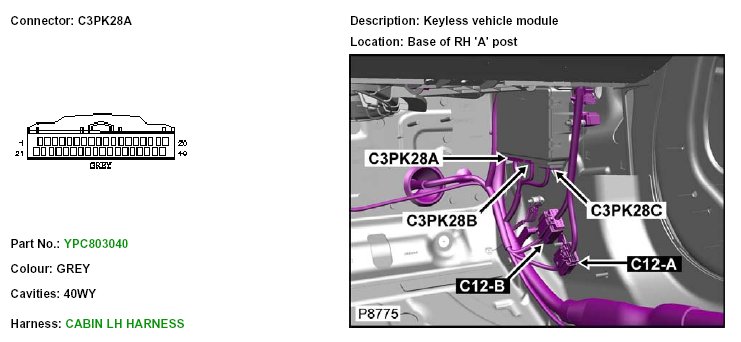

C3PK28A

C3PK28A

C3PK28A Part 1:

C3PK28A Part 2:

C3PK28A Part 3:
