Home >> Jaguar >> 2011 >> XF (X250) V8-5.0L SC >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Engine Control Module >> Locations >> C1E120A

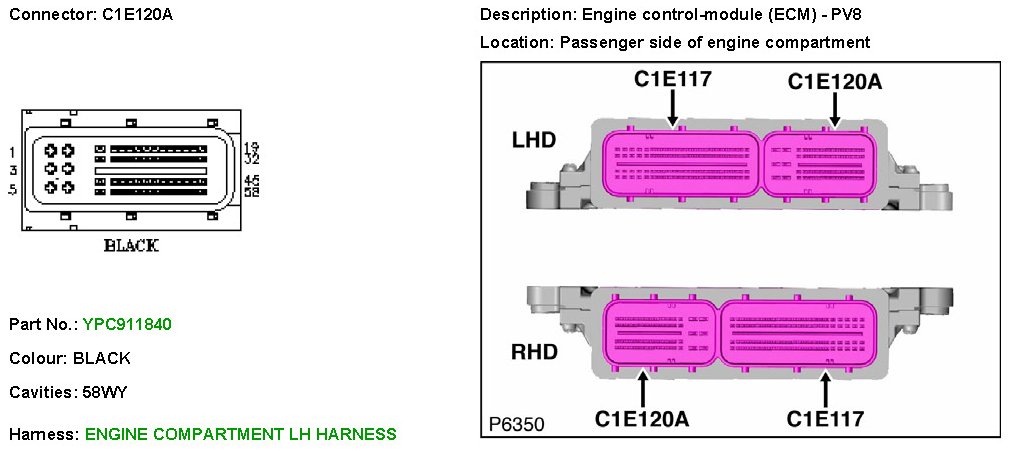

C1E120A



C1E120A

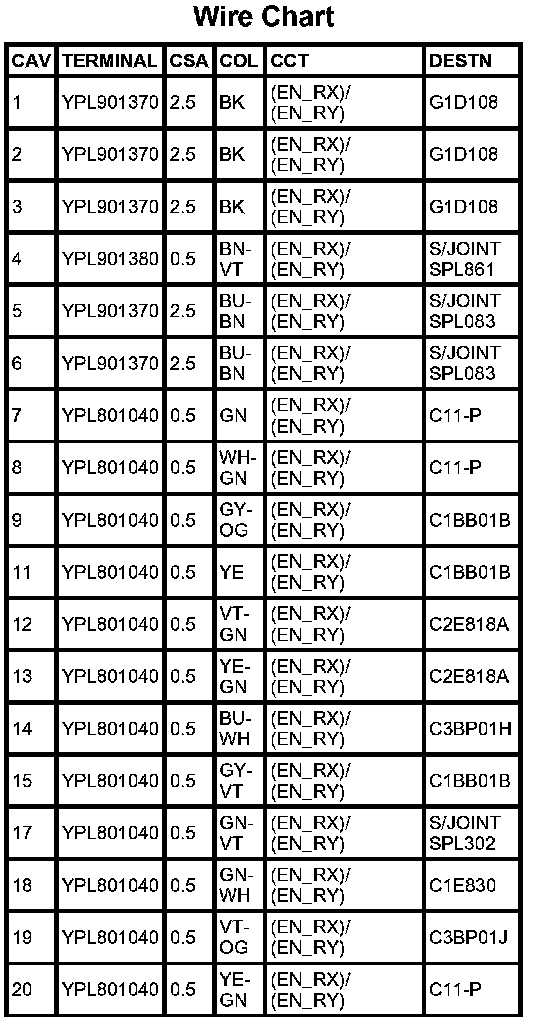

C1E120A (Part 1):

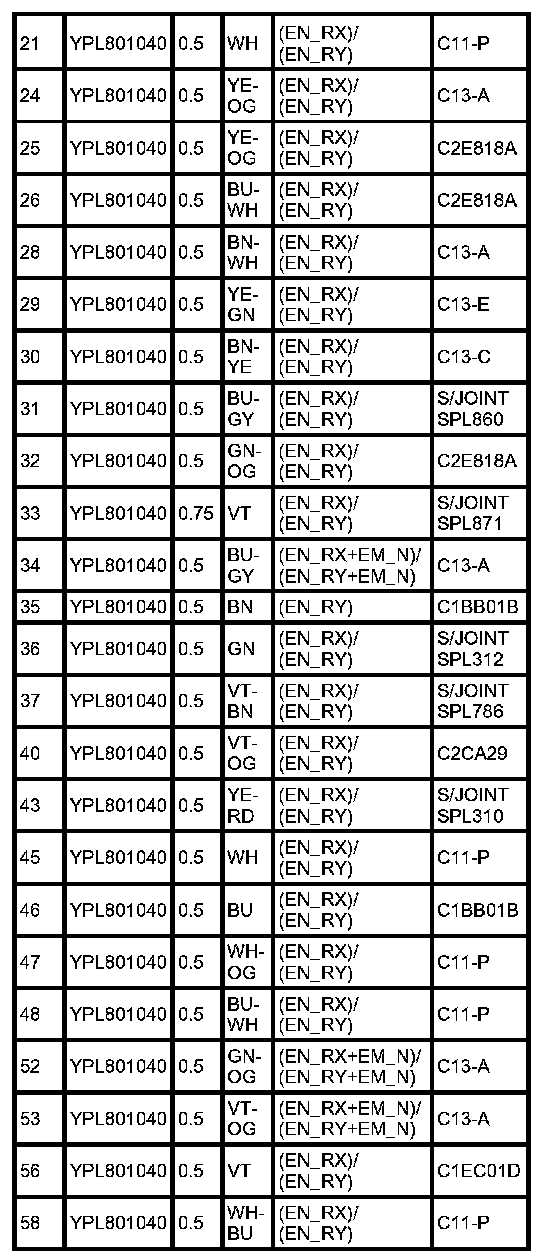

C1E120A (Part 2):




C1E120A (Part 3):
