Home >> Jaguar >> 2011 >> XF (X250) V8-5.0L SC >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Accelerator Pedal Position Sensor >> Locations

Accelerator Pedal Position Sensor: Locations



C2E818A

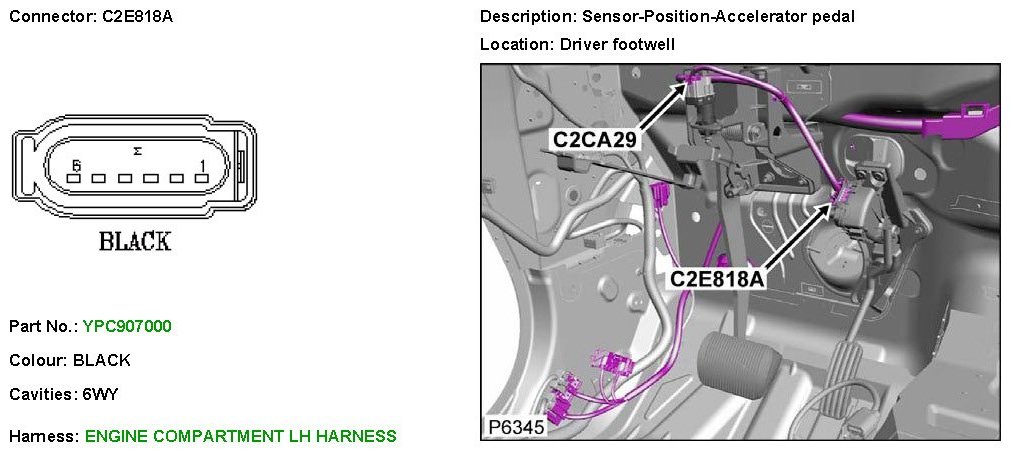

C2E818A (Part 1):

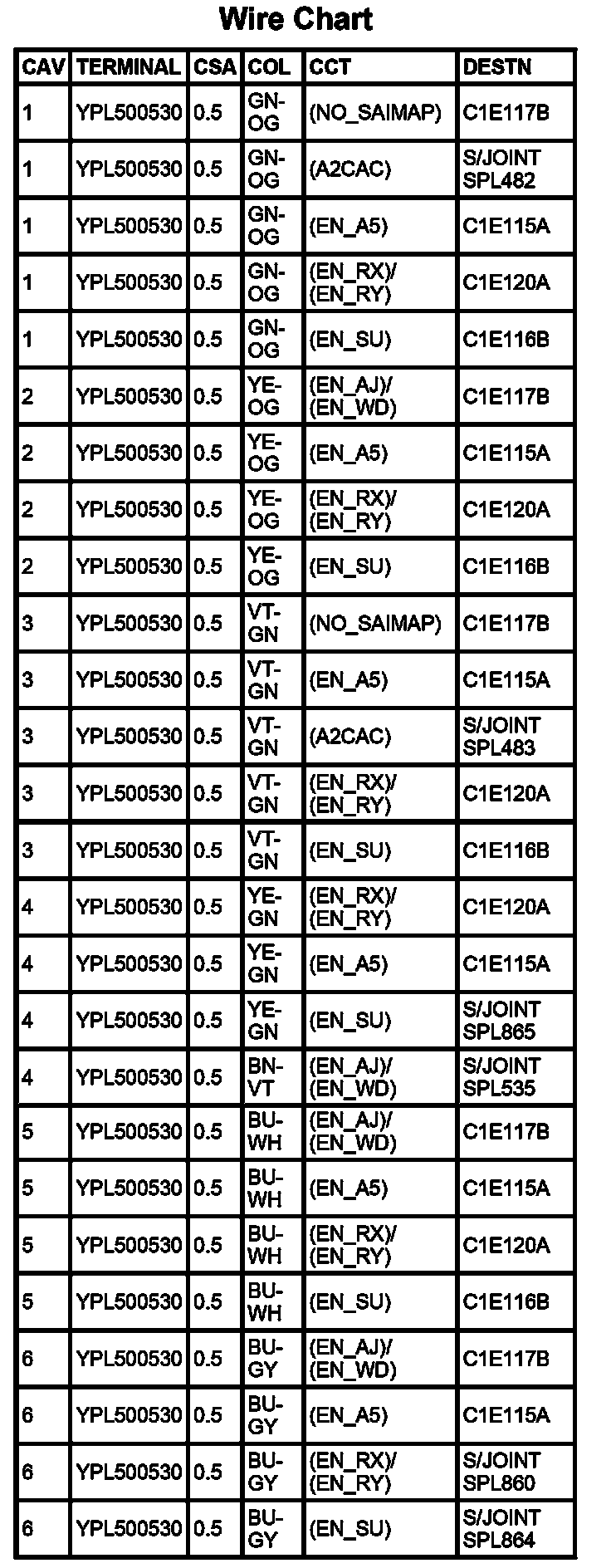

C2E818A (Part 2):
