Home >> Jaguar >> 2009 >> XK (X150) V8-4.2L SC >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - HVAC >> Control Module HVAC >> Locations >> ECU-Automatic-Temperature Control >> CA112

CA112



CA112

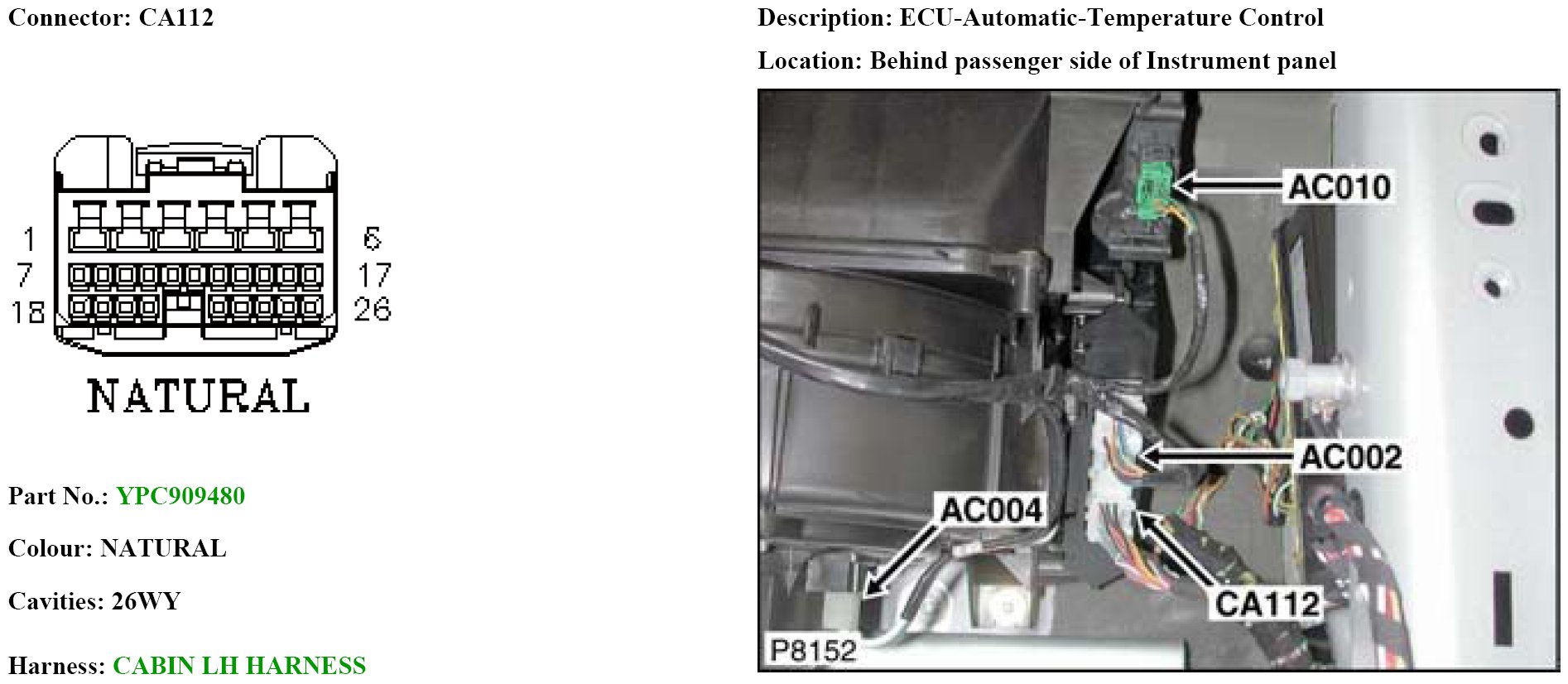

CA112 (Part 1):

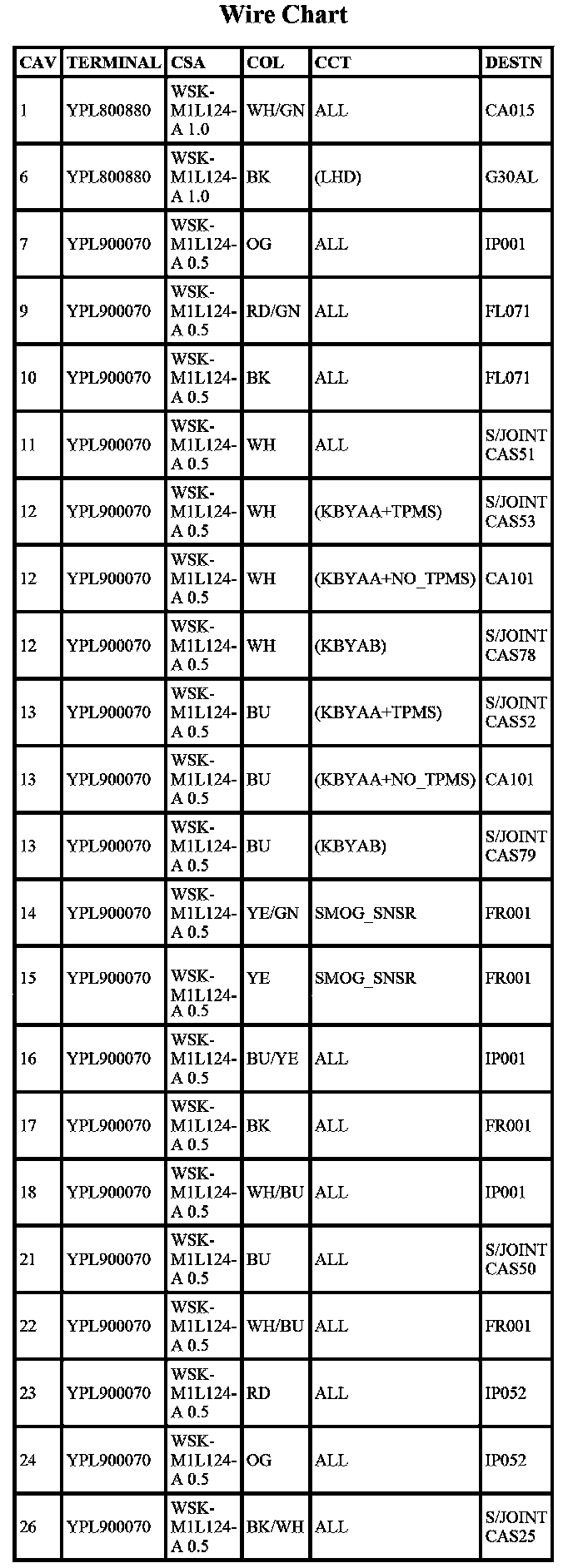

CA112 (Part 2):
