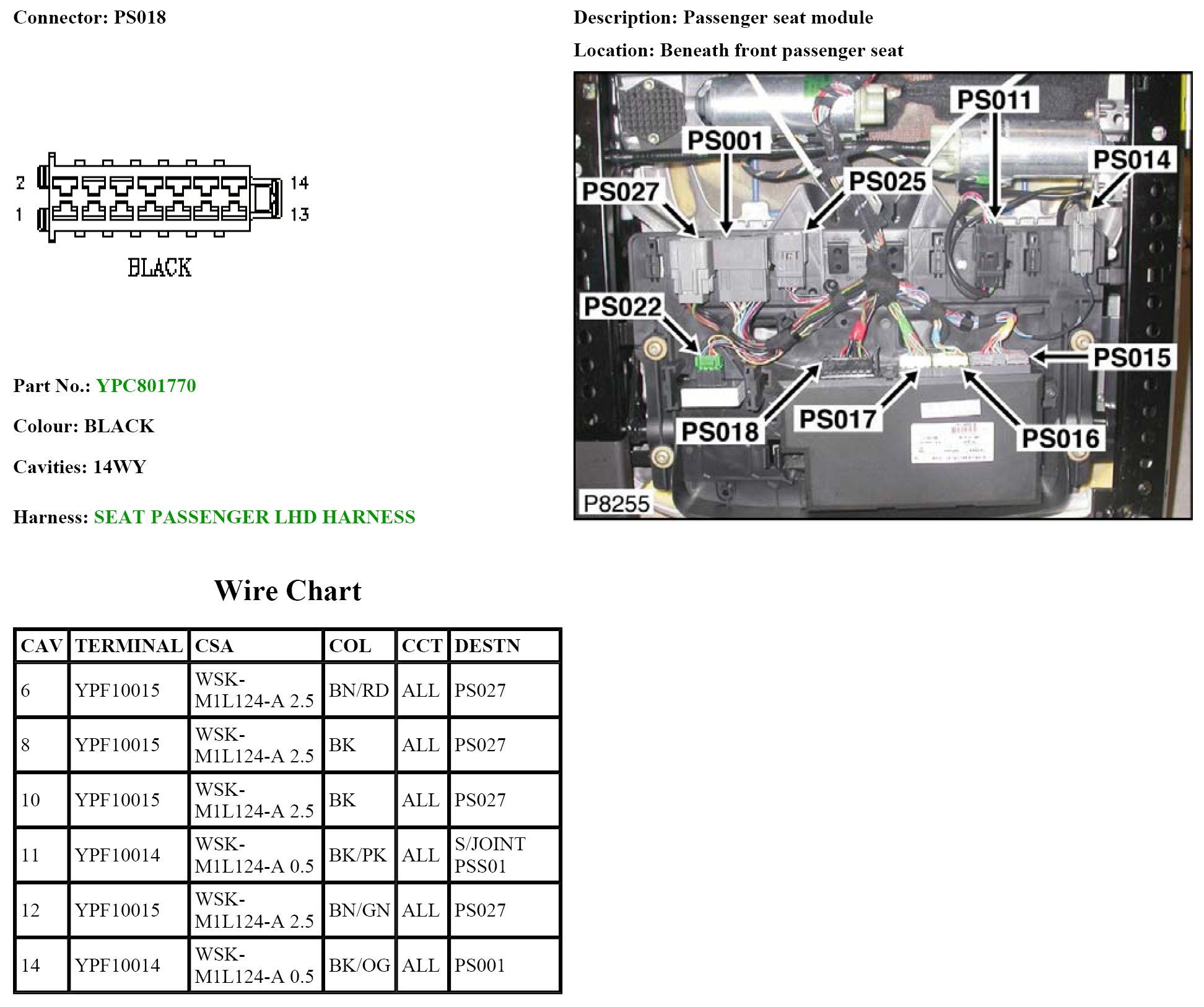

Home >> Jaguar >> 2009 >> XK (X150) V8-4.2L SC >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Body and Frame >> Power Seat Control Module >> Locations >> Passenger Seat Module >> PS018

PS018



PS018


PS018:
