Home >> Jaguar >> 2009 >> XK (X150) V8-4.2L SC >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Body and Frame >> Power Seat Control Module >> Locations >> Driver Seat Module >> DS016

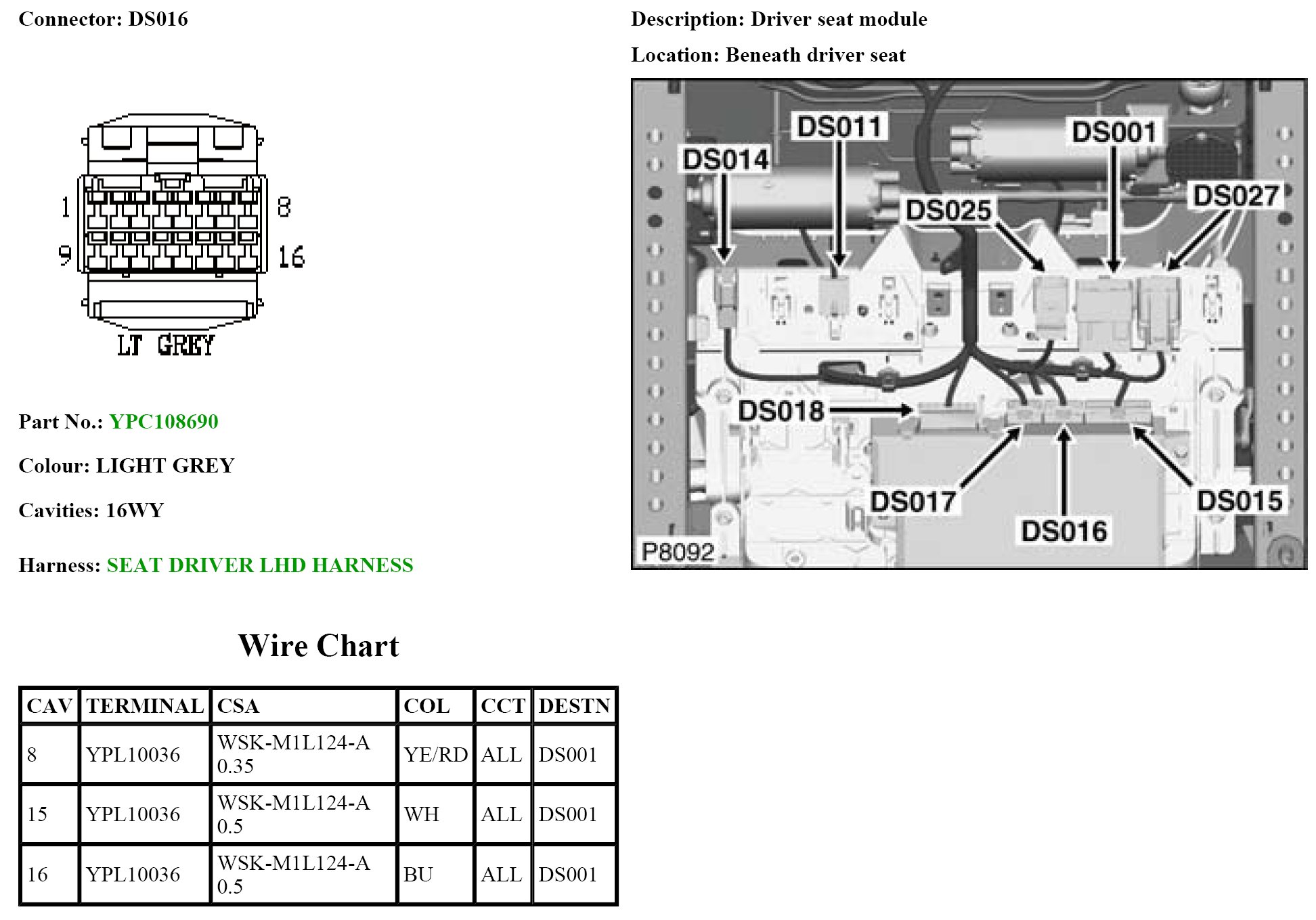

DS016



DS016


DS016:
