Home >> Jaguar >> 2009 >> XK (X150) V8-4.2L SC >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Body and Frame >> Power Seat Control Module >> Locations >> Driver Seat Module >> DS015

DS015



DS015

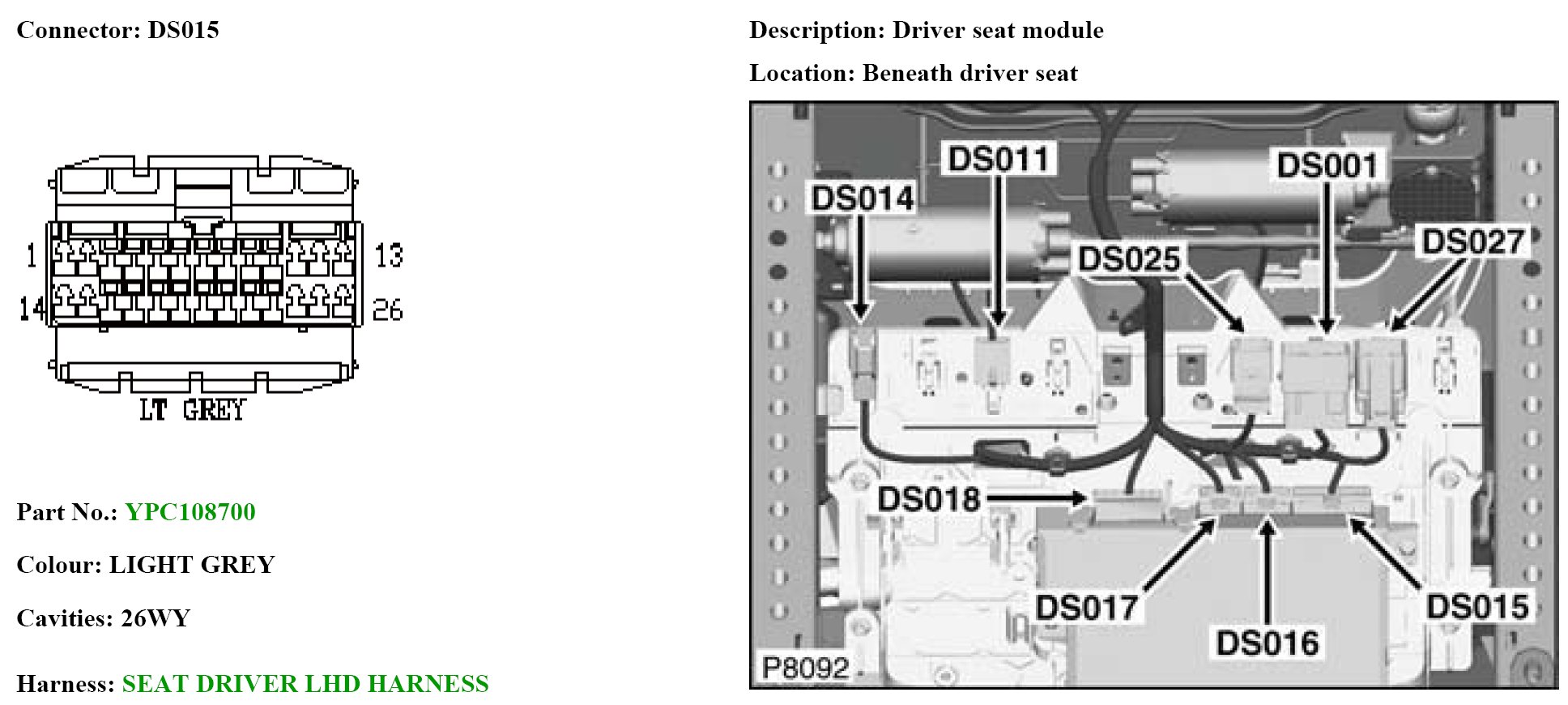

DS015 (Part 1):

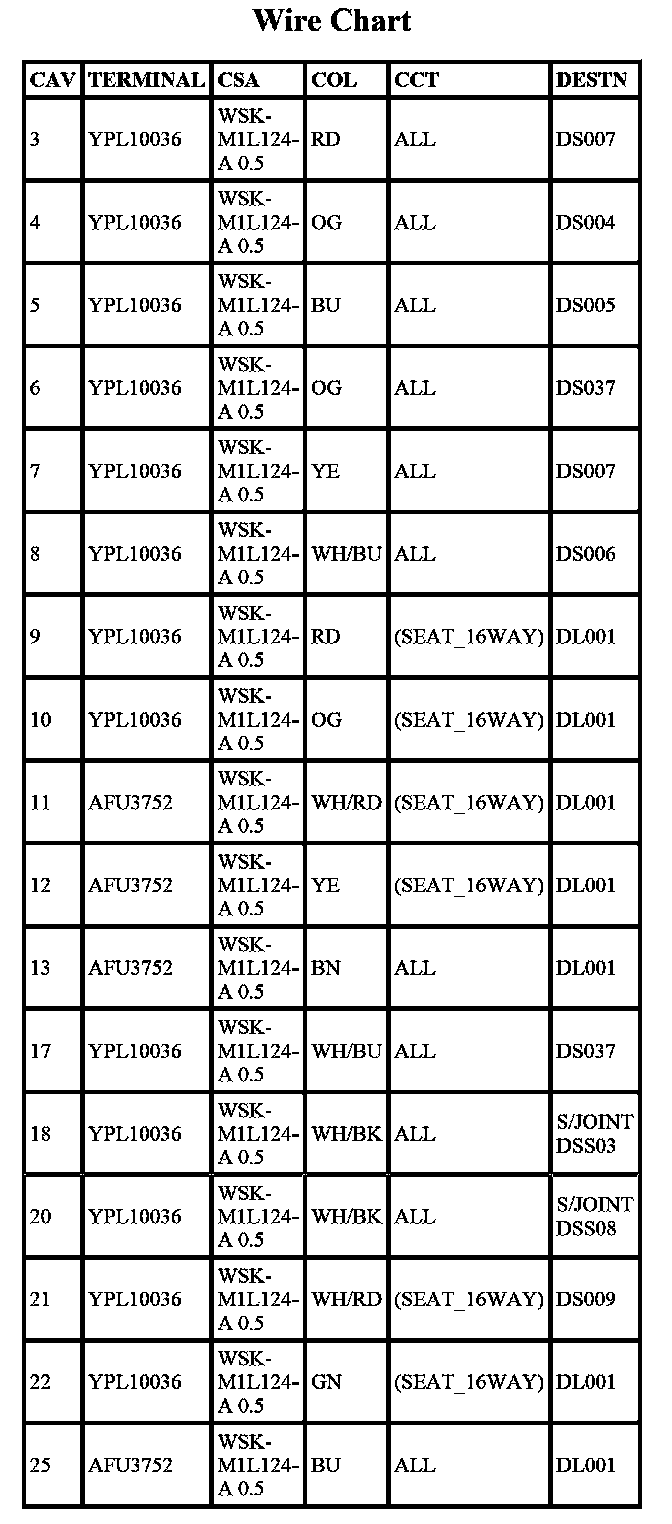

DS015 (Part 2):
