Home >> Jaguar >> 2009 >> XK (X150) V8-4.2L SC >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Body and Frame >> Door Module >> Locations >> Module-Driver-Door >> DD003

DD003



DD003

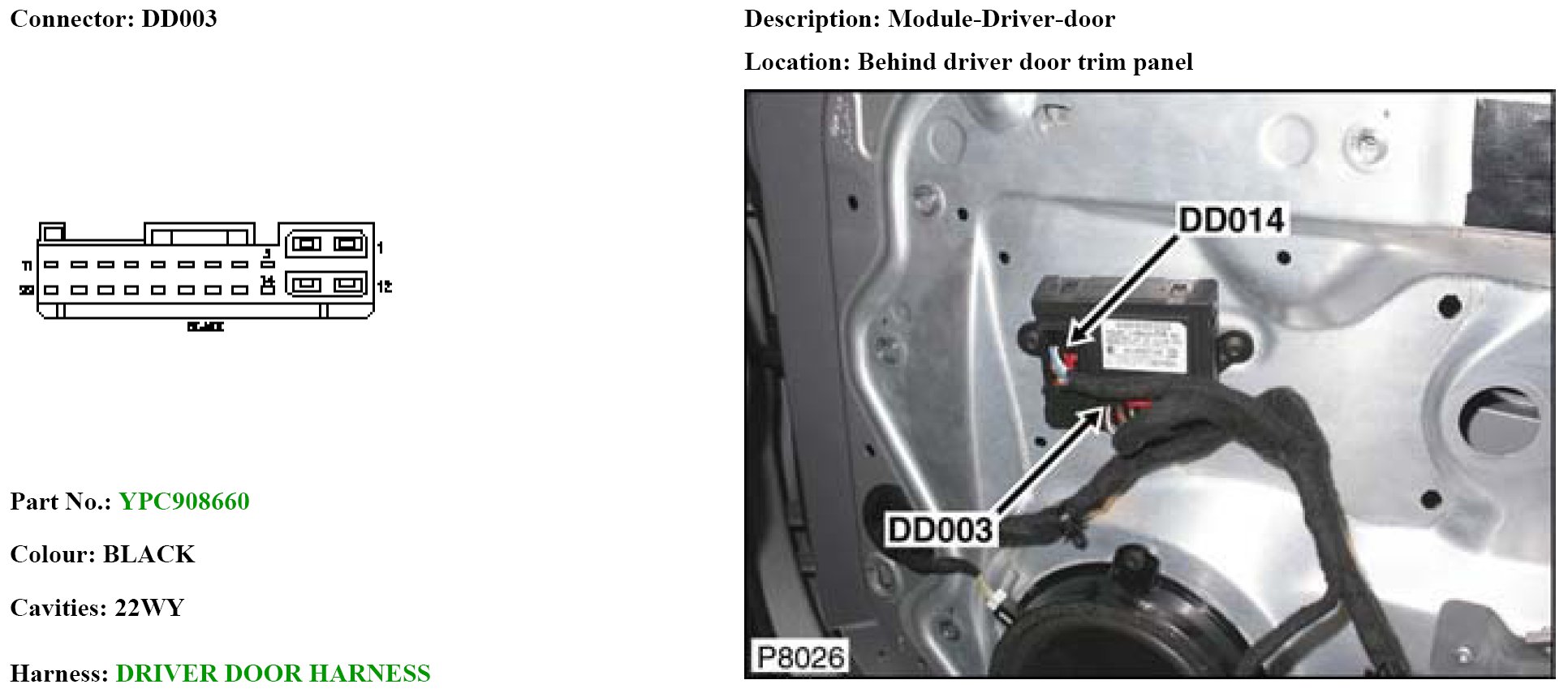

DD003 (Part 1):

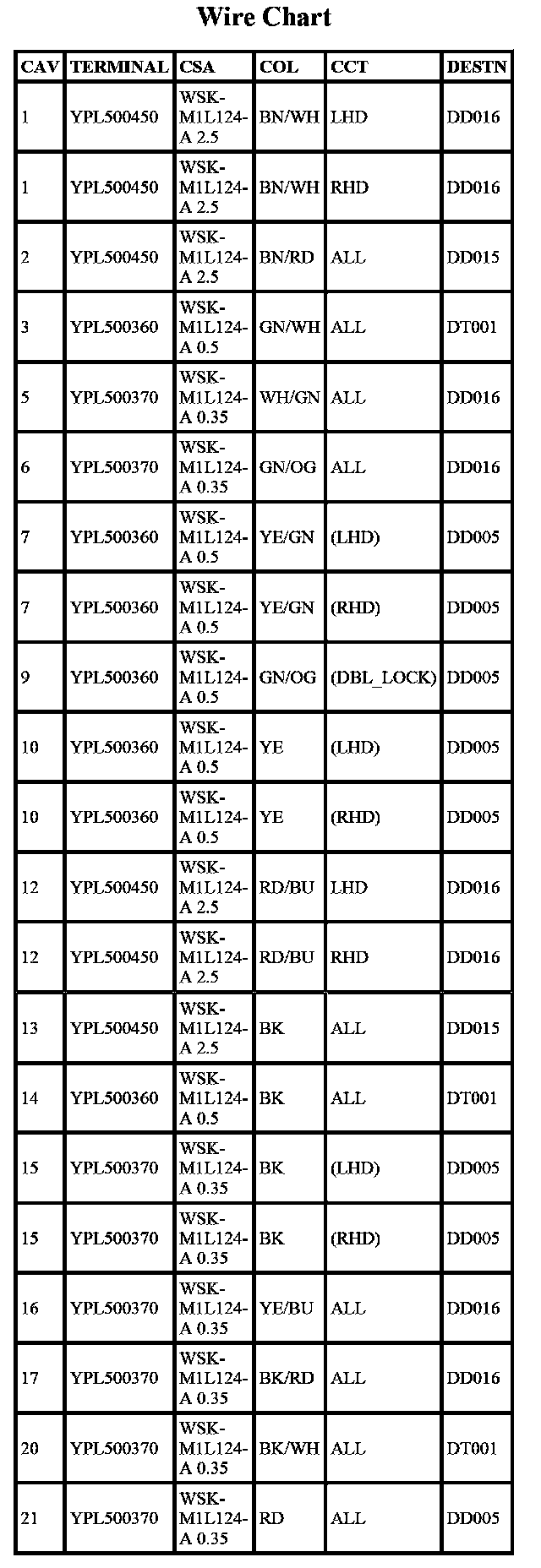

DD003 (Part 2):
