Home >> Jaguar >> 2009 >> XK (X150) V8-4.2L SC >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Body and Frame >> Convertible Top Control Module >> Locations >> CA145

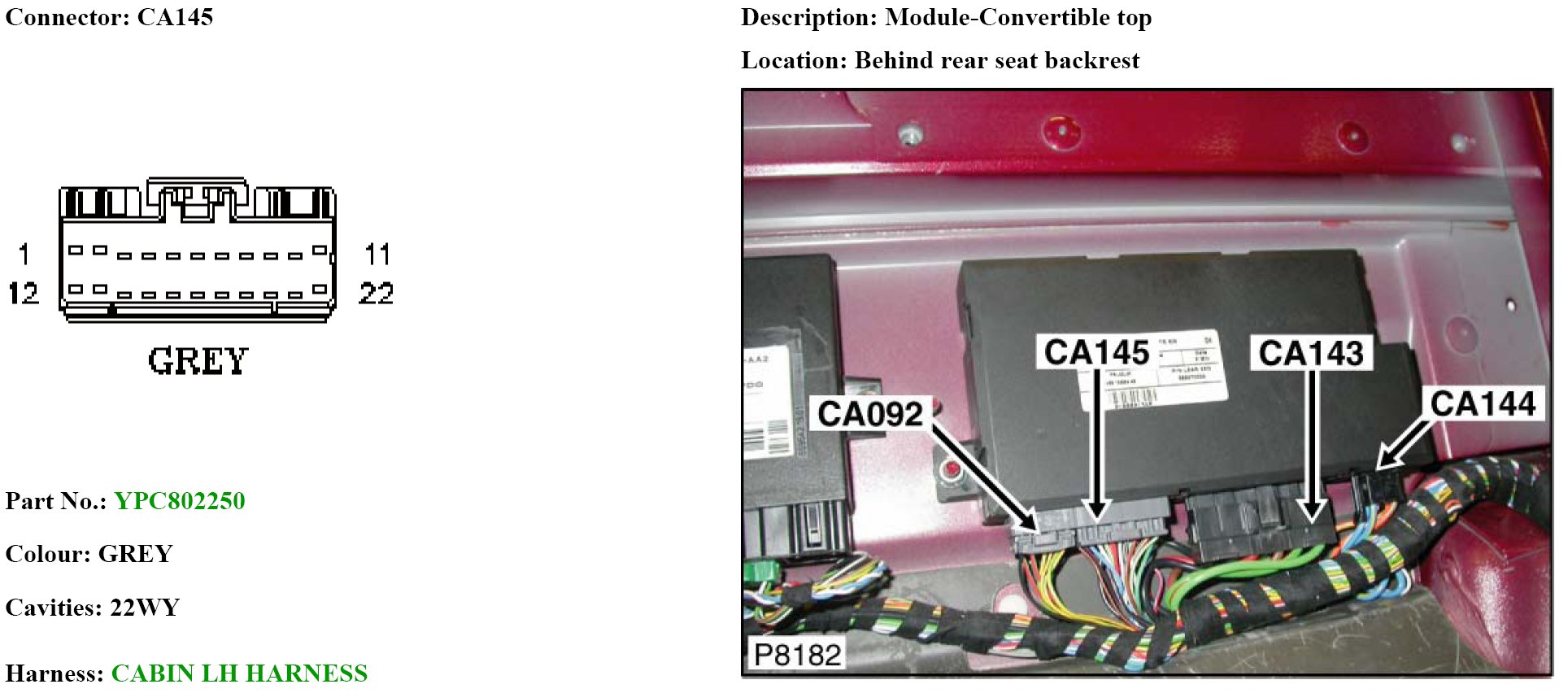

CA145



CA145

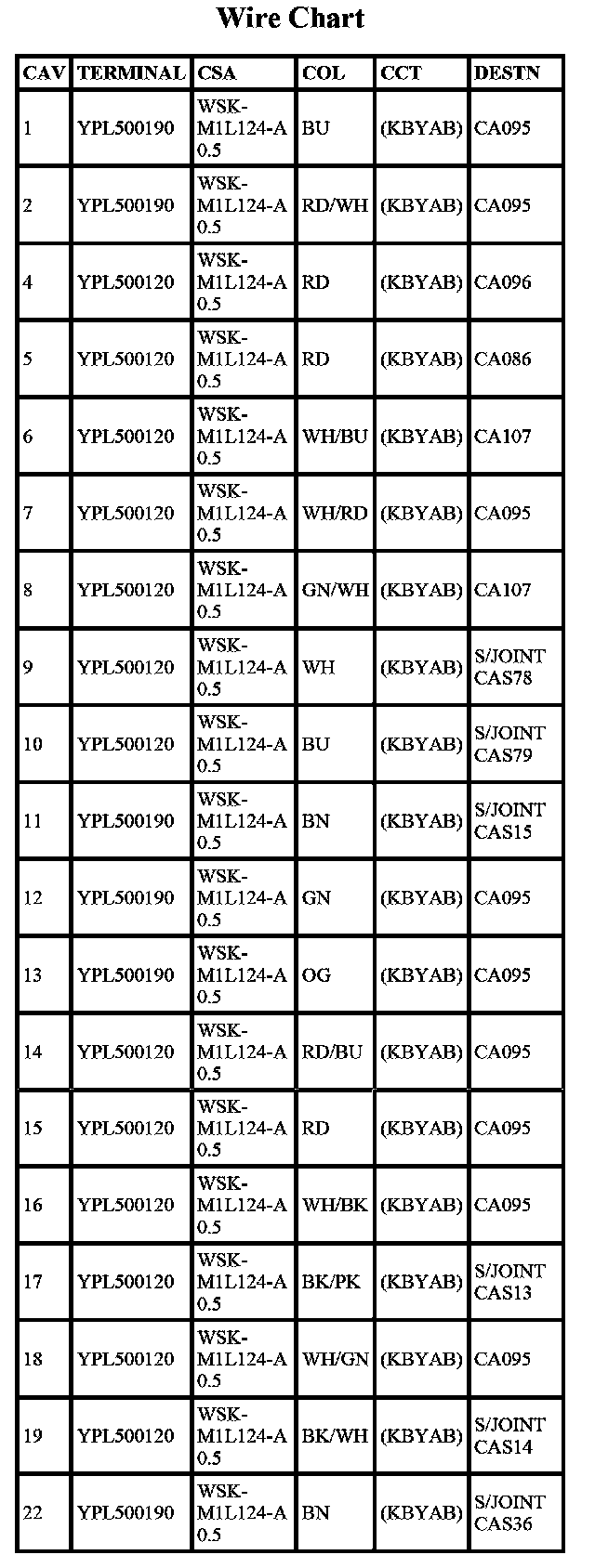

CA145 (Part 1):




CA145 (Part 1):
