Jaguar
>>
2009
>>
XF (X250) V8-4.2L SC
>>
Repair and Diagnosis
>>
Restraints and Safety Systems
>>
Pedestrian Protection System
>>
Locations
>>
Pedestrian Protection Module
Pedestrian Protection Module
Pedestrian Protection Module

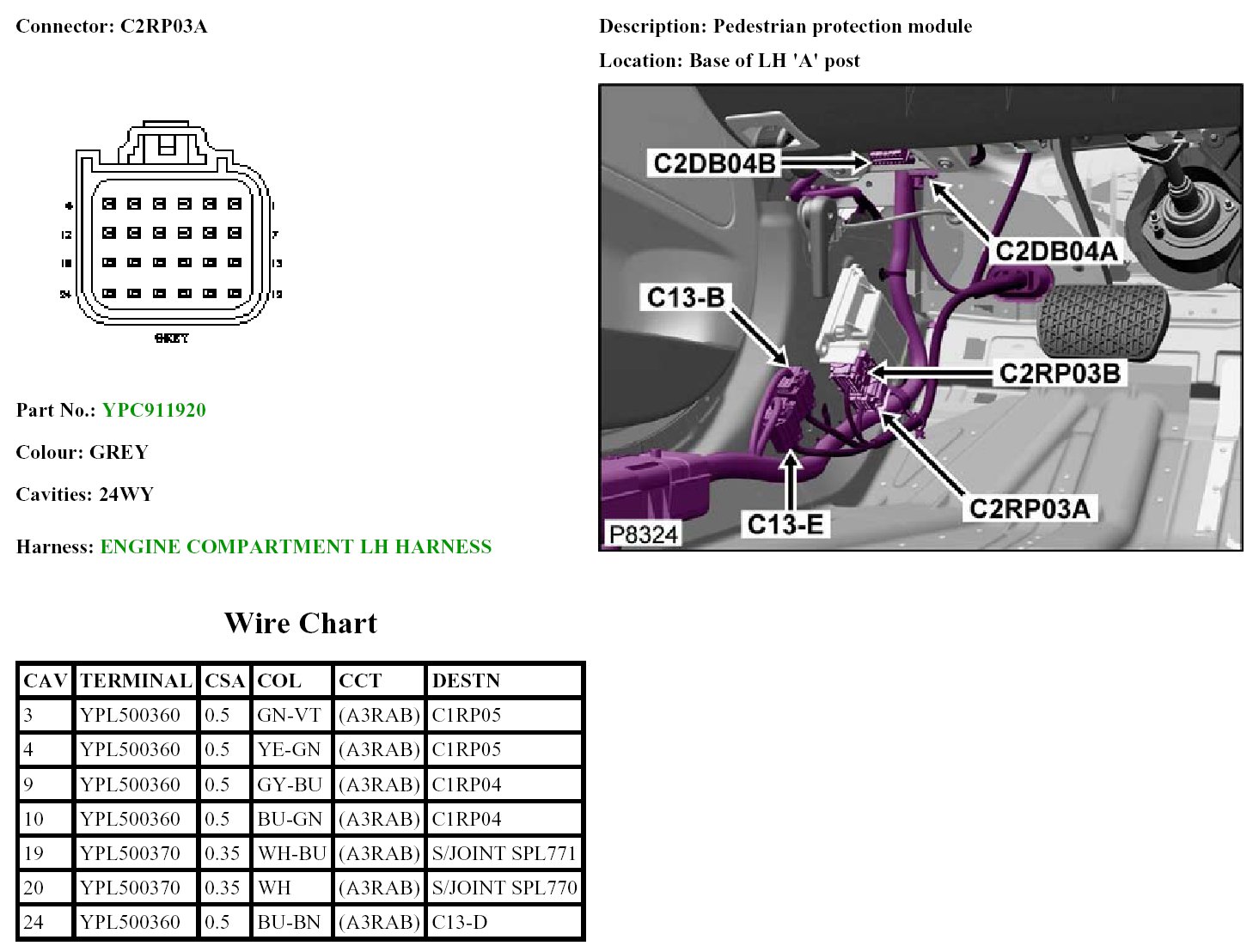

C2RP03A:

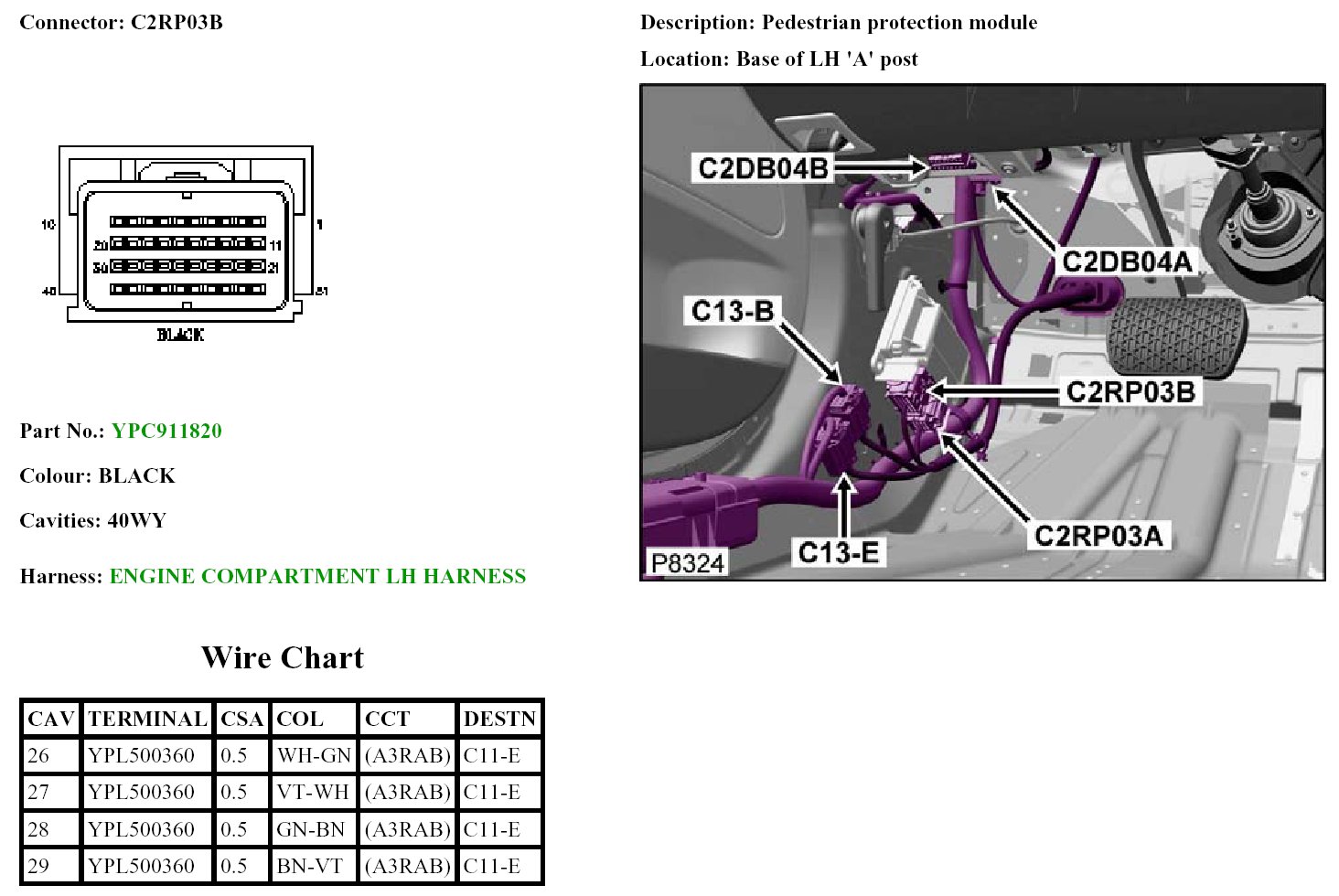

C2RP03B:
