FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Jaguar
>>
2009
>>
XF (X250) V8-4.2L SC
>>
Repair and Diagnosis
>>
Relays and Modules
>>
Relays and Modules - Body and Frame
>>
Door Module
>>
Testing and Inspection
>>
Diagnostic Trouble Code Descriptions
>>
Passenger Front Door Module (PDM)
Passenger Front Door Module (PDM)

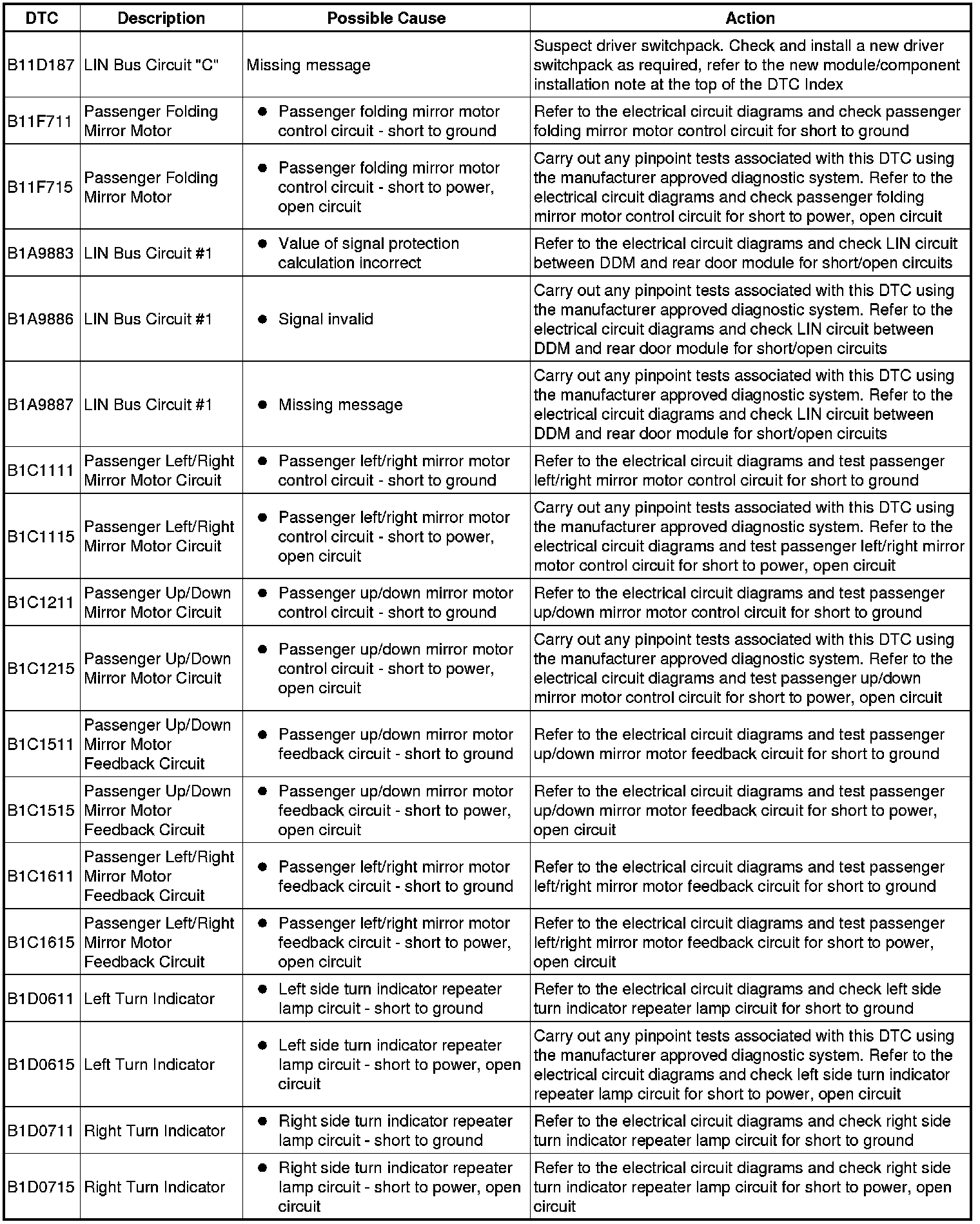

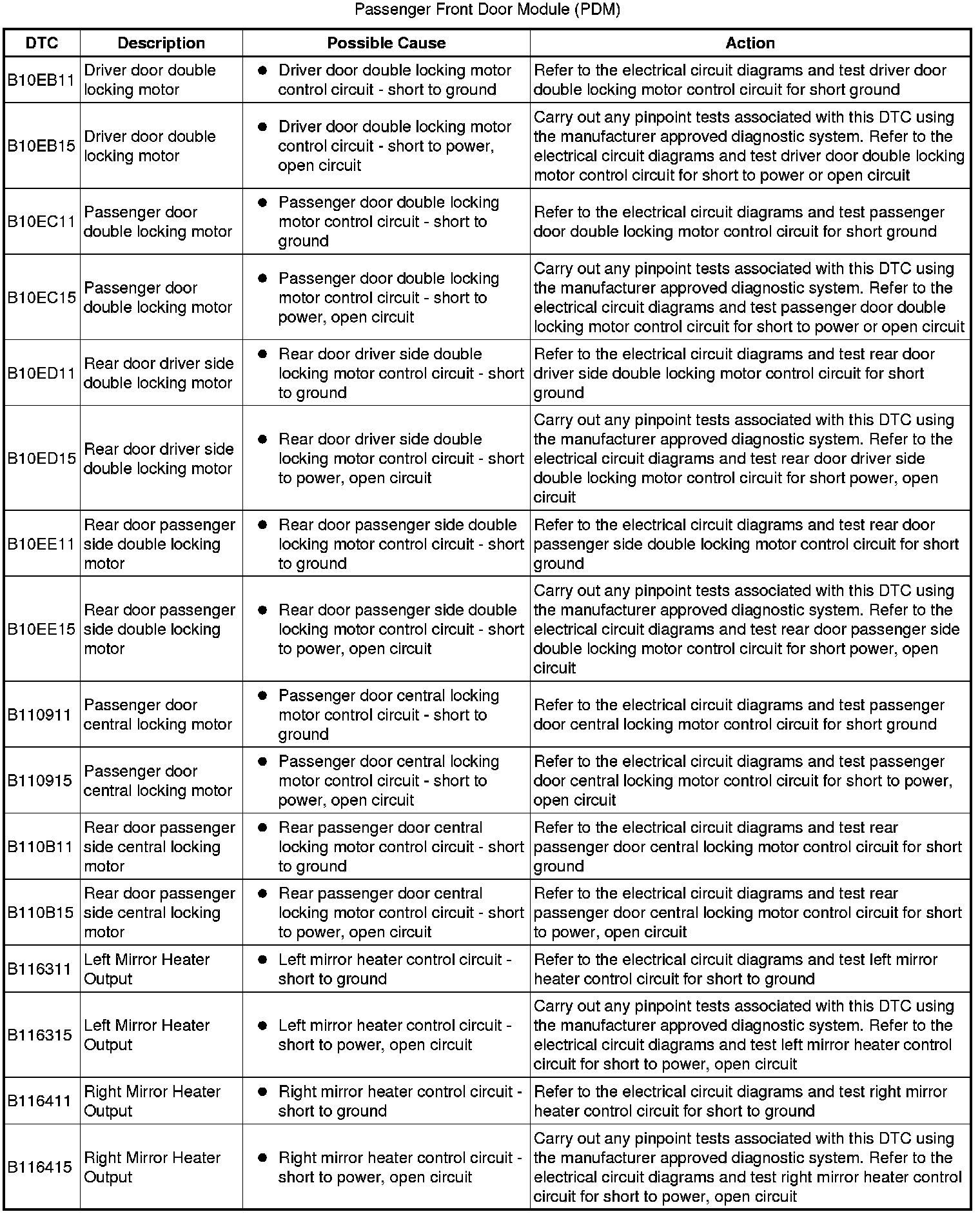

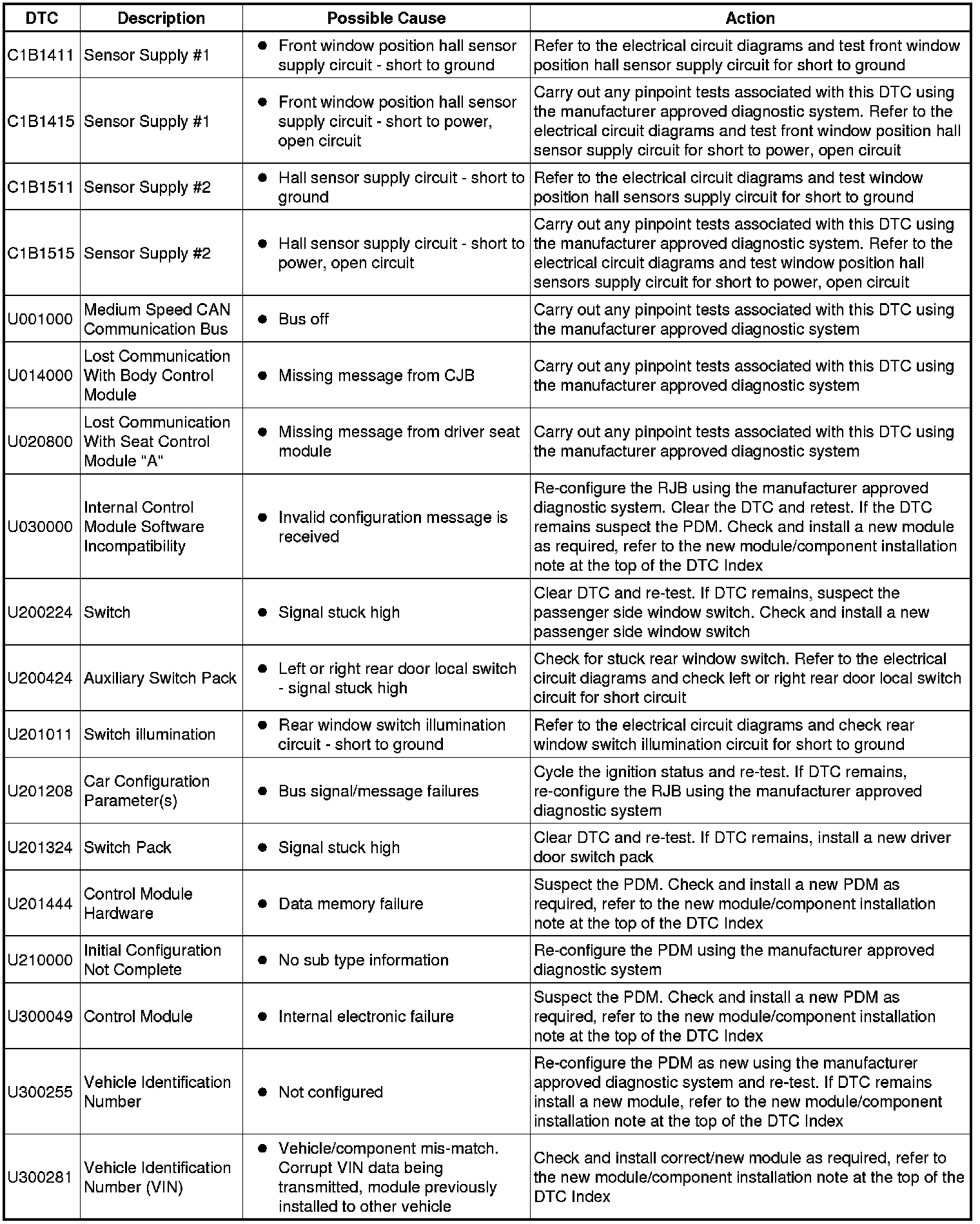

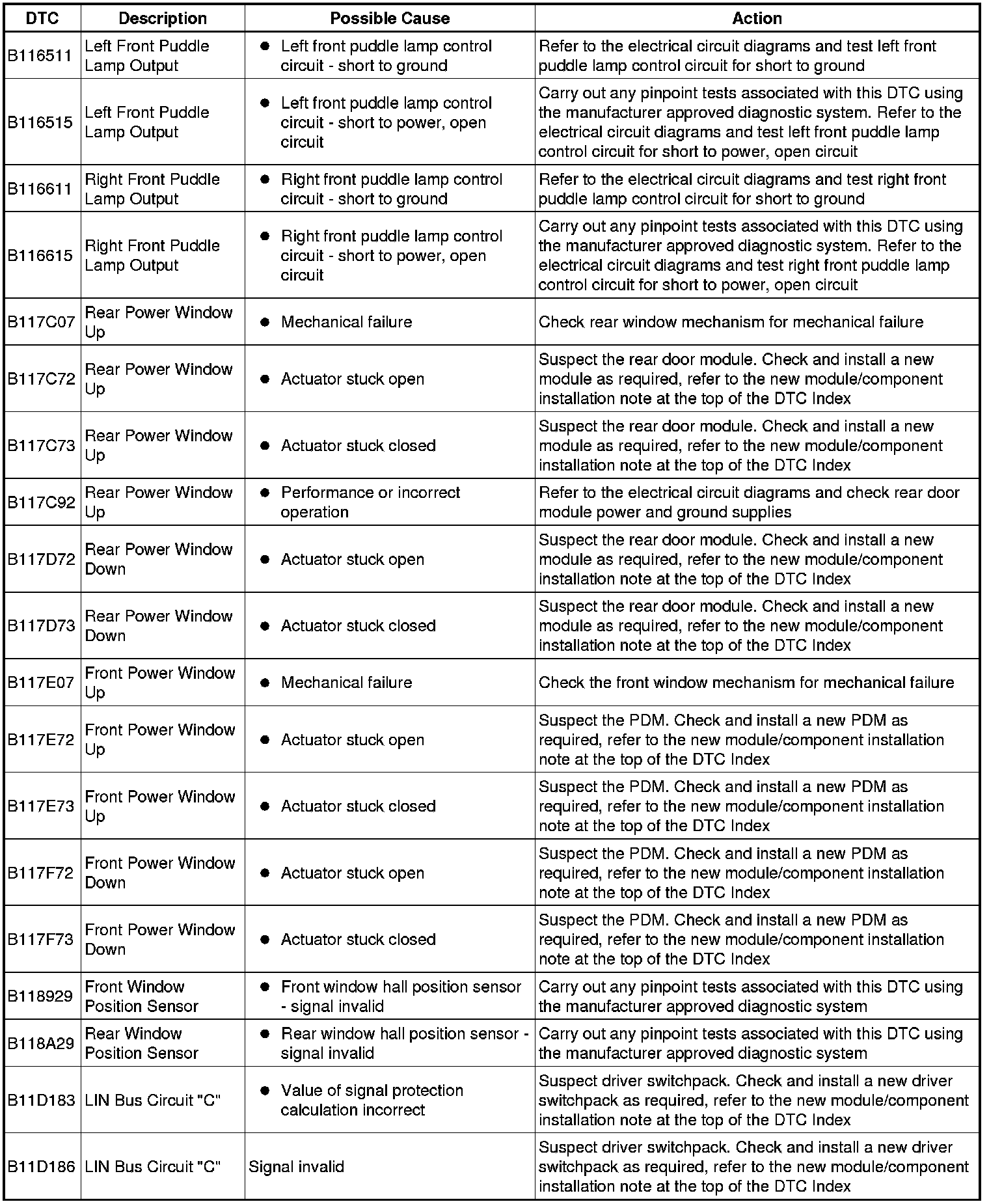

Diagnostic Trouble Code (DTC) Index
Passenger Front Door Module (PDM)
