Electronic Engine Controls
Electronic Engine Controls
Electronic Engine Controls

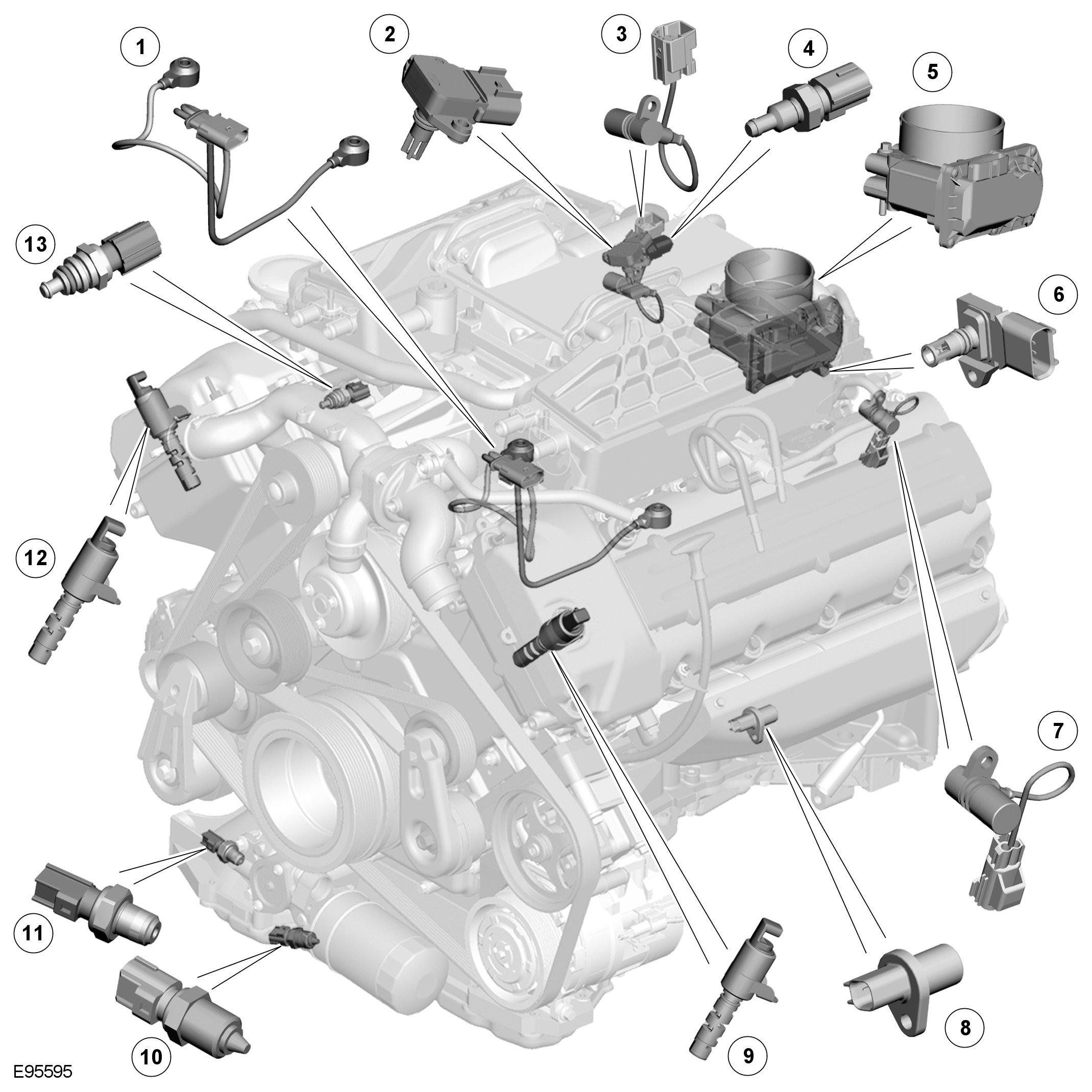

COMPONENT LOCATION SHEET 1 OF 2
Naturally Aspirated
