Navigation Module: Locations



Navigation System Module

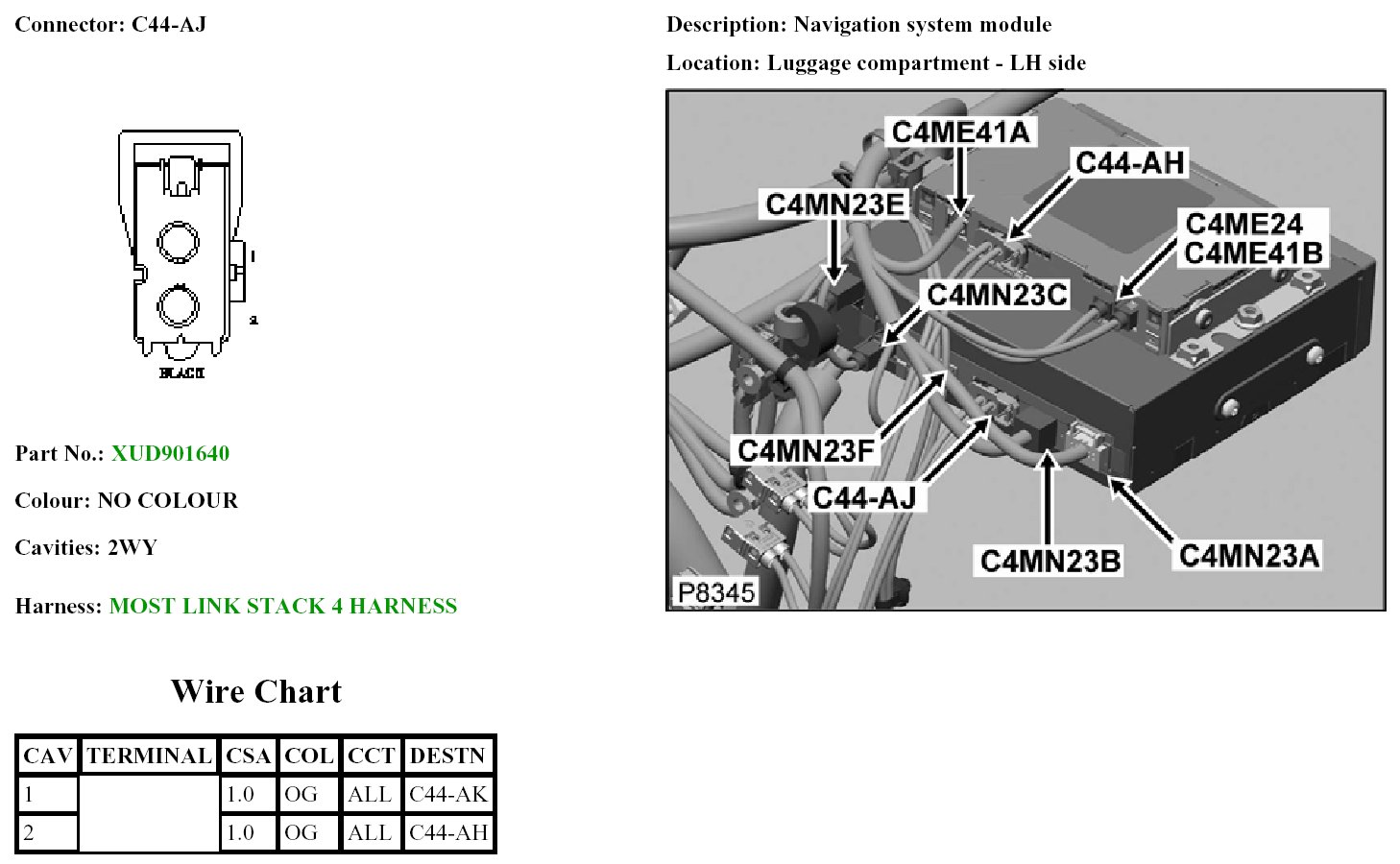

C44-AJ:

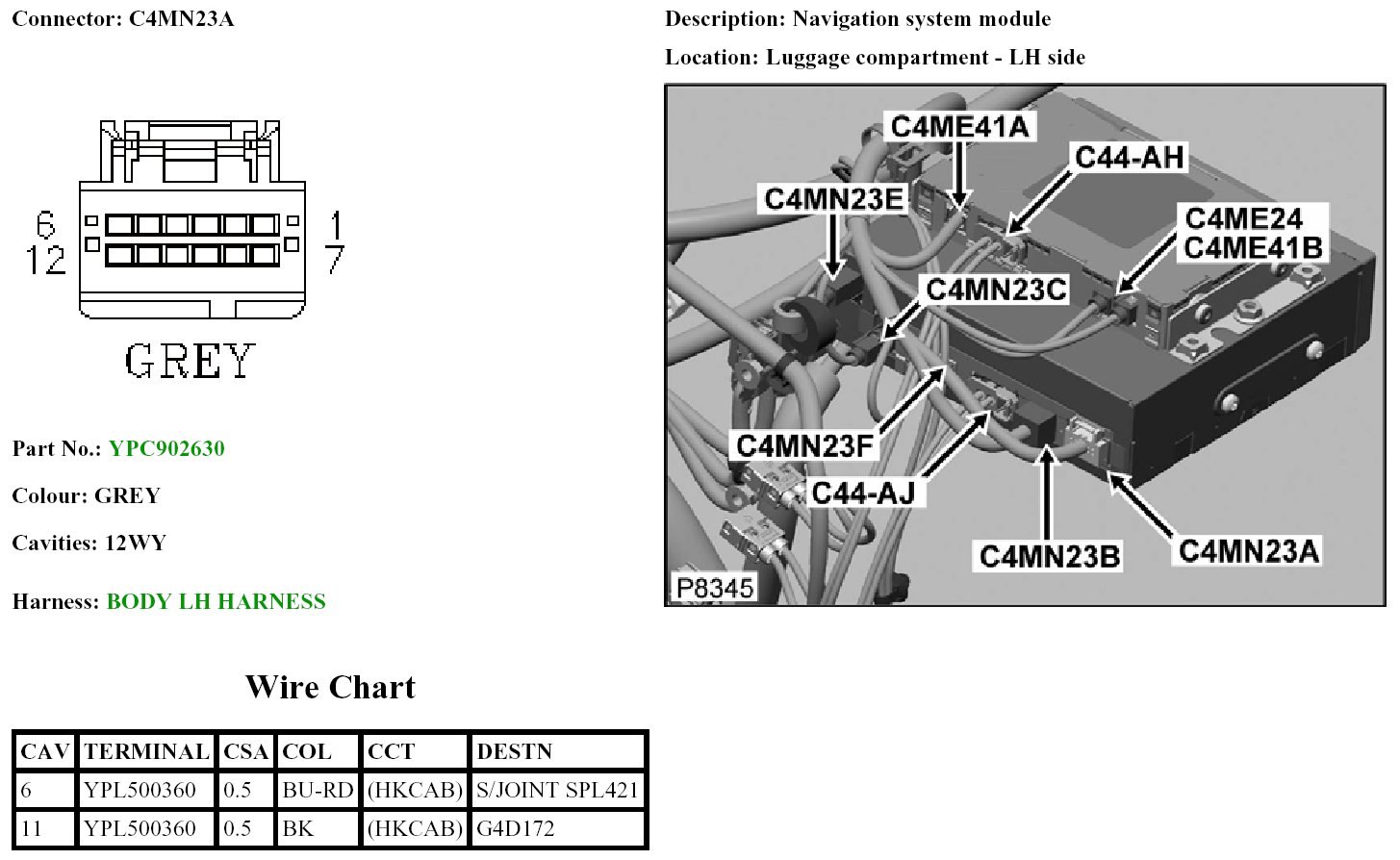

C4MN23A:




C4MN23B:

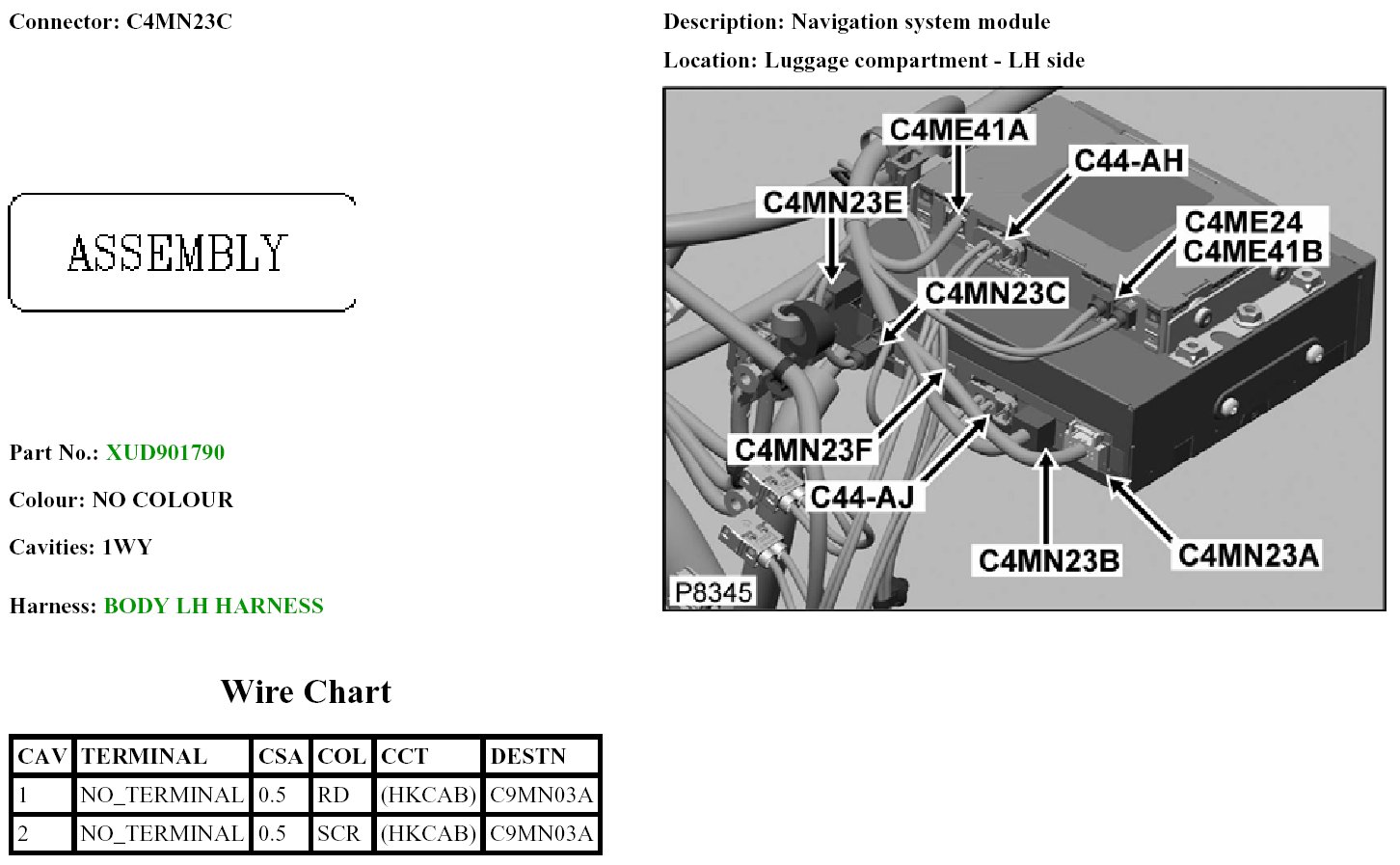

C4MN23C:

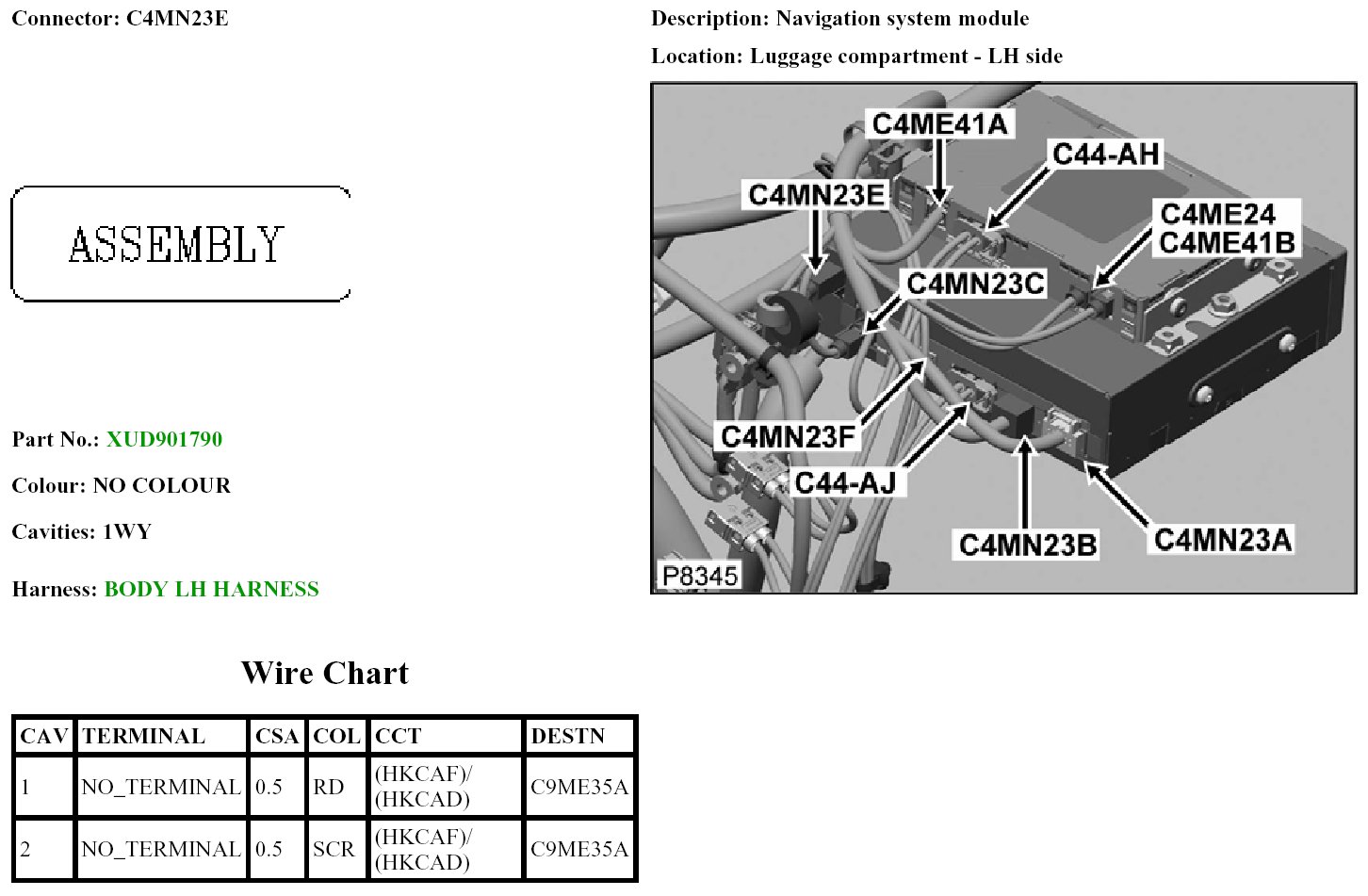

C4MN23E:

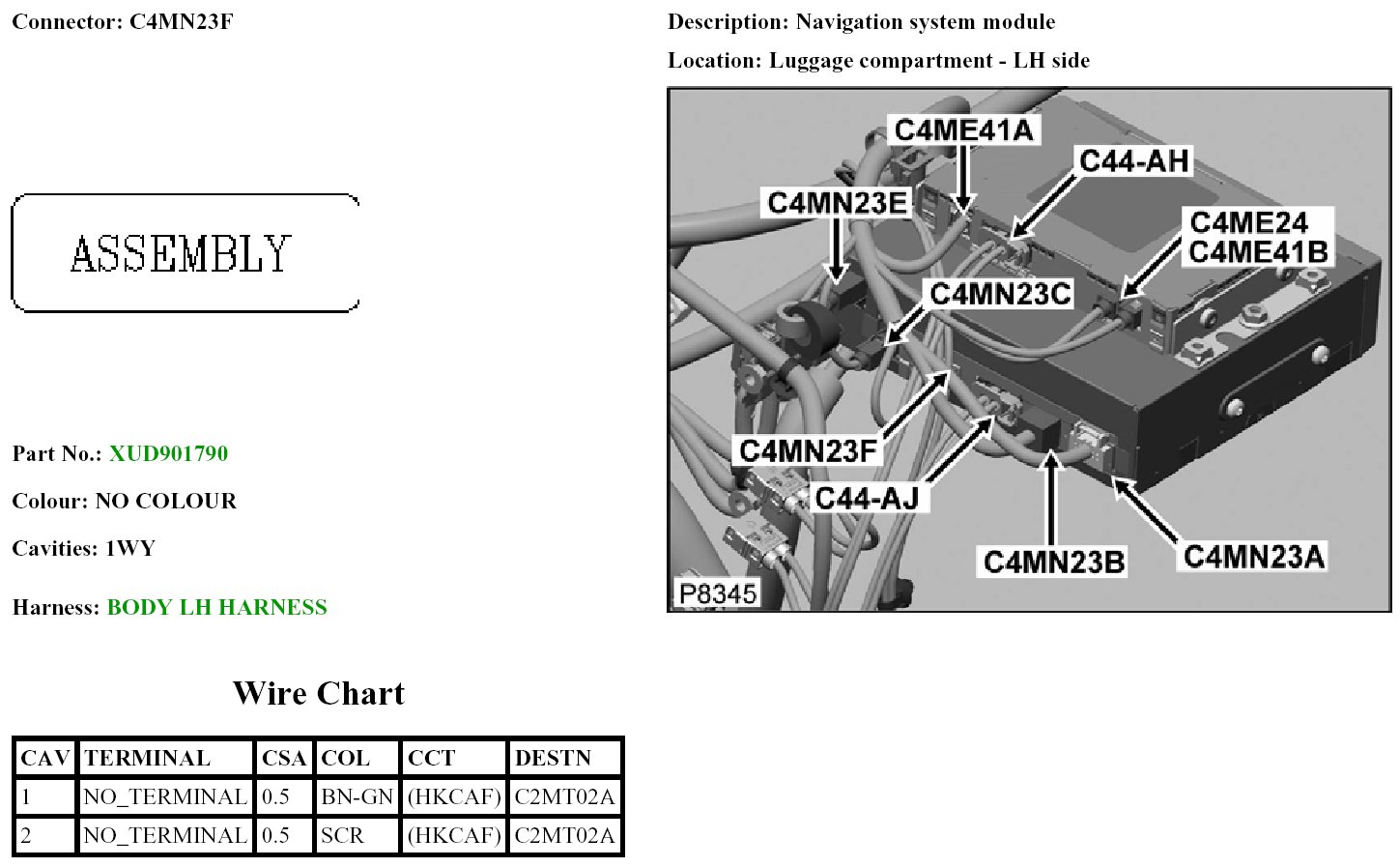

C4MN23F:
