FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Jaguar
>>
2009
>>
XF (X250) V8-4.2L SC
>>
Repair and Diagnosis
>>
Accessories and Optional Equipment
>>
Entertainment Systems
>>
Entertainment System Control Module
>>
Locations
Entertainment System Control Module: Locations
Information and Entertainment Control Module

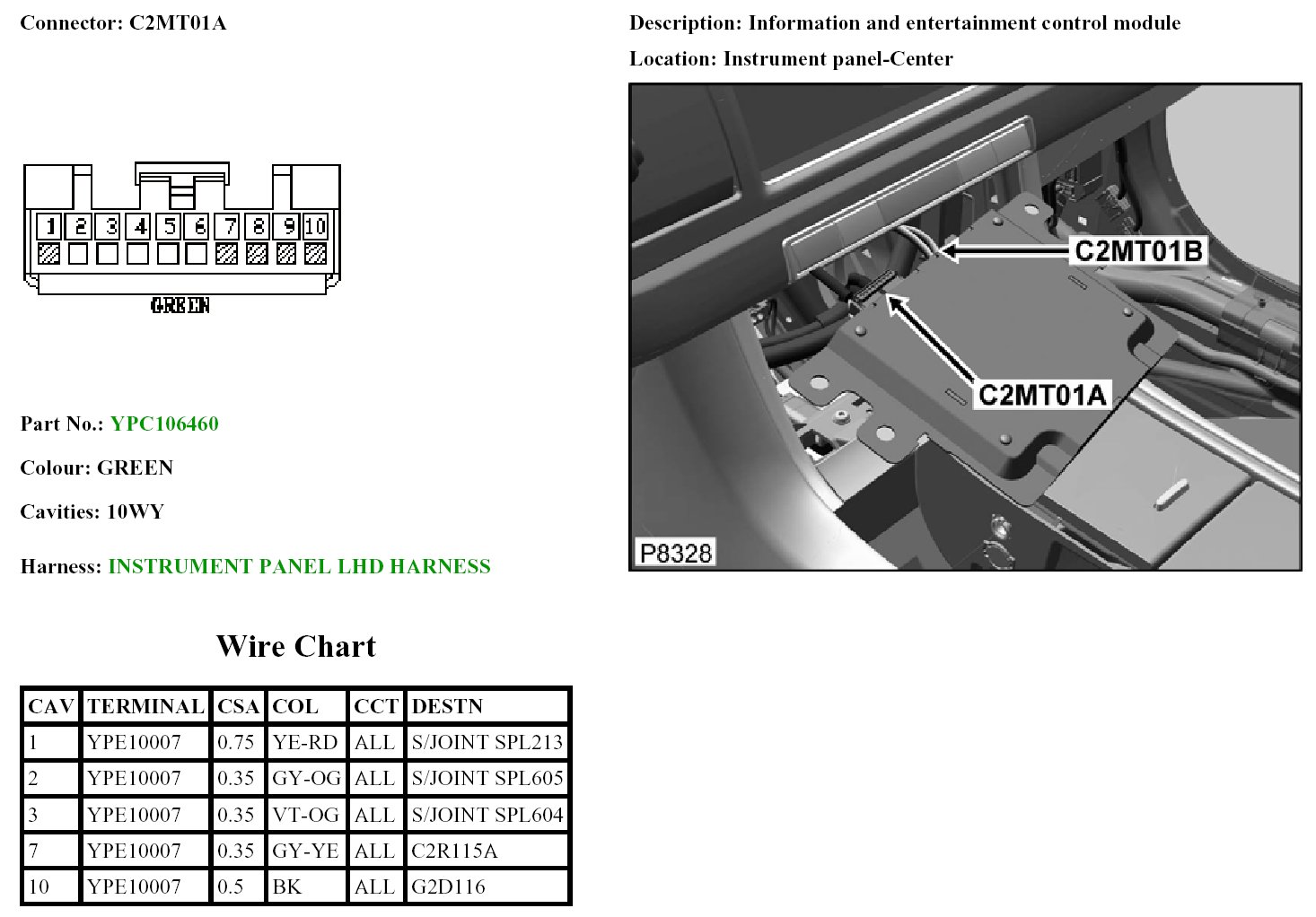

C2MT01A:

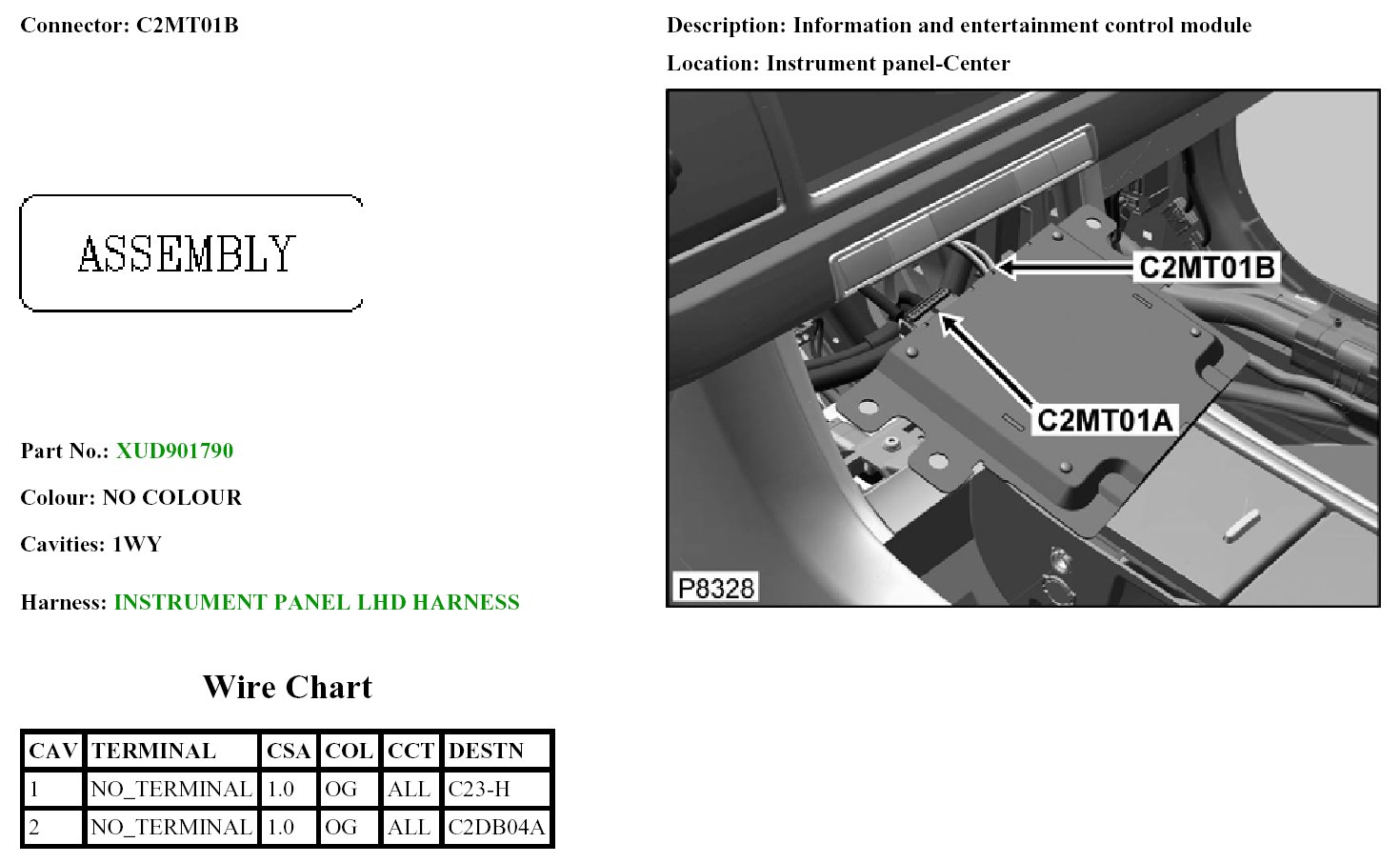

C2MT01B:
