Home >> Jaguar >> 2007 >> XK (X150) V8-4.2L SC >> Repair and Diagnosis >> Body and Frame >> Locks >> Keyless Entry >> Keyless Entry Module >> Locations

Keyless Entry Module: Locations

CA074:

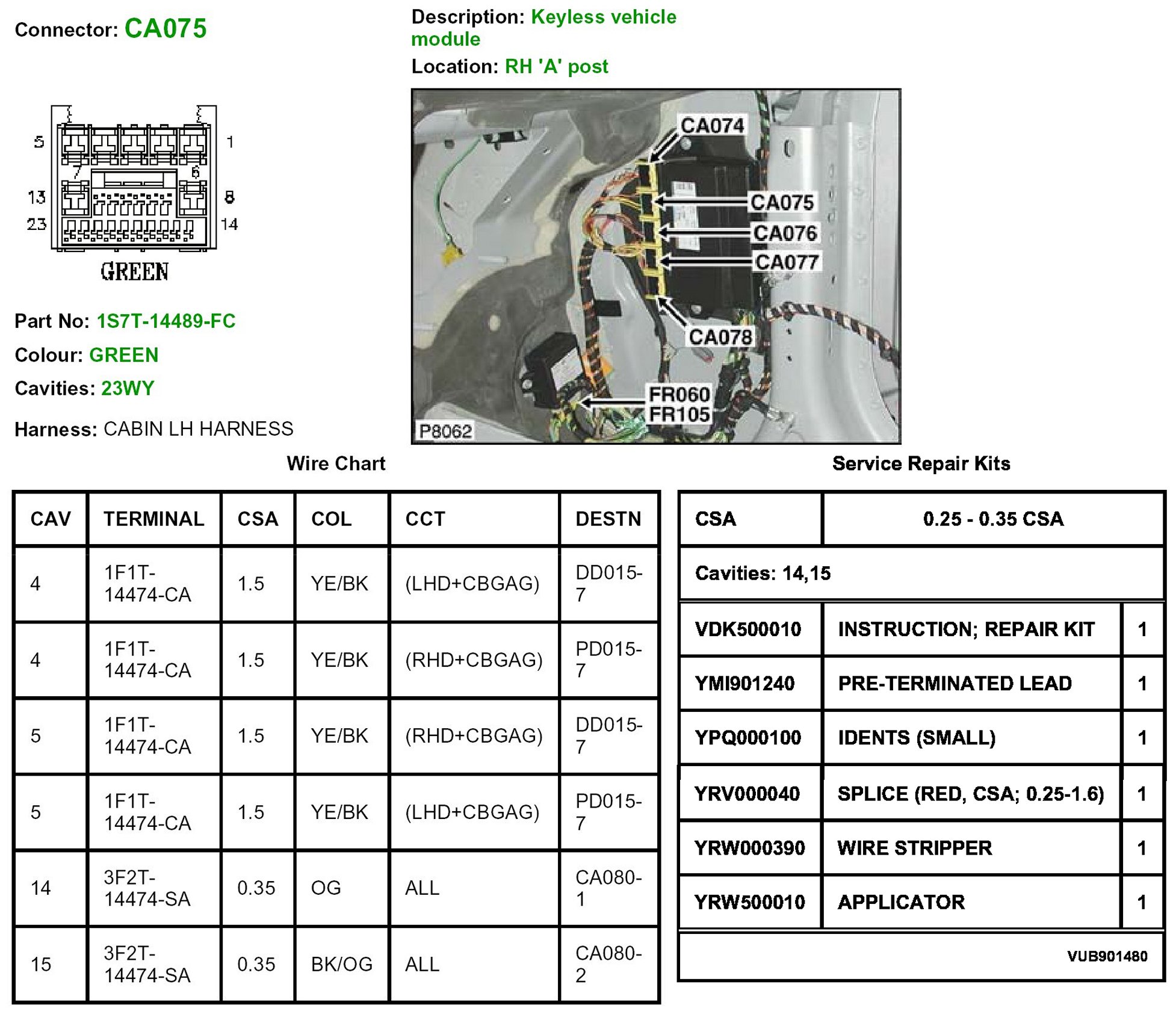

CA075:

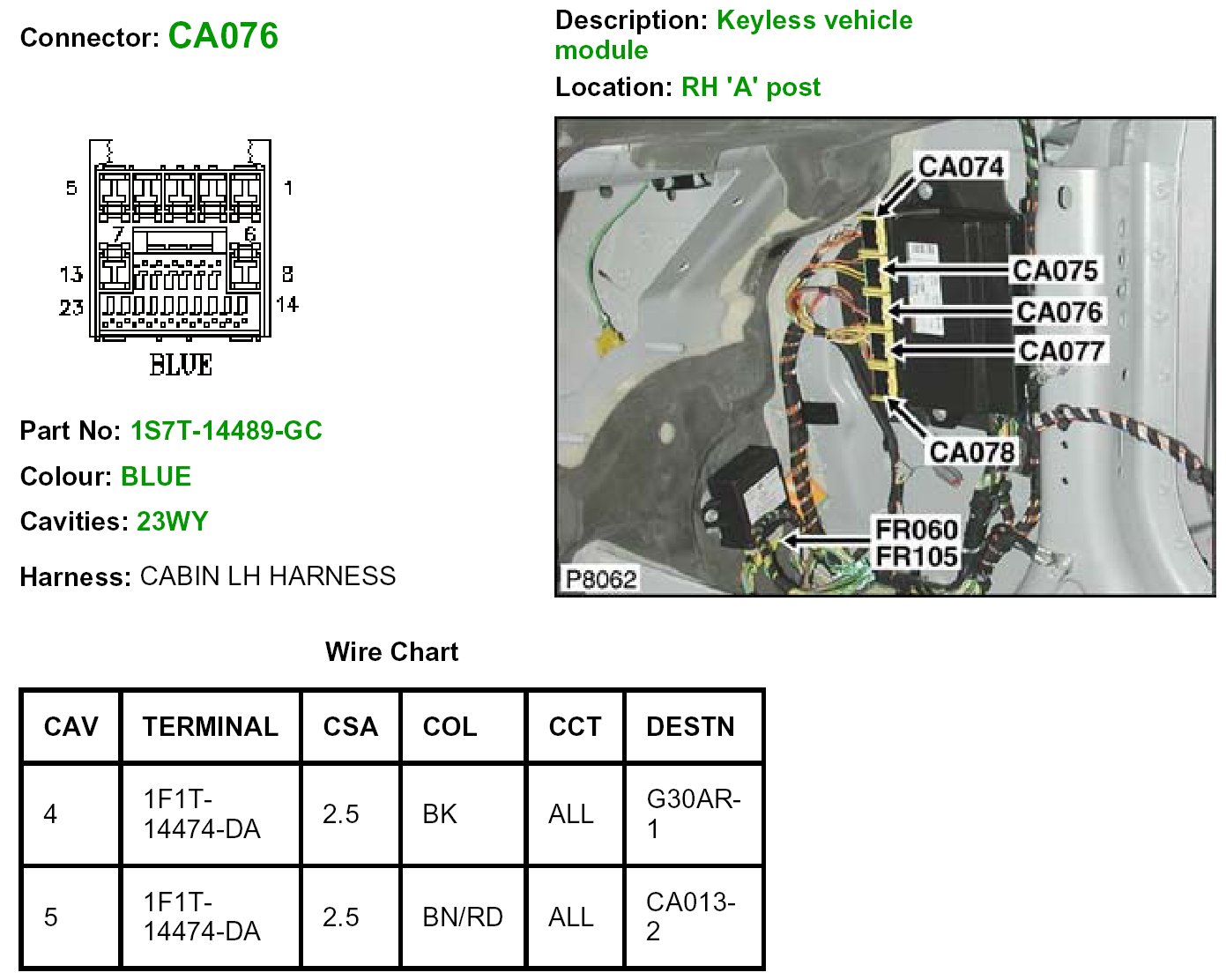

CA076:

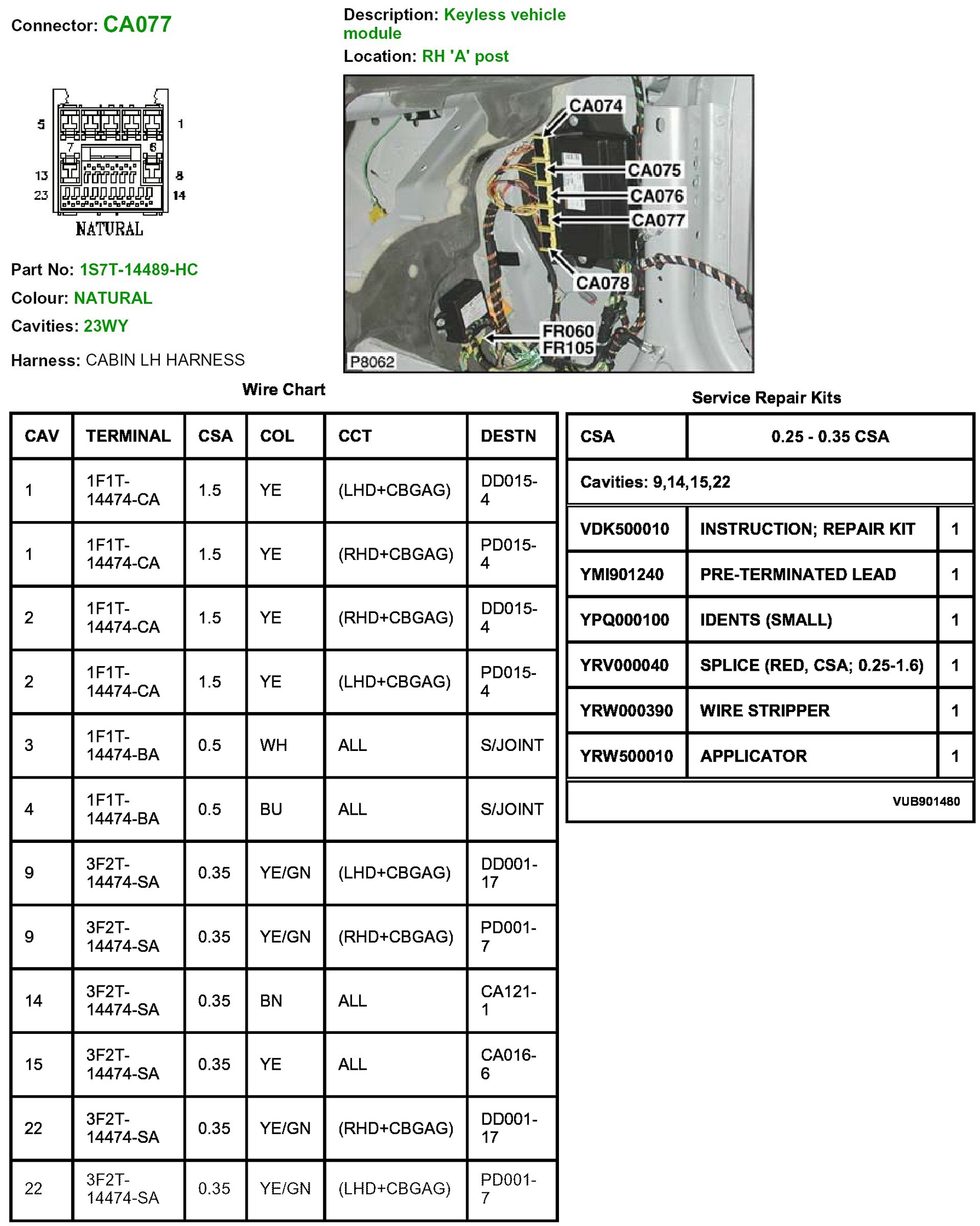

CA077:



CA078:
