Home >> Jaguar >> 2007 >> XK (X150) V8-4.2L SC >> Repair and Diagnosis >> Accessories and Optional Equipment >> Navigation System >> Navigation Module >> Locations

Navigation Module: Locations

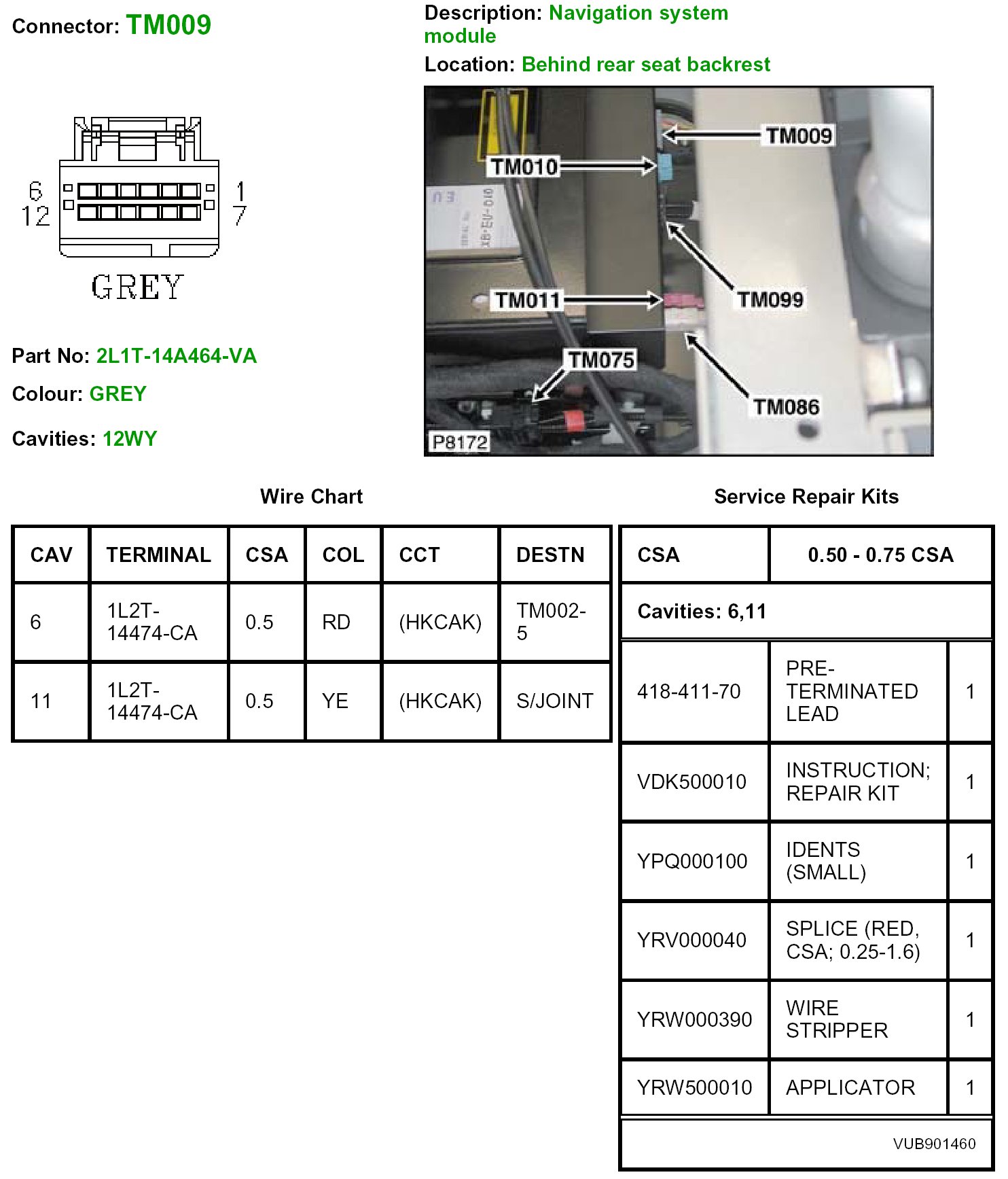

TM009:

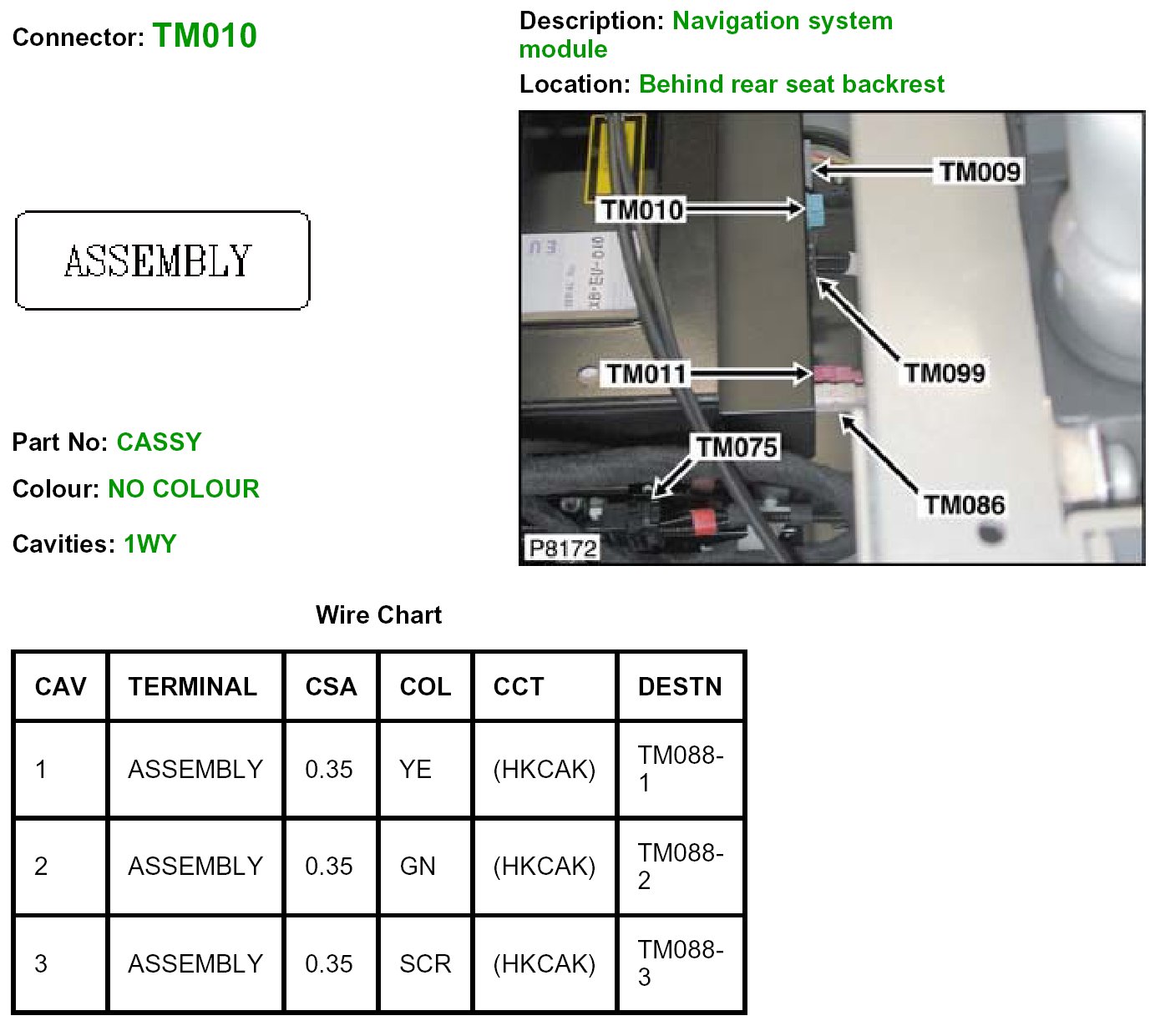

TM010:



TM011:

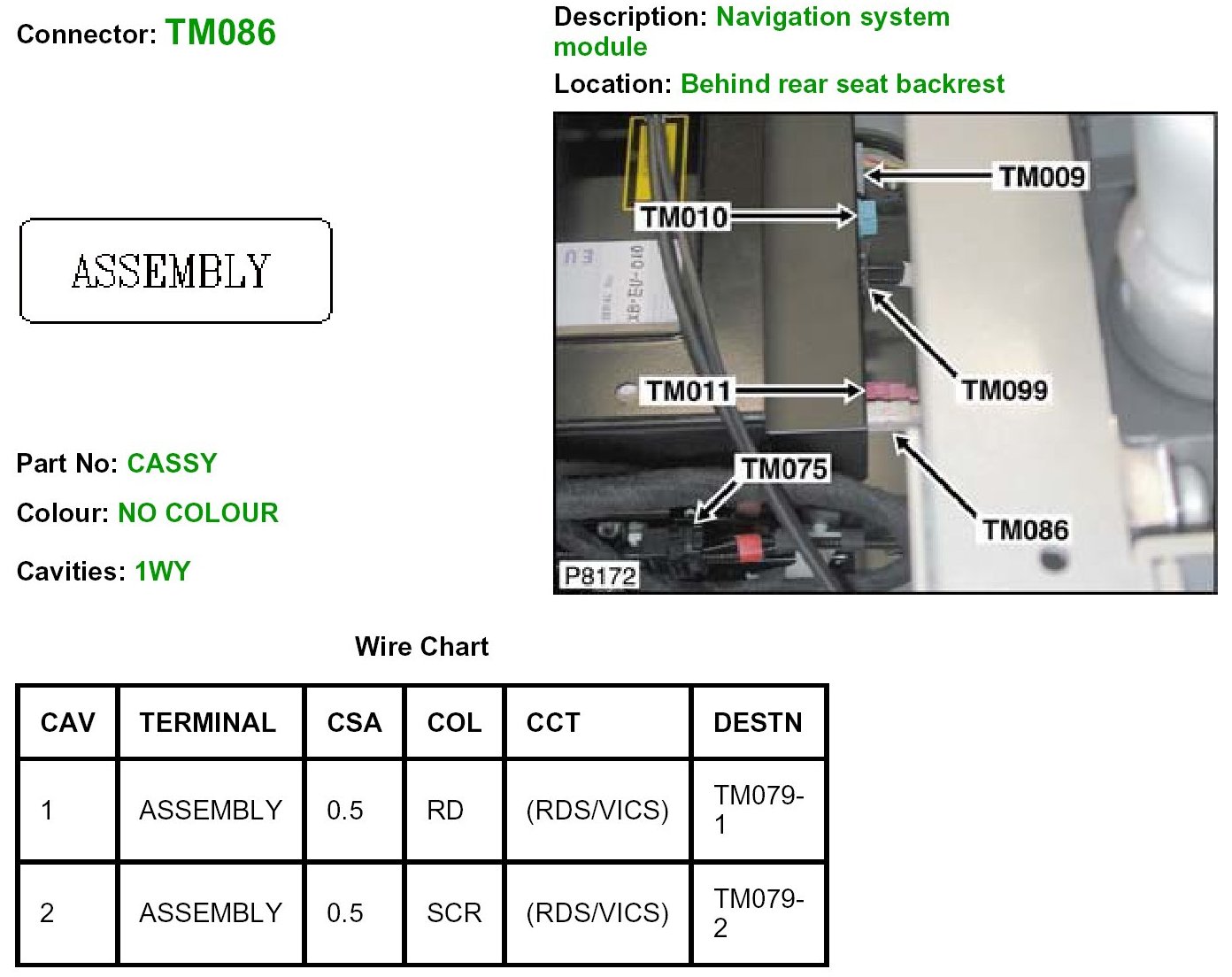

TM086:

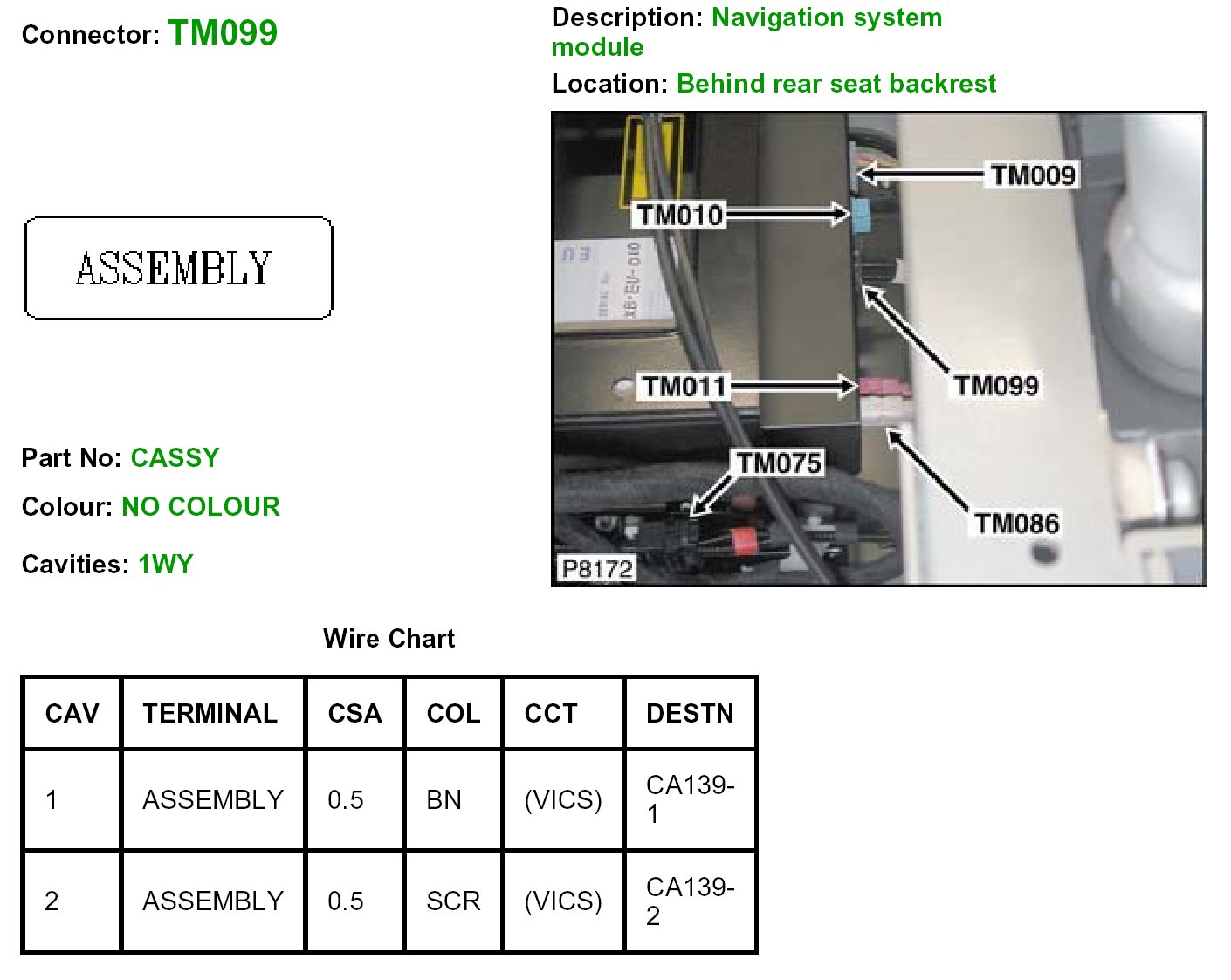

TM099:
