Home >> Jaguar >> 2007 >> XJ (X350) V8-4.2L SC >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Fuel Tank Pressure Sensor >> Locations

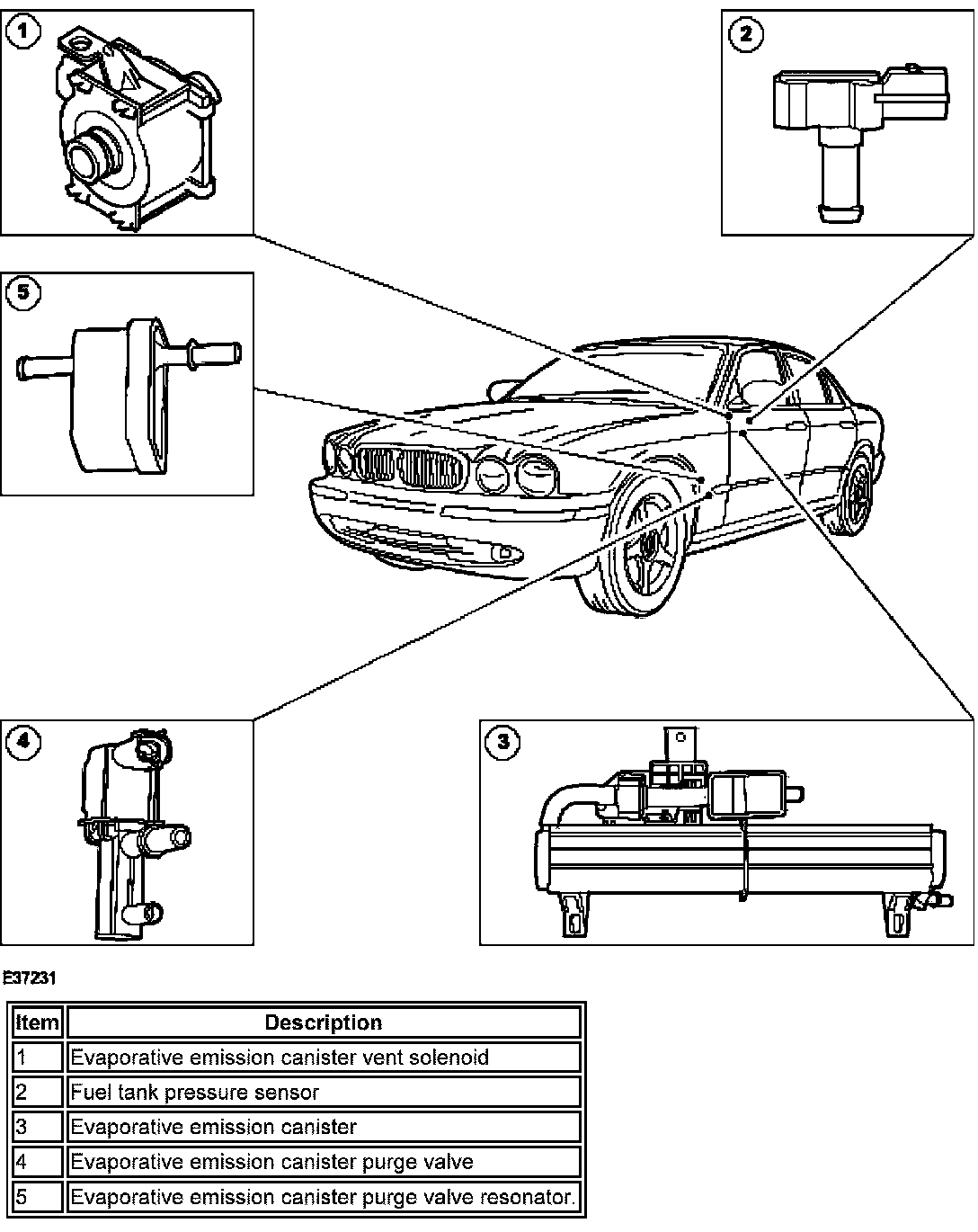

Fuel Tank Pressure Sensor: Locations

Evaporative Emission - VIN Range: G00442->G45703:
