Automatic Transmission/Transaxle

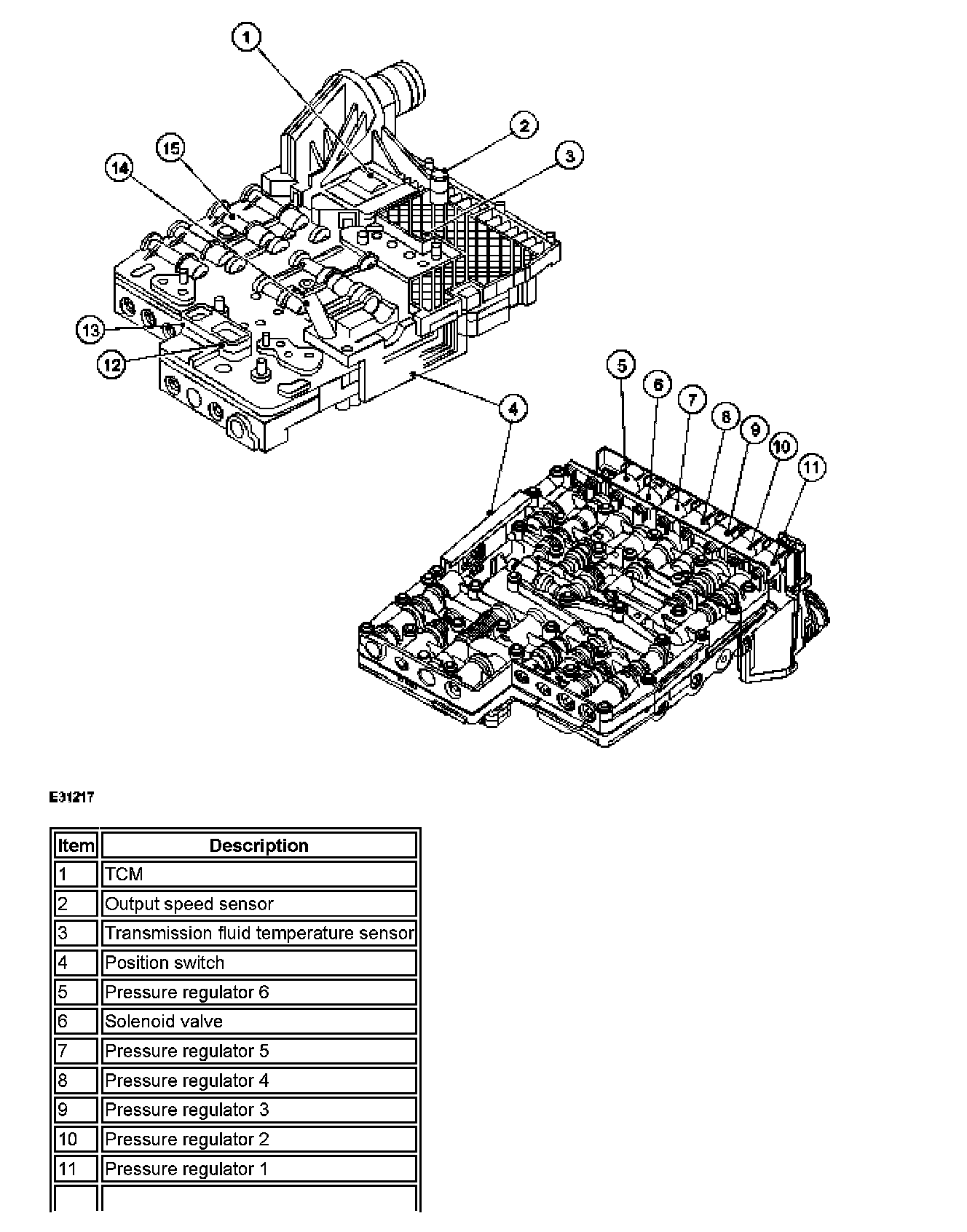

Transmission Control Module (TCM) and Main Control Valve Body




Torque converter








Single Planetary Gearset





Double Planetary Gearset





Shift Elements





Multi Plate Clutch








Fluid Pump
