Variable Valve Timing Solenoid: Locations

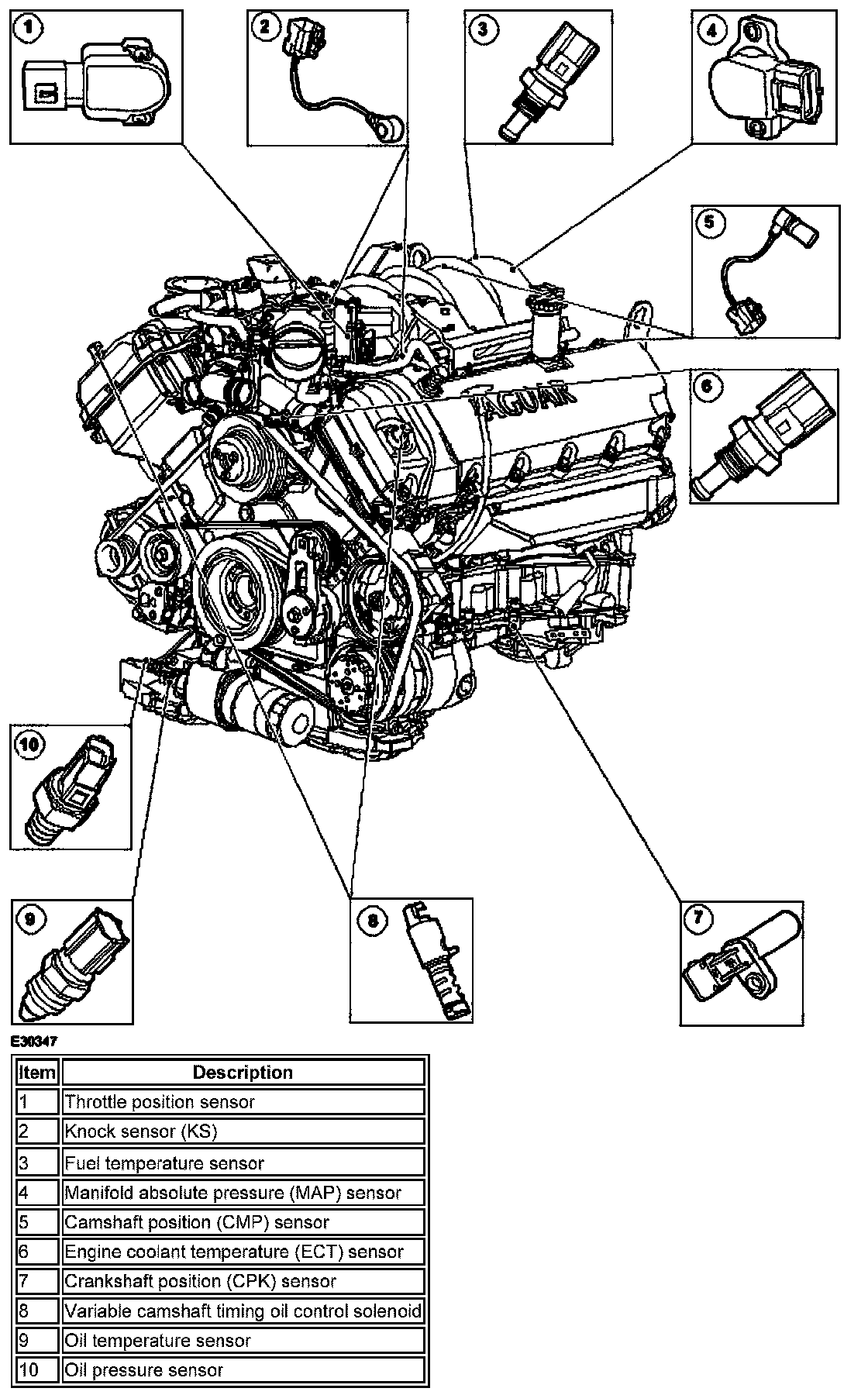

Electronic Engine Controls Part 1:

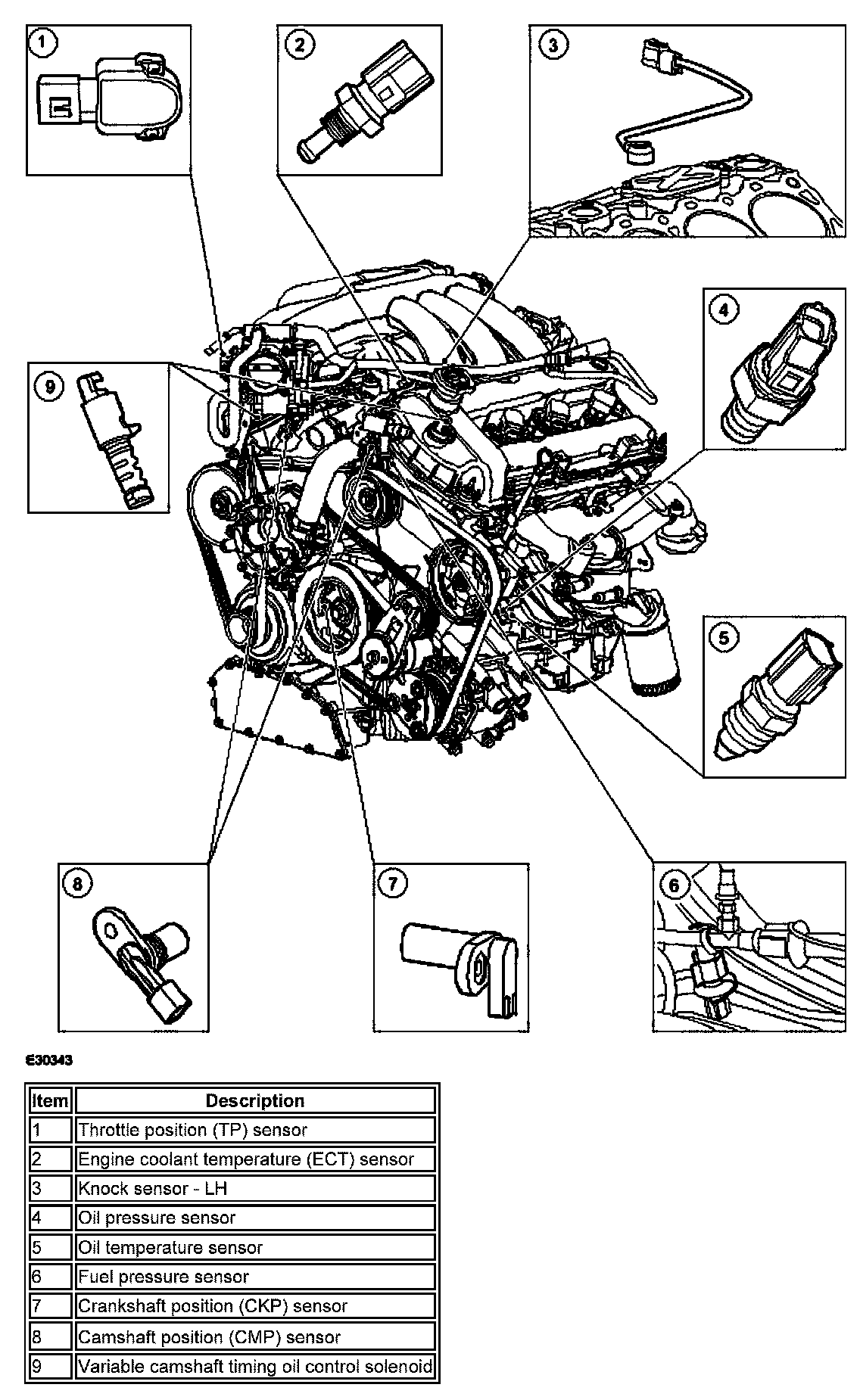

Electronic Engine Controls Part 2:

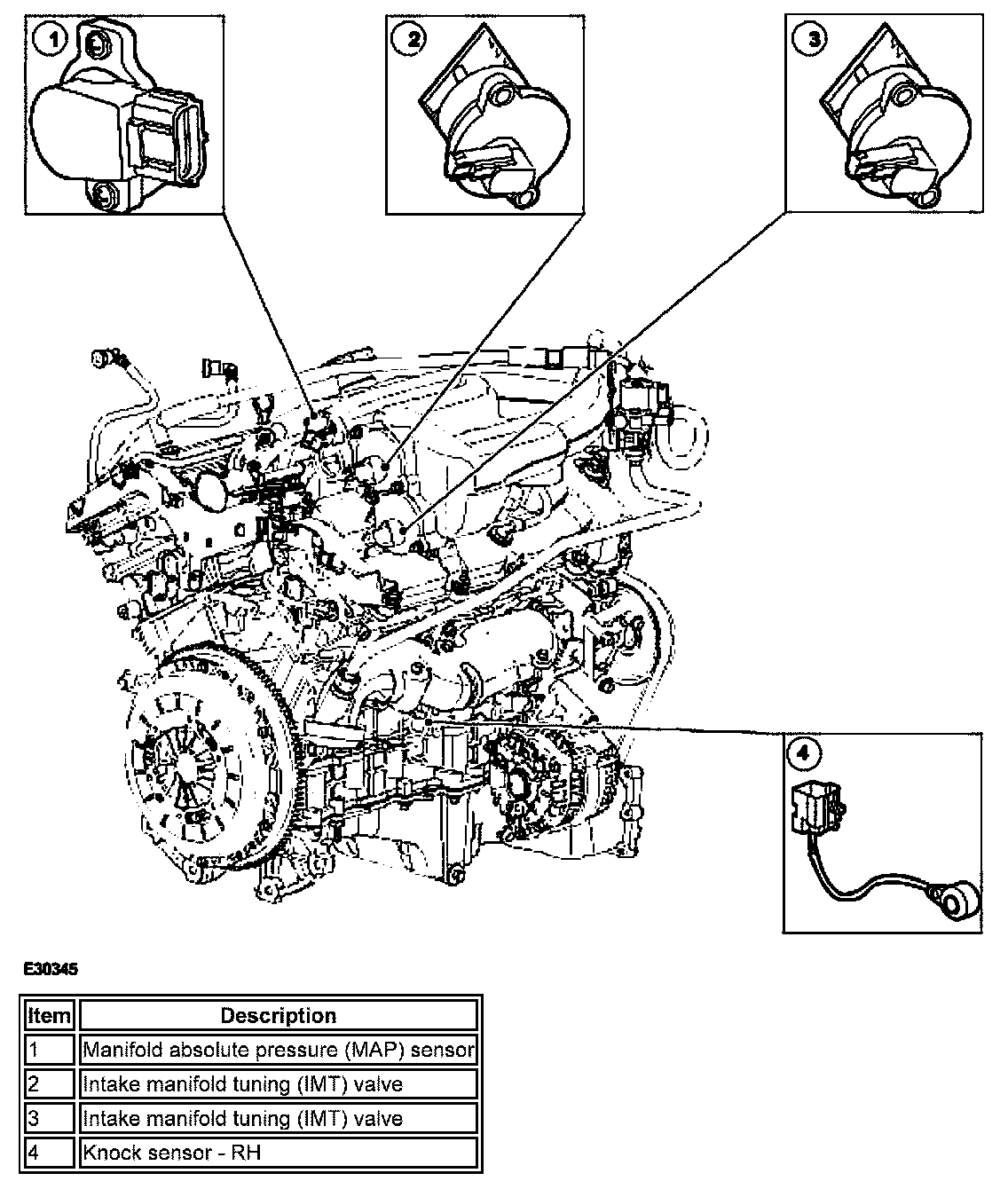

Electronic Engine Controls - Vehicle With Supercharger:

Electronic Engine Controls - Vehicle Without Supercharger Part 1:
