I7 Check Output Speed Sensor Coil Continuity

I7 CHECK OUTPUT SPEED SENSOR COIL CONTINUITY

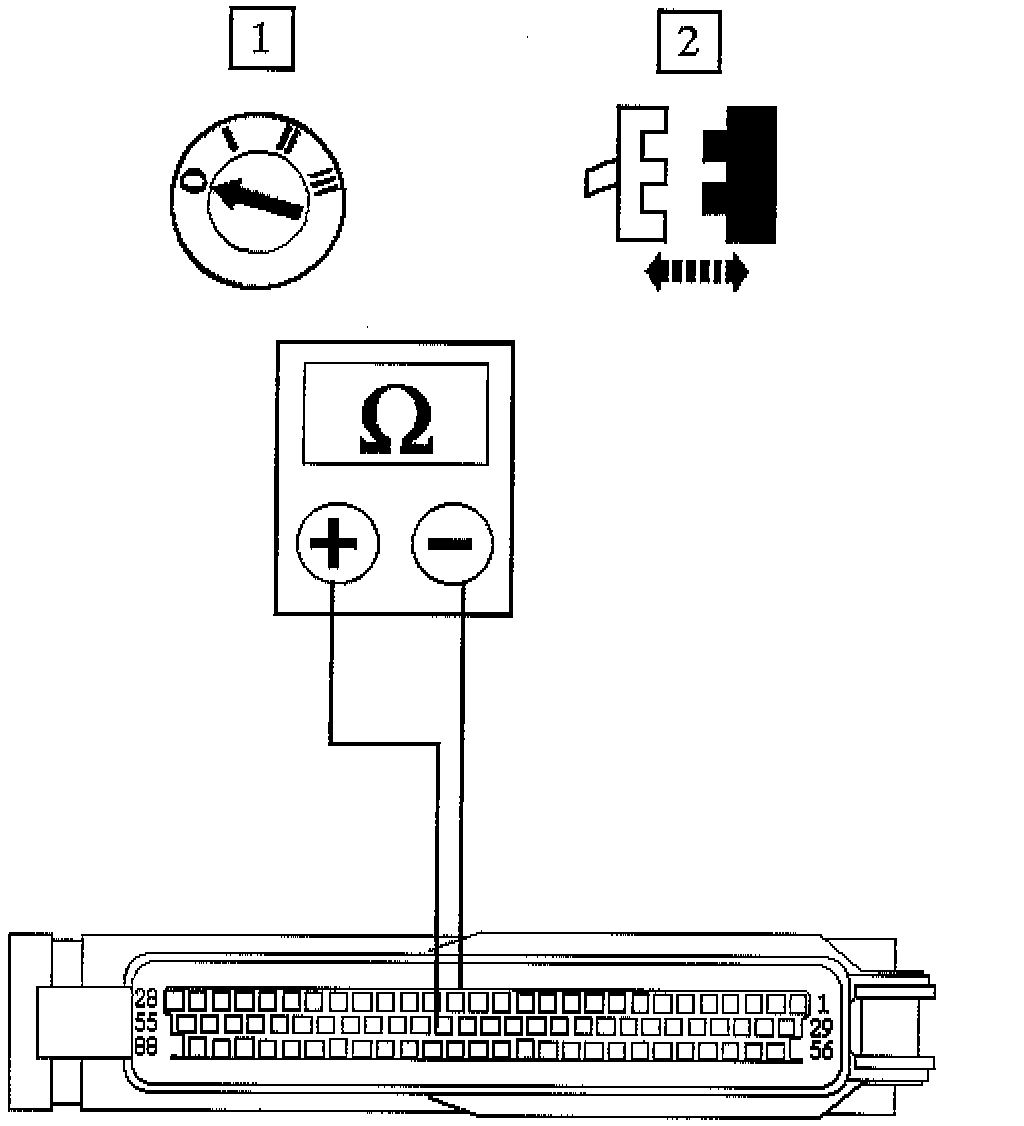

1. Turn ignition switch to the OFF position.
2. Disconnect the harness connector.
3. With, EM007 disconnected, measure the sensor value between EM007/016 and EM007/044.
- Is the resistance between 280 and 1200 ohms?
Yes --> GO to [I8] I8 Check For Short To B+
No --> Renew the output speed sensor
