I2 Check Harness +VE Continuity (Input Speed Sensor)

CHECK HARNESS +VE CONTINUITY (INPUT SPEED SENSOR)

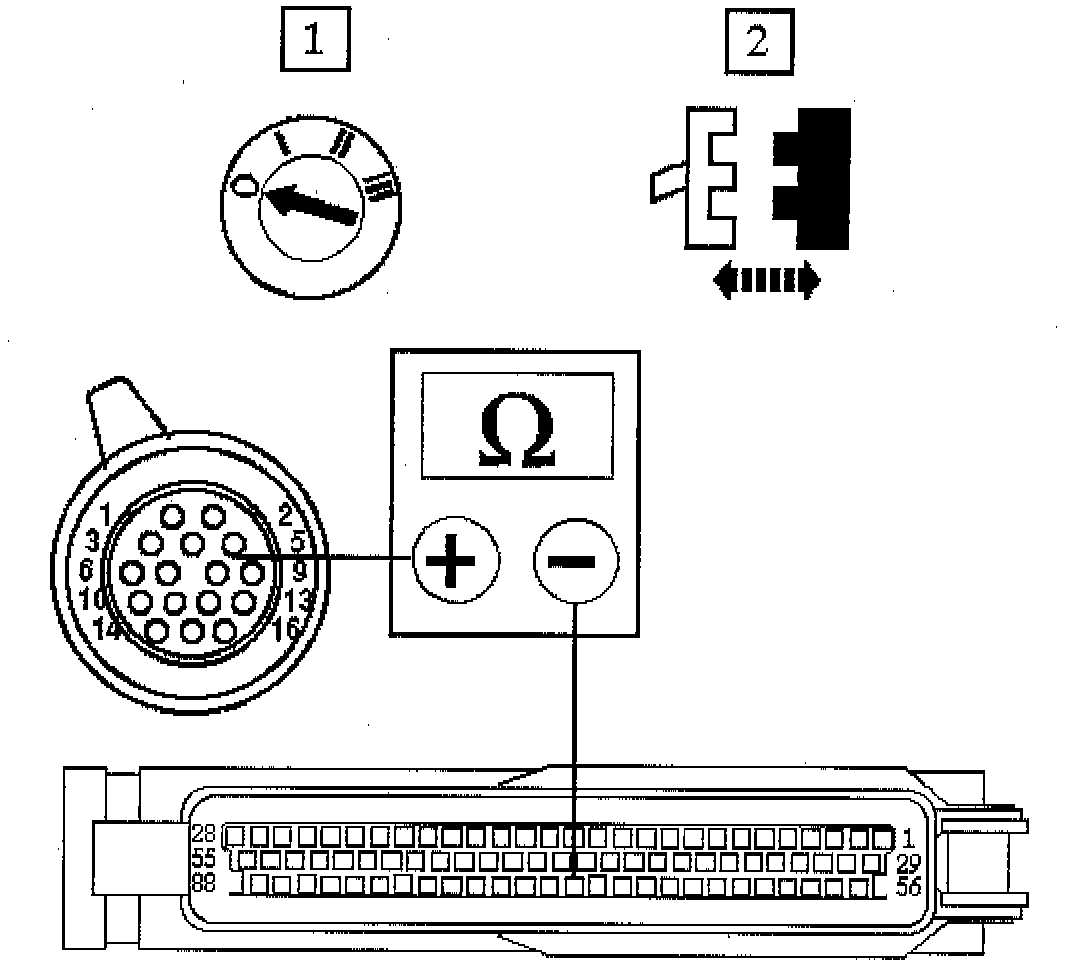

1. Turn ignition switch to the OFF position.
2. Disconnect the harness connector.
3. With EM007 and EM046 disconnected, measure the resistance between EM046/005 and EM007/042.
- Is the resistance less than 0.5 ohms?
Yes --> Reconnect EM046, GO to [I3]. I3 Check Harness -VE Continuity (Input Speed Sensor)
No --> Inspect EM007 and EM046 for corrosion, bent / pushed back pins or locate and repair the harness Test the system for normal operation.
