F4 Check Input Speed Sensor Coil Continuity

F4 CHECK INPUT SPEED SENSOR COIL CONTINUITY

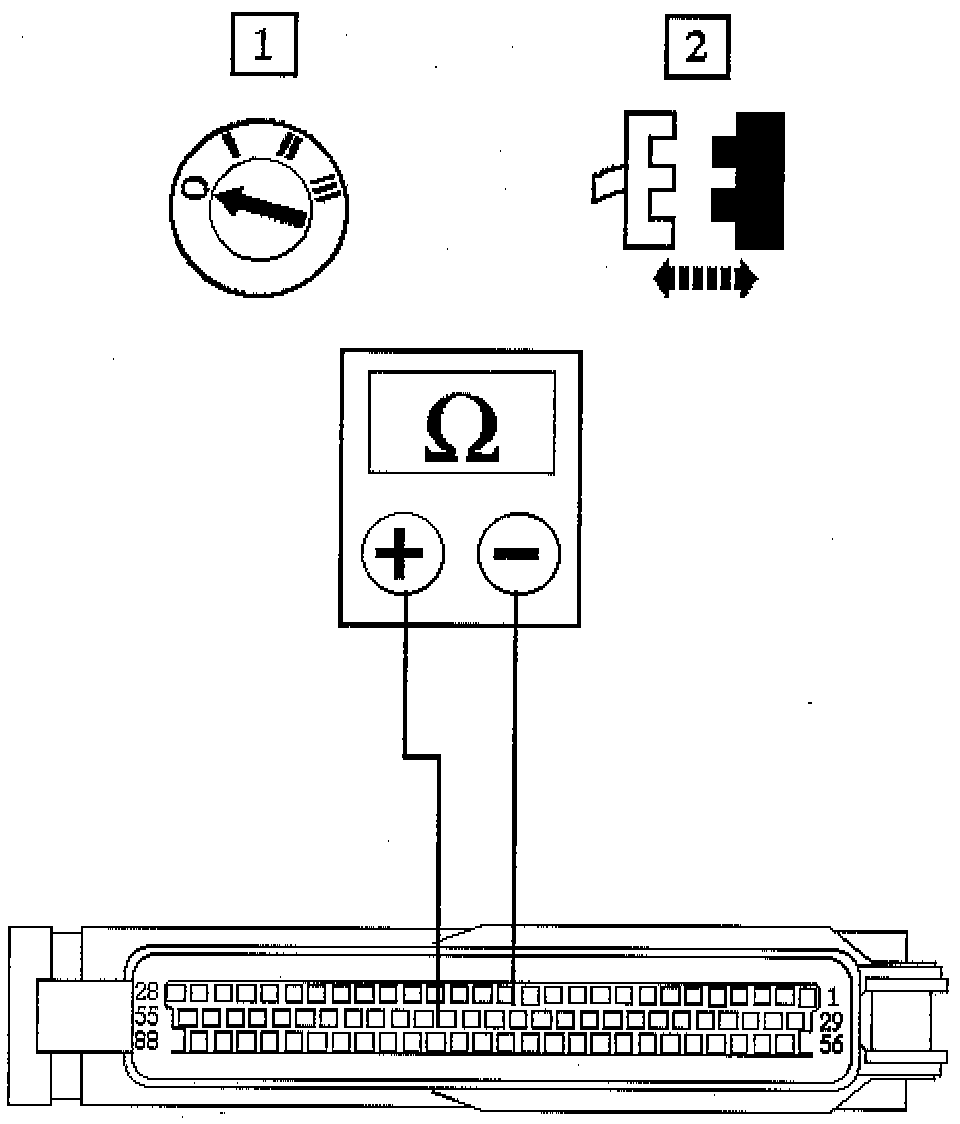

1. Turn the ignition switch to the OFF position.
2. Disconnect the harness connector.
3. With, EM007 disconnected, measure the sensor value between EM007/042 and EM007/014.
- Is the resistance between 280 and 1200 ohms?
Yes --> GO to [F5] F5 Check For Short To B+
No --> Renew the input speed sensor
