C6 Check For Short to Ignition

C6 CHECK FOR SHORT TO IGNITION

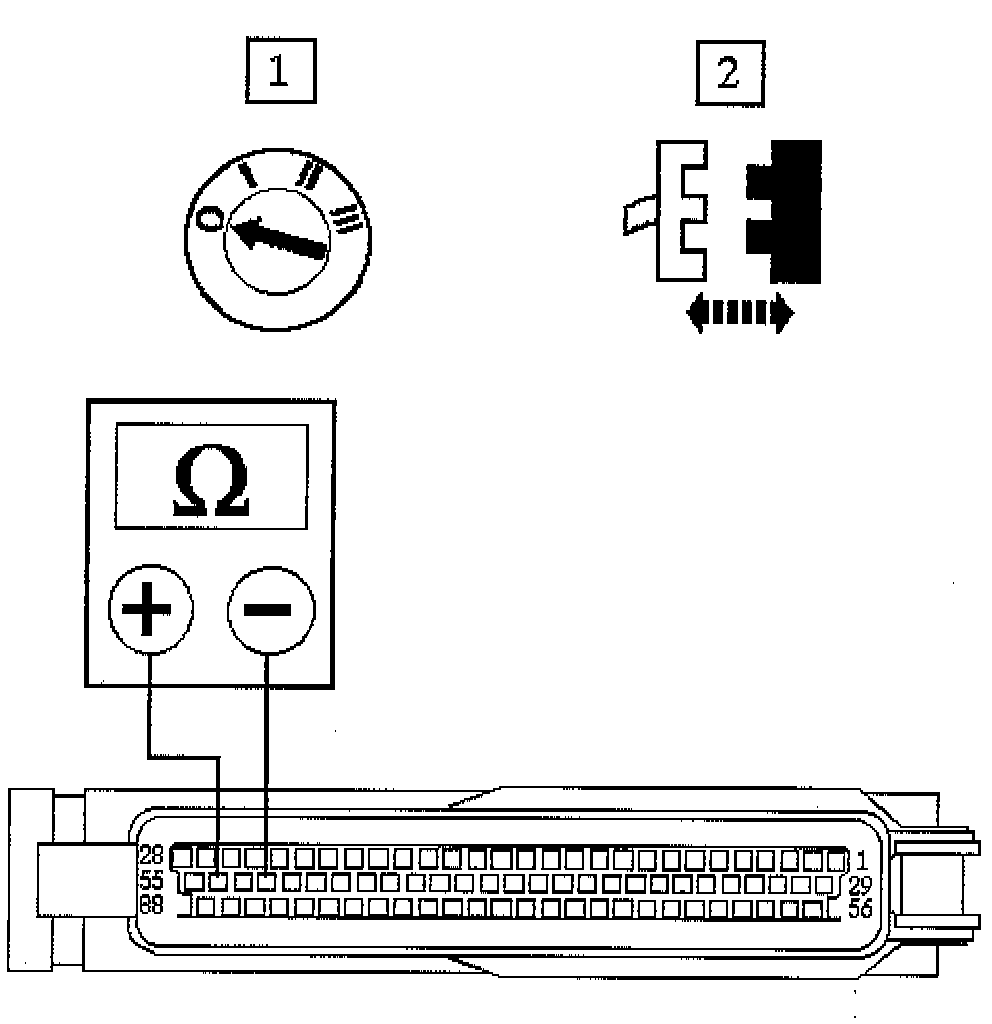

1. Turn the ignition switch to the OFF position.
2. Disconnect the harness connector.
3. With EM007 and EM046 disconnected, measure the resistance between EM007/052 and EM007/054.
4. Repeat for EM007/053 and EM007/054.
- Greater than 1O M ohms?
Yes --> GO to [C7] C7 Check Harness Continuity - Solenoid
No --> Inspect EM007 for corrosion, bent / pushed back pins or locate and repair the harness. Test the system for normal operation.
