B3 Check Harness Signal Continuity

B3 CHECK HARNESS SIGNAL CONTINUITY

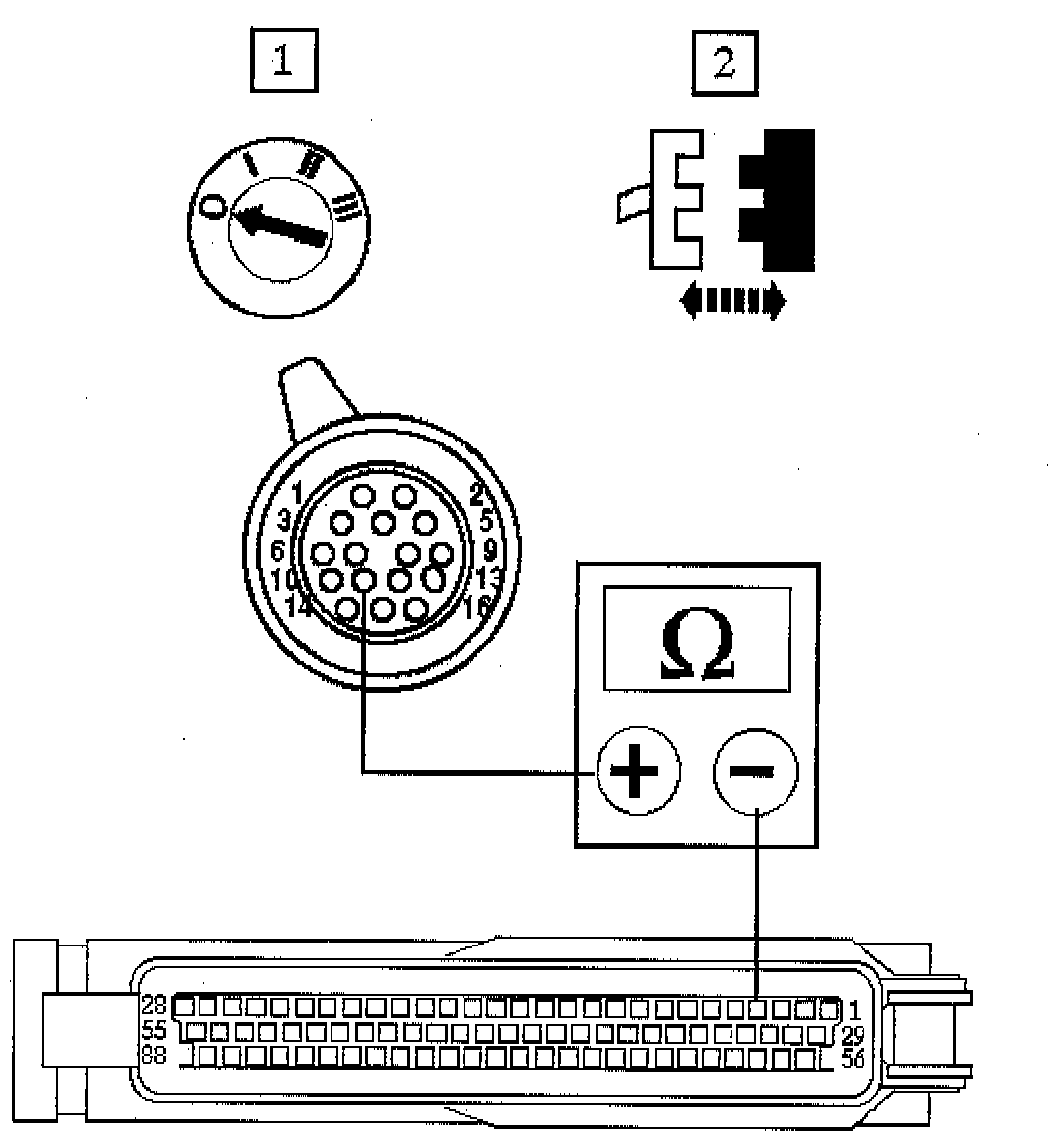

1. Turn the ignition switch to the off position.
2. Disconnect the harness connector.
3. With EM007 and EM046 disconnected, measure the resistance between EM046/011 and EM007/004.
- Is the resistance greater than 0.5 ohms?
Yes --> GO to [B4] B4 Check Harness +VE Continuity
No --> Inspect EM007 and EM046 for corrosion, bent/pushed back pins or locate & repair the harness. Test the system for normal operation.
