A7 Check Switch L1

A7 CHECK SWITCH L1

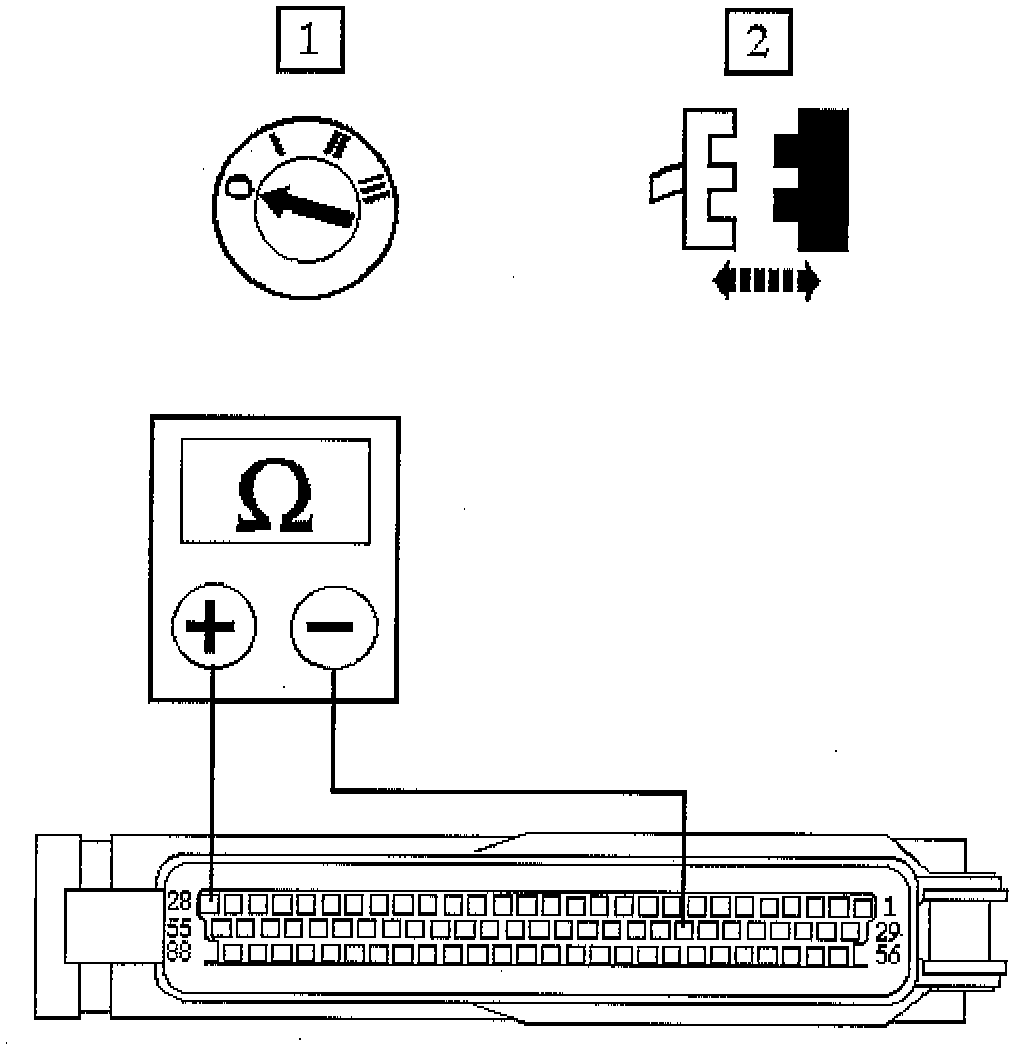

1. Turn the ignition switch to the OFF position.
2. Disconnect the harness connector.
3. With EM007 disconnected, measure the resistance between EM007/028 and EM007/036.
- With the selector lever at P. N. D, 4 is the resistance less than 0.5 ohms?
- With the selector lever at R. 3, 2 is the resistance greater than 50 K ohms?
Yes --> GO to [A8] A8 Check Switch L2
No --> Inspect EM007 and EM047 for corrosion, bent/pushed back pins or locate and repair the harness EM007/036 to EM047/OOA

- OK, but fault still present?
Yes --> Renew rotary position switch and test the system for normal operation.
