Major Gauge Module

Removal
1. Turn ignition key to position 'II', adjust steering column to lowest and fully extended position and turn ignition key to '0'.
2. Remove battery cover and disconnect ground cable from battery terminal. Service and Repair
3. Remove driver airbag. Air Bag
4. Remove steering wheel.
5. Remove driver side underscuttle.
6. Remove major gauge module. Major Gauge Module

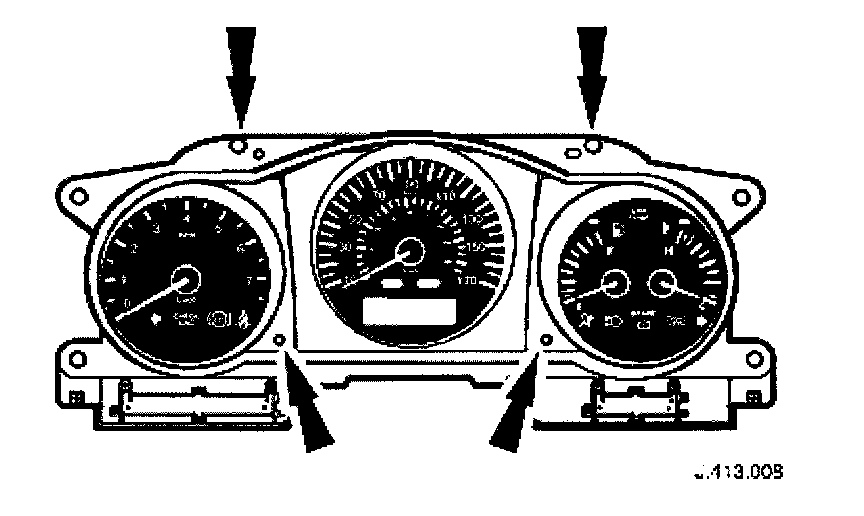

7. Remove lens assembly screws and withdraw lens from module.


Installation
1. The installation procedure is the reverse of removal. See Battery Reconnection Procedure. Service and Repair
