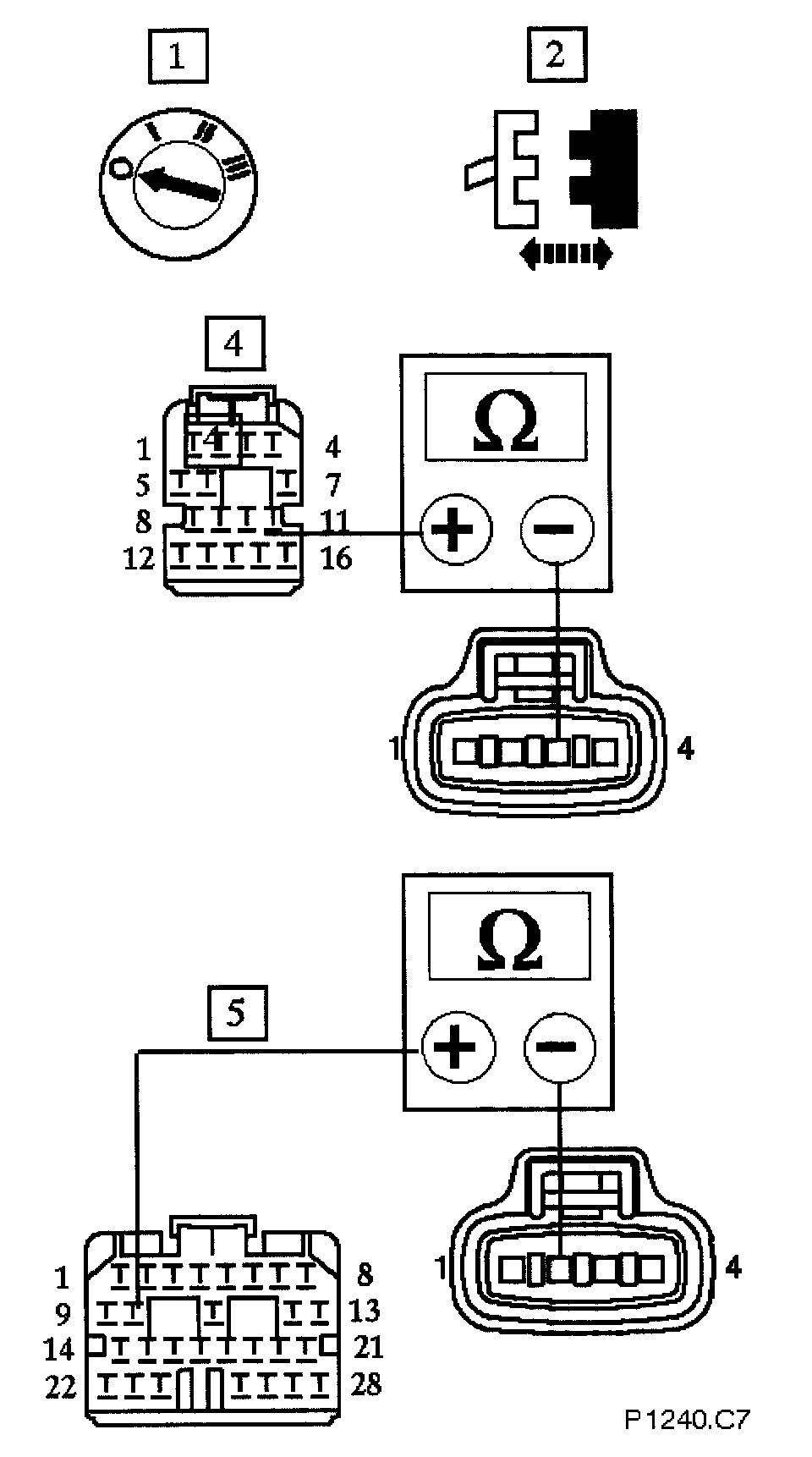

C7: Check Harness Continuity - Signal (Throttle Position)

With EM011 & PI006 disconnected, measure the resistance between, in turn
PI006/003 & EM011/011
PI006/002 & EM010/010

Is the resistance < 0.5 ohms?

Yes
Go to C8 C8: Check Harness Continuity - Signal (Pedal Demand)

No
Inspect PI006, EM011, & PI001 for bent/pushed back pins or locate & repair the harness & test the system for normal operation.
