Home >> Isuzu >> 1992 >> Stylus L4-1809cc 1.8L DOHC (4XF1-W) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> System Specifications >> Torque Specifications

Torque Specifications

Nm (ft lb)

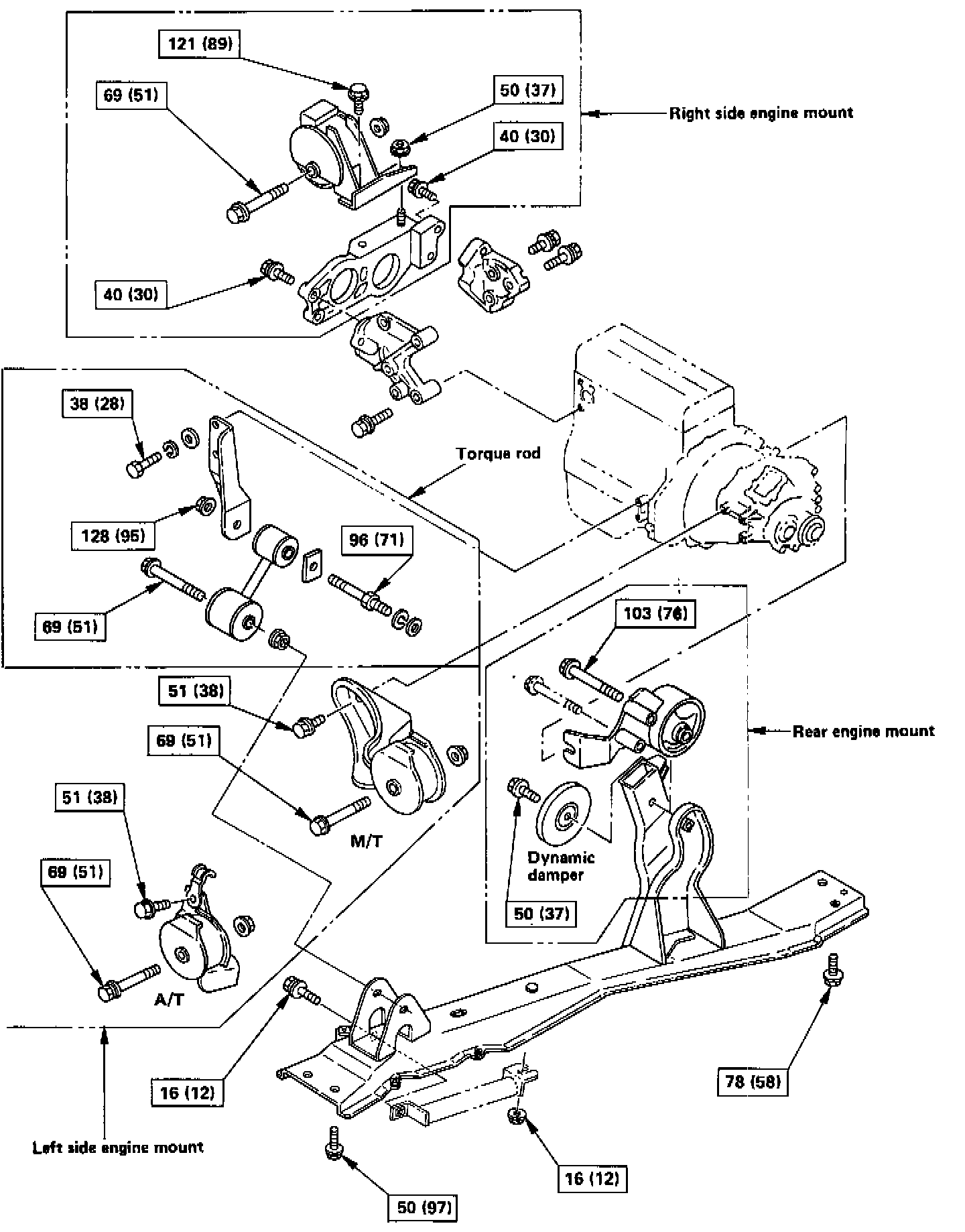

Mounts:

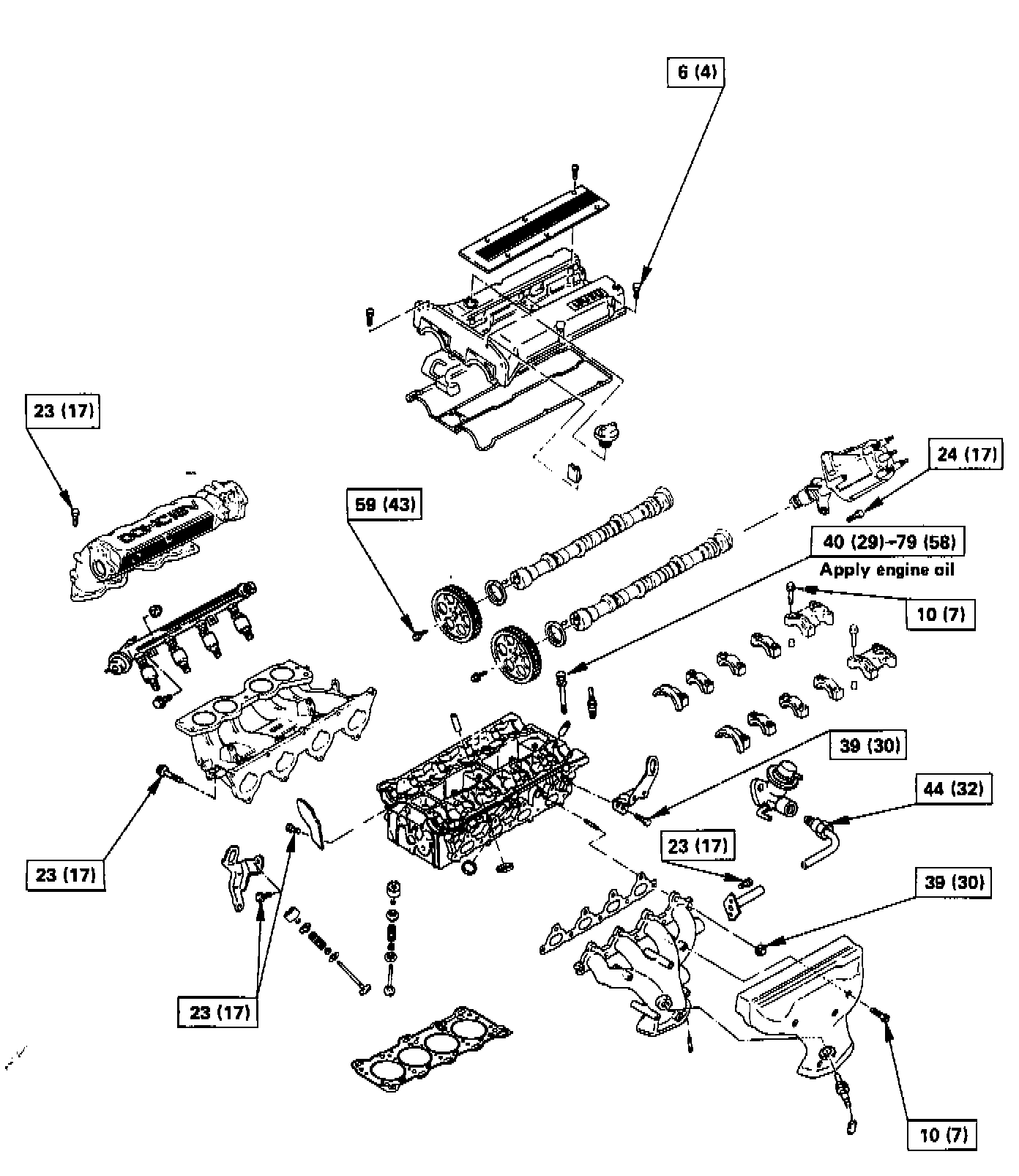

Cylinder Head And Manifolds:

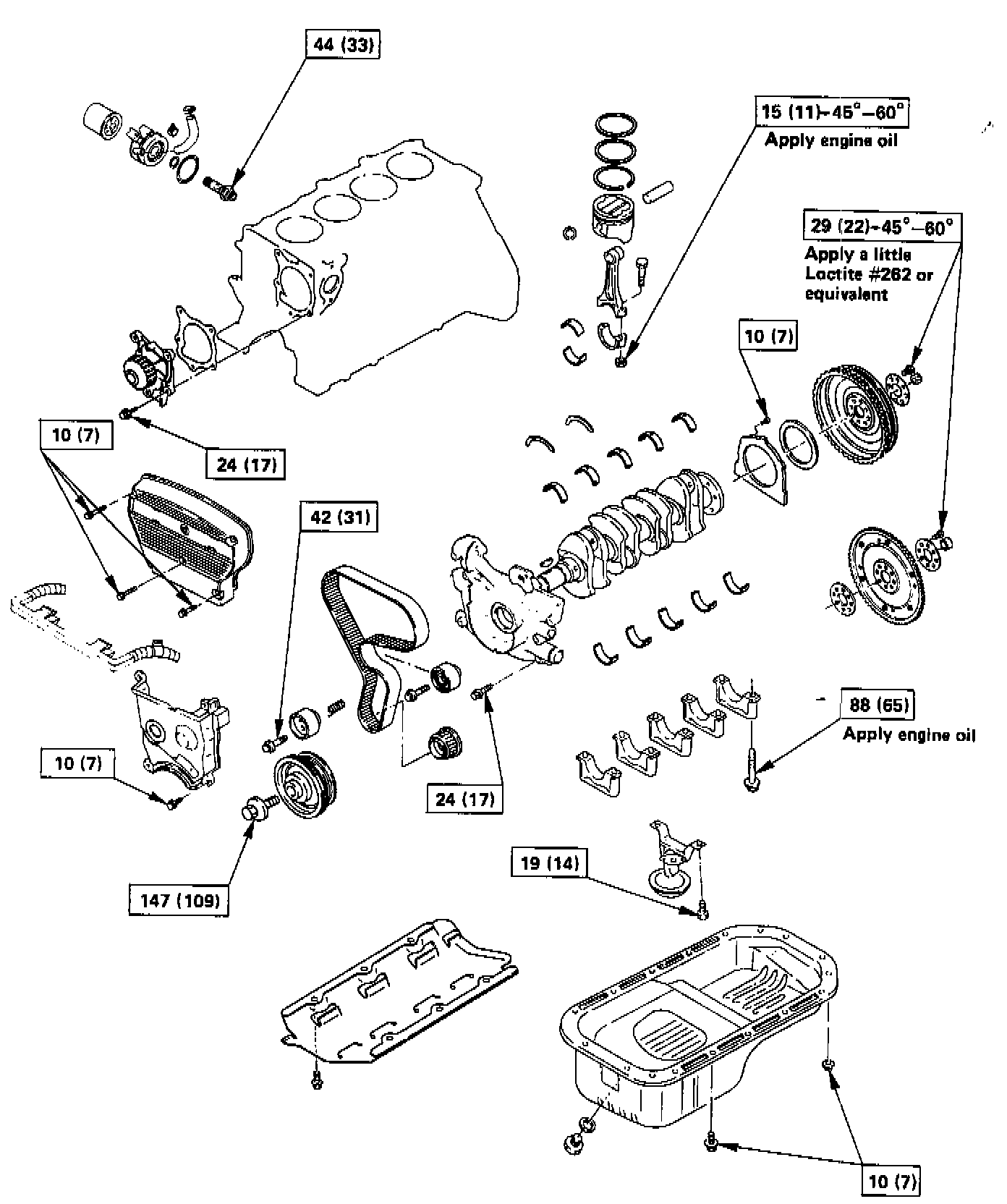

Block:
