Stylus L4-1809cc 1.8L DOHC (4XF1-W)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Engine Control Module
>>
Locations
>>
Ground Locations
>>

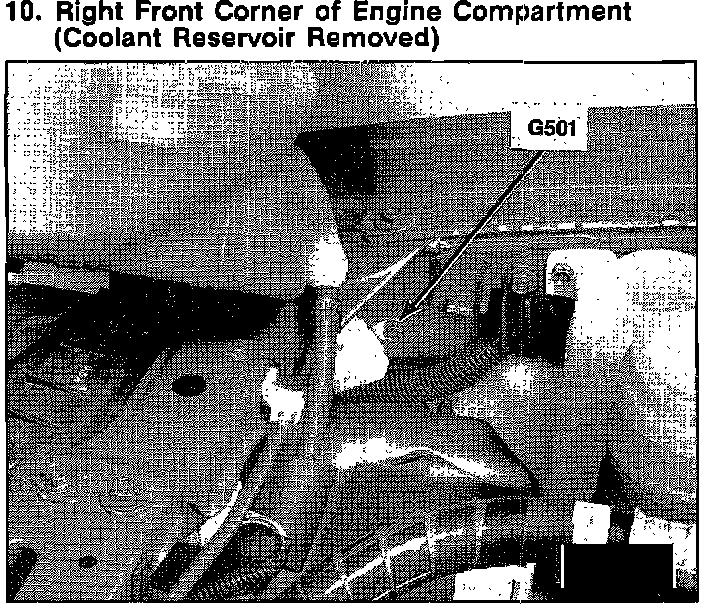

G501
G501
On R.F fender apron, behind coolant reservoir.
