Home >> Isuzu >> 1988 >> Impulse L4-2254cc 2.3L SOHC >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Knock Sensor >> Locations

Knock Sensor: Locations

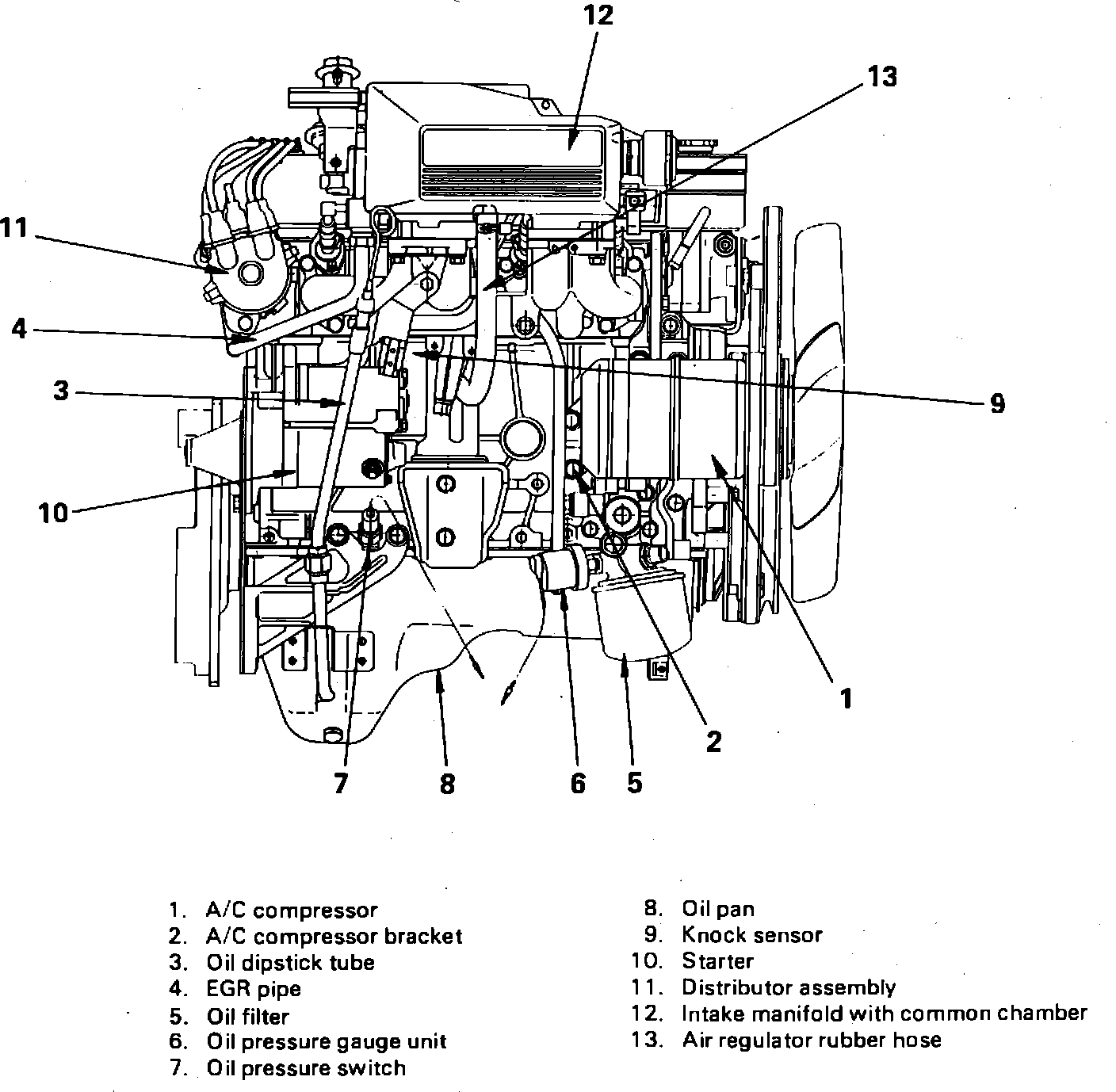

RH Side Of Engine.:




RH Side Of Engine

Applicable to: 1988 Impulse w/4ZC1-T Engine
