Home >> Isuzu >> 1988 >> Impulse L4-2254cc 2.3L SOHC >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Air Flow Meter/Sensor >> Locations

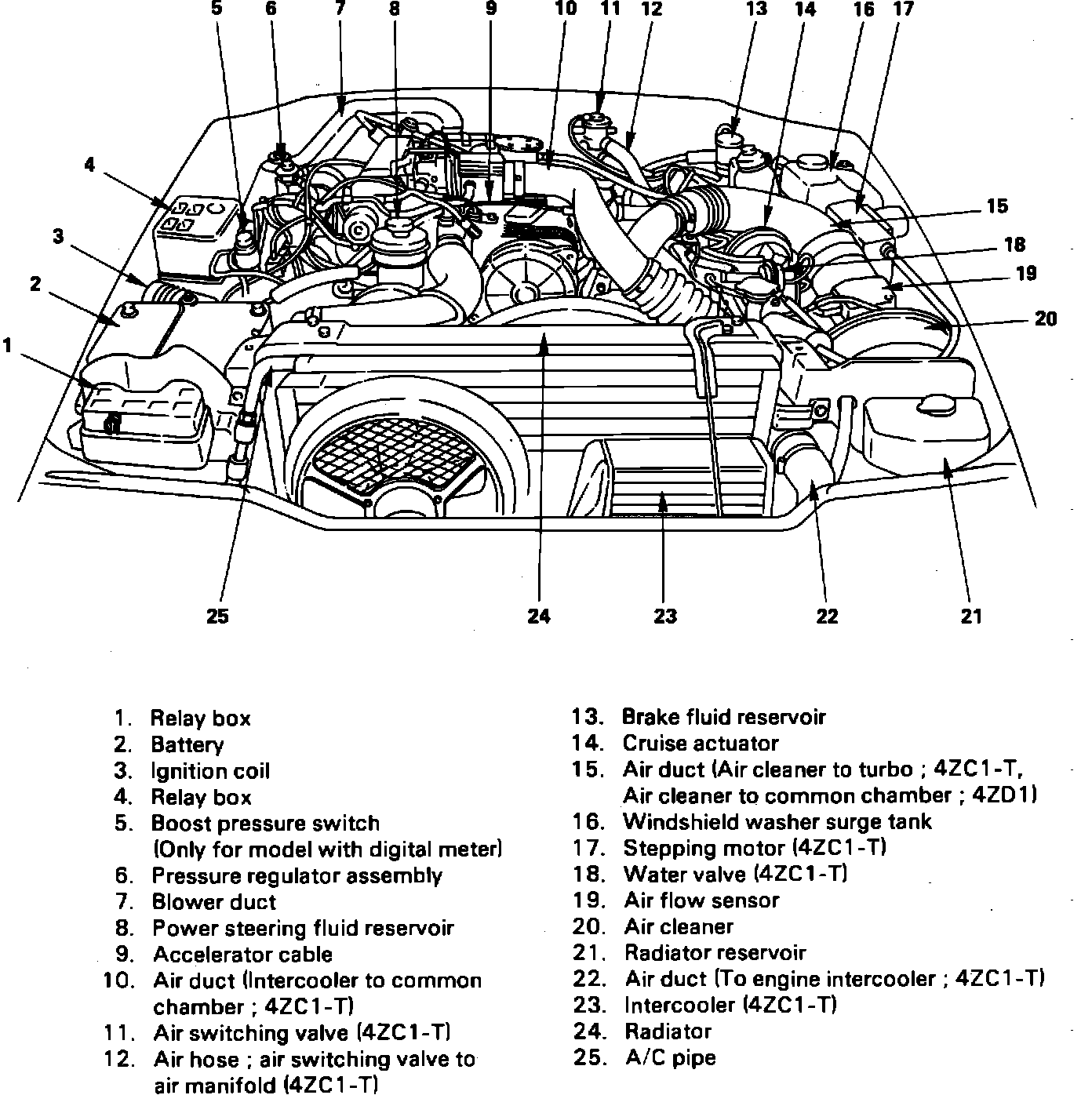

Air Flow Meter/Sensor: Locations

Engine Compartment.:




LH Fender Apron

Applicable to: 1988 Impulse w/4ZC1-T Engine
