Home >> Isuzu >> 1982 >> I-Mark L4-1817cc (G180z) >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Diagnostic Charts >> Chart #10--Code 23

Chart #10--Code 23

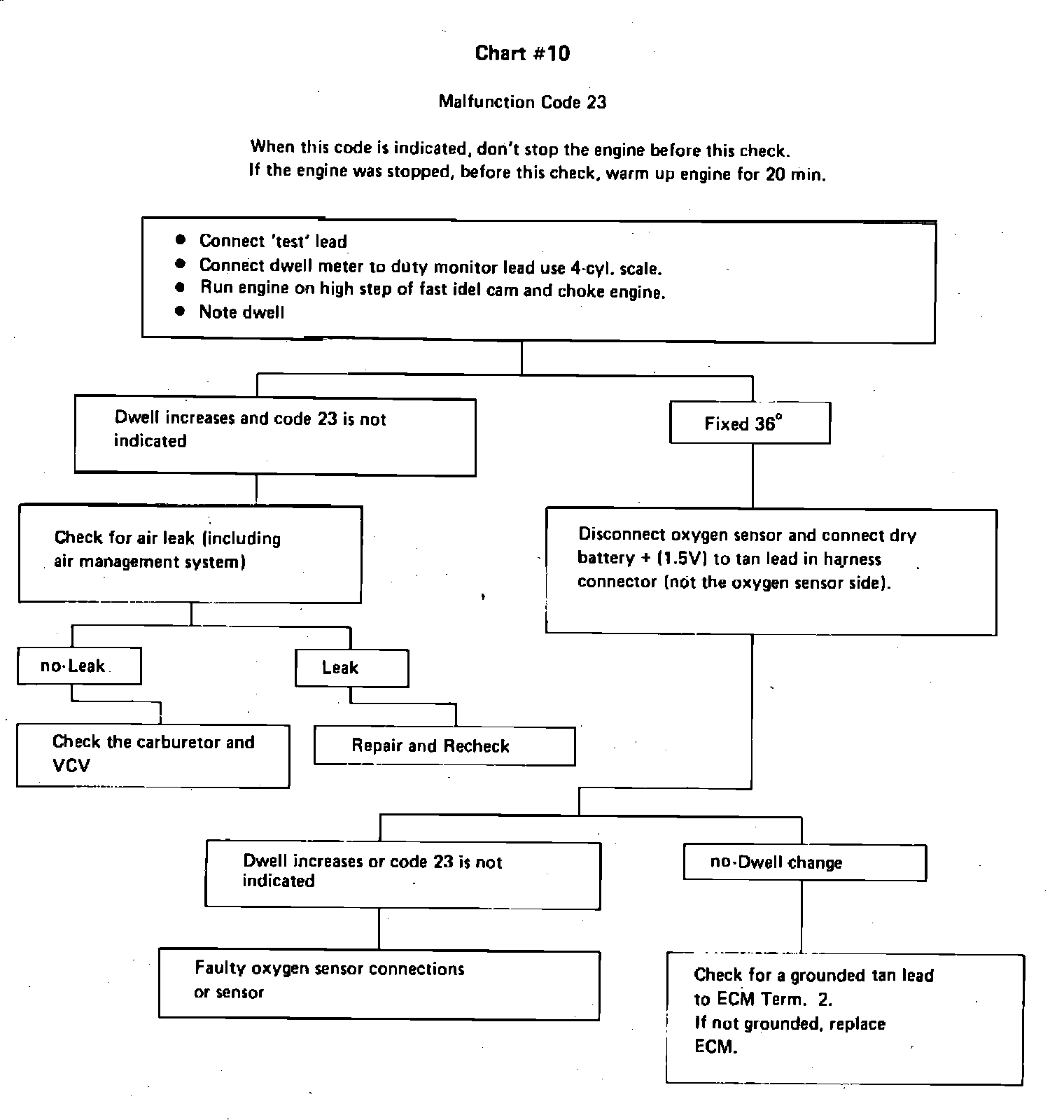

Fig. 21 Chart No. 10 (trouble code 23) diagnosis.:
