Home >> Isuzu >> 1982 >> I-Mark L4-1.8L 4FBI DSL >> Repair and Diagnosis >> Powertrain Management >> Emission Control Systems >> Locations

Emission Control Systems: Locations

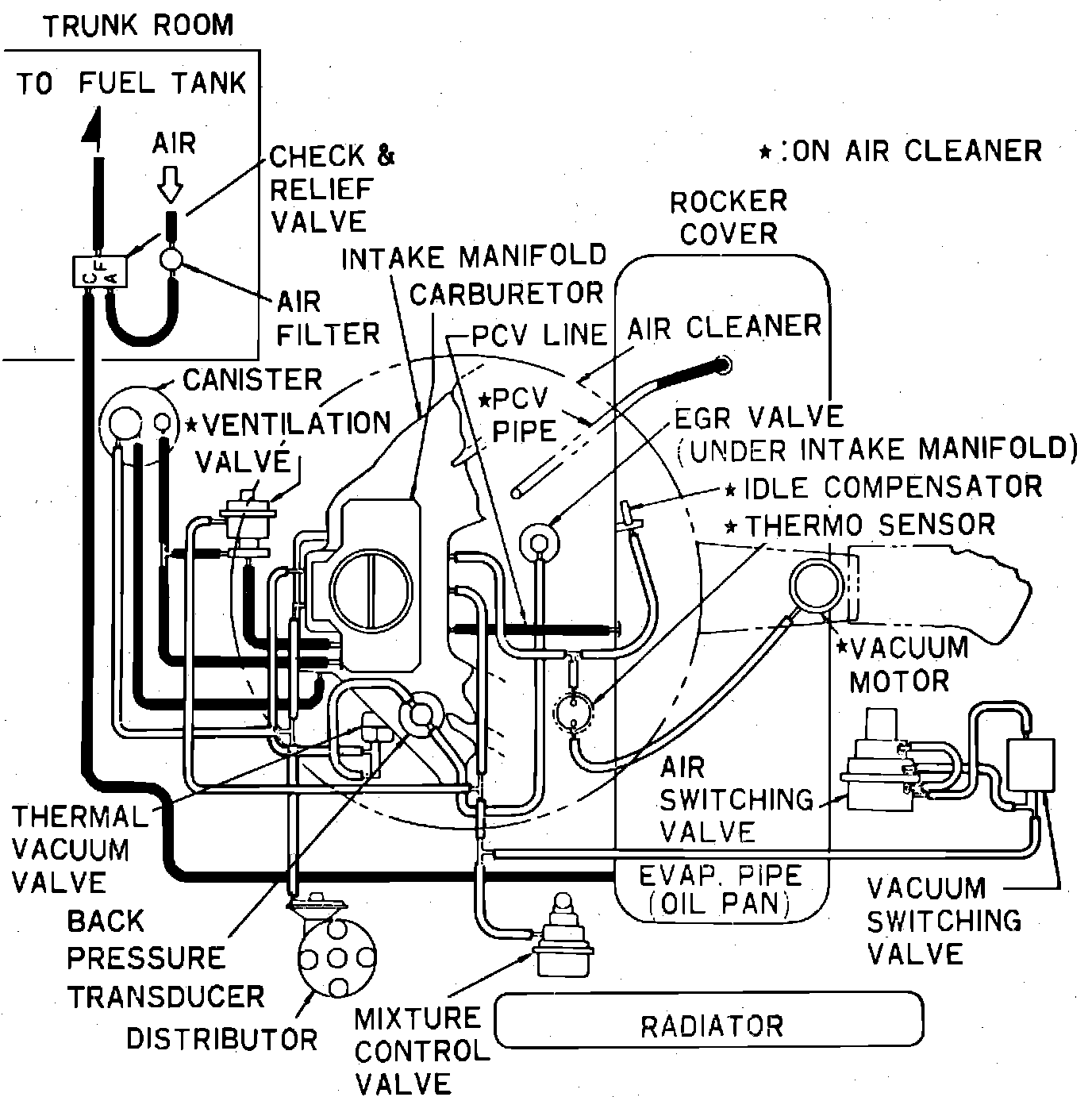

Emission Control Components.:




In Engine Compartment

Applicable to: 1981-82 I-Mark
