Home >> Isuzu Truck >> 1987 >> Trooper II L4-2254cc 2.3L SOHC >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> Cylinder Block Assembly >> System Specifications >> Torque Specifications/Sequence

Torque Specifications/Sequence

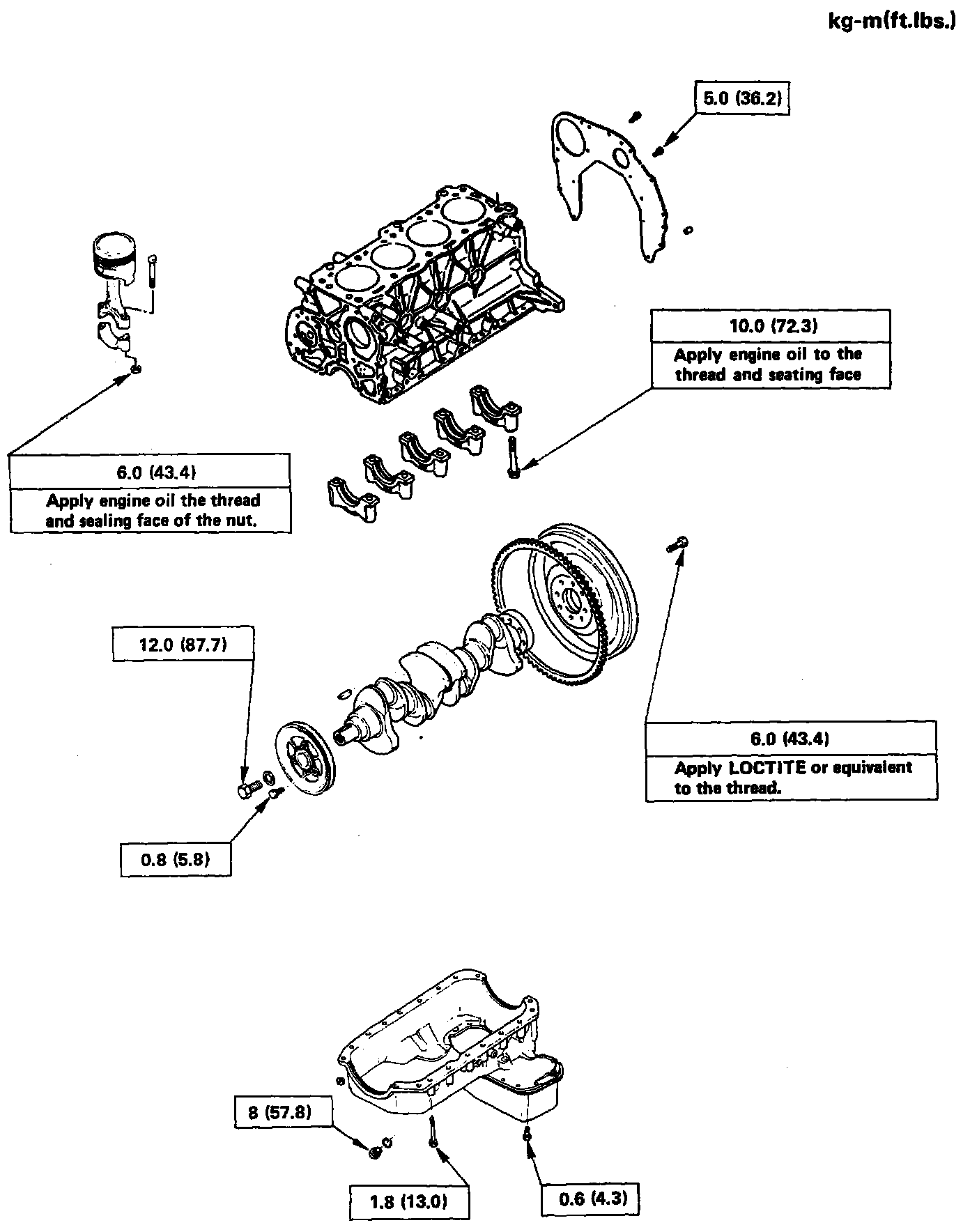

Torque Specifications:




Crankshaft Main Bearing Cap Bolts Removal Sequence:




Crankshaft Main Bearing Cap Bolts Torque Sequence:
