Engine Temperature Sensor: Locations

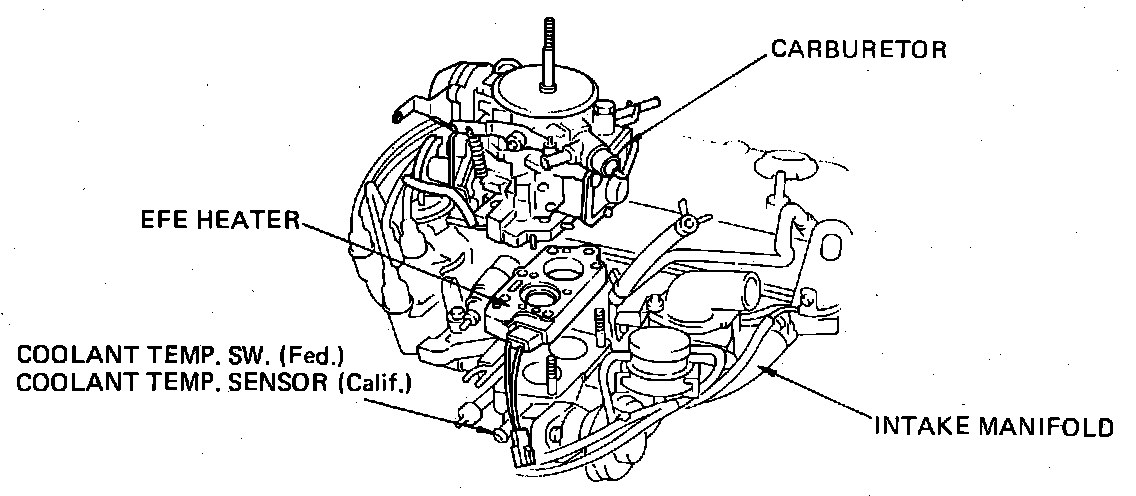

LH Side Of Gasoline Engine.:




On Intake Manifold

Applicable to: 1986 Trooper II
