Removal and Installation

ROOF SEALING

Removal and Installation


REMOVAL


CAUTION:
Protect the rear fender with a fender protector.
NOTE:
Operate roof manually if it does not operate electrically. Refer to "Manual Operation" Procedures.

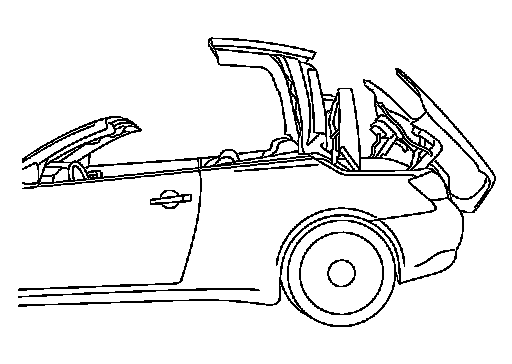

1.Stop roof as shown in the figure (during open operation).

CAUTION:
Be careful of the roof and rear parcel shelf unit positions when operating, because roof may drop little by little and may interfere with rear parcel shelf unit when roof is in the middle position for a long period of time.
2.Remove clips, and then front roof weather-strip.
3.Remove TORX bolts and clips, and then center roof weather-strip.
4.Remove TORX bolts, and then rear roof weather-strip.

INSTALLATION

Install in the reverse order of removal.
NOTE:
- Perform initialization according to the work after installing roof sealing. Refer to "Description" Description.
- Adjust door glass and quarter window glass. Refer to "Inspection and Adjustment" Procedures.
- Perform water leakage test. Refer to "Water Leakage Test" Water Leakage Test.
