Removal and Installation

FRONT PILLAR FINISHER

Removal and Installation


Removal

1.Remove roof front finisher. Refer to "Removal and Installation" Removal and Installation.

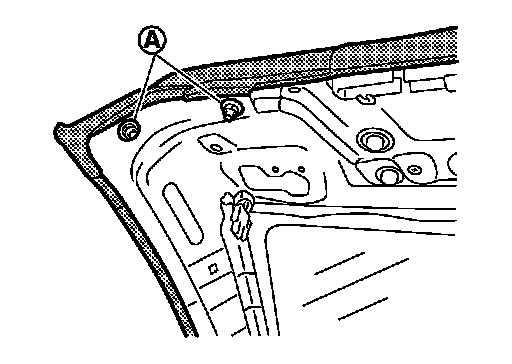

2.Remove body side weather-strip mounting nuts (A).
3.Remove body side weather-strip retainer mounting screws, and then remove body side weather-strip retainer.

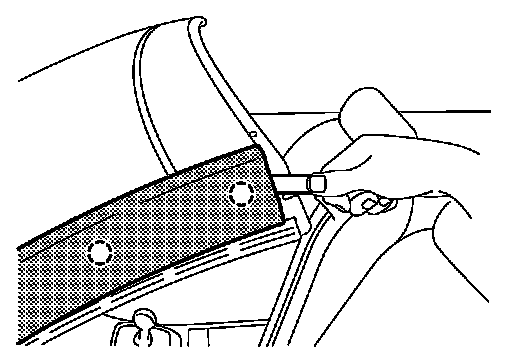

4.Remove front pillar finisher fixing clips with remover tool (A).

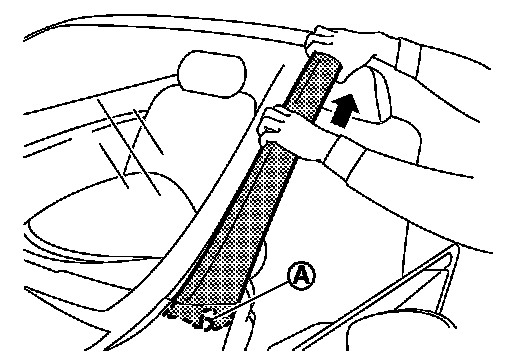

5.Pull up front pillar finisher to release portion (A) as shown by the arrow in the figure, and then remove front pillar finisher.

Installation

Install in the reverse order of removal.
