Removal and Installation

HEADLINING

Removal and Installation


REMOVAL


CAUTION:
Protect the rear fender with a fender protector.
NOTE:
- Operate roof manually if it does not operate electrically. Refer to "Manual Operation" Procedures.
- All graphics are on the LH roof link side.

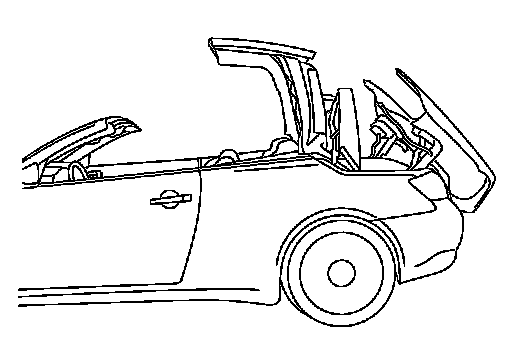

1.Stop roof as shown in the figure (during open operation).

CAUTION:
Be careful of the roof and rear parcel shelf unit positions when operating, because roof may drop little by little and may interfere with rear parcel shelf unit when roof is in the middle position for a long period of time.





2.Remove clips and metal clips, and then remove front roof garnish (1).










3.Remove headlining and main cord mounting TORX screw (LH/
RH) (A) from front roof panel front side.





4.Remove front side clips of front roof panel.

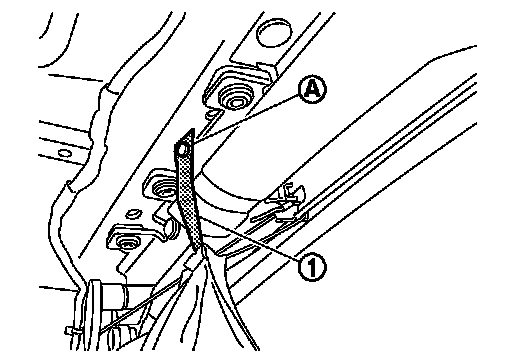

5.Remove clip (LH/RH) (A), and then rubber strap (1) from front roof panel.
6.Remove rear side clips of front roof panel.





7.Remove TORX screw (A), and then tension cord (1) and rubber cord (2) through clearance between front roof panel and center roof panel.
8.Remove tension cord from front roof panel support rail.
9.Remove front side clips and intermediate clips of center roof panel.
10.Remove main tether cord stopper from center roof panel support rail. (3spot)
11.Remove deflector B mounting TORX screws.





12.Remove retainer from center roof panel.
13.Remove rear side clips of center roof panel.





14.Remove metal clips, and then remove headlining from center roof panel.

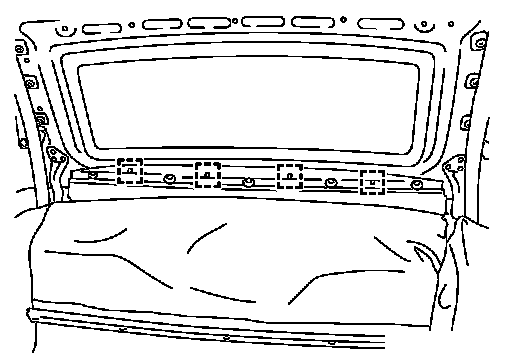

15.Remove clips and metal clips, and then remove rear roof lower garnish.










16.Remove clip (LH/RH) (A), and then remove headlining from rear roof panel.

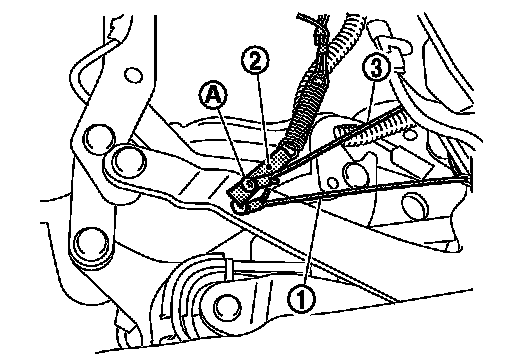

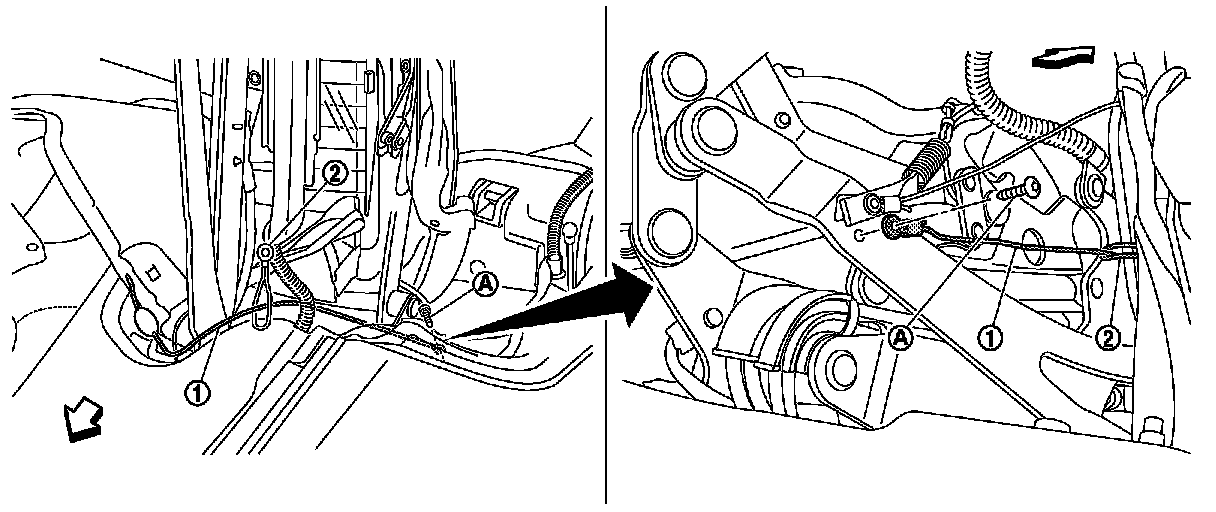

17.Remove main cord (1), main tether cord (2), and C-post cord (3)
mounting TORX screws (A) from roof link.

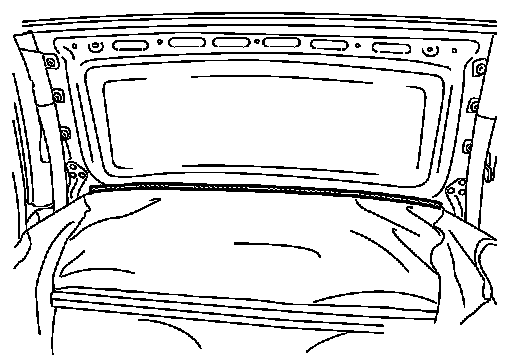

18.Stop roof as shown in the figure (roof is closed and trunk is open).

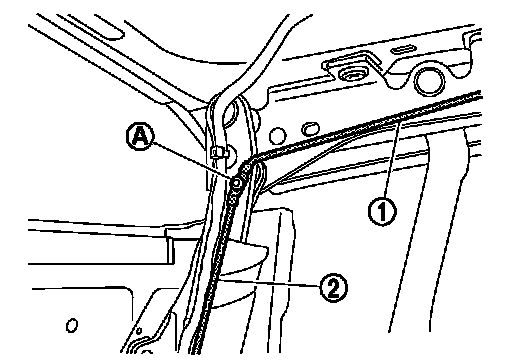

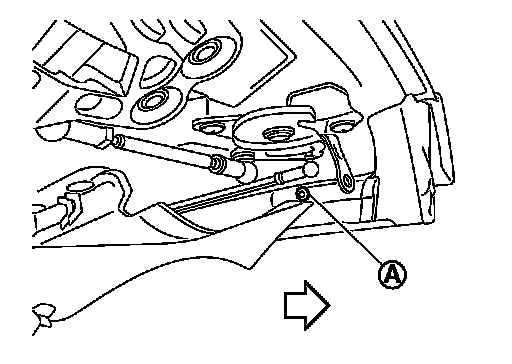

19.Remove deflector A (1) and guide (2) mounting TORX screws (A) from roof link.
20.Remove the headlining from vehicle.

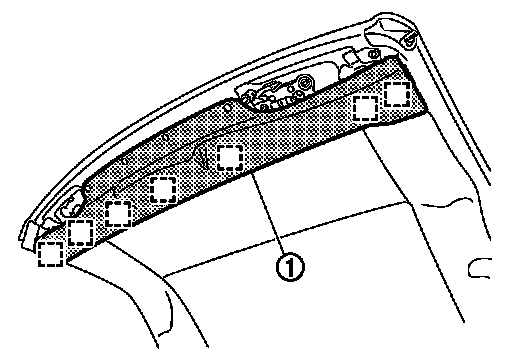

21.Remove metal clips, and then remove rear roof upper garnish (1).






INSTALLATION


CAUTION:
Use TORX screws that is larger by a size when re-installing headlining.
NOTE:
All graphics are on the LH roof link side.





1.Stop roof as shown in the figure (in the middle of open operation).

CAUTION:
Be careful of the roof and rear parcel shelf unit positions when operating, because roof may drop little by little and may interfere with rear parcel shelf unit when roof is in the middle position for a long period of time.
2.Install rear roof upper garnish.





3.Install headlining metal clips and clips to center roof panel rear side.










4.Install headlining retainer to center roof panel.





5.Install intermediate clips (A) to center roof panel.

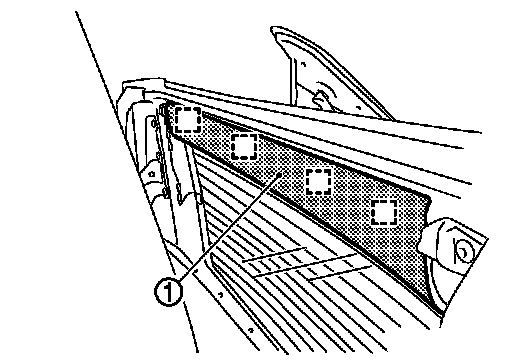

Fix back side of flap portion (1) of headlining cloth using clips
6.Install front side clips (B) to center roof panel.
7.Install front side and rear side clips to front roof panel.





8.Install rubber strap (1) using clip (LH/RH) (A).





9.Install headlining and main cord mounting TORX screw (LH/RH)
(A) to front roof panel front side.

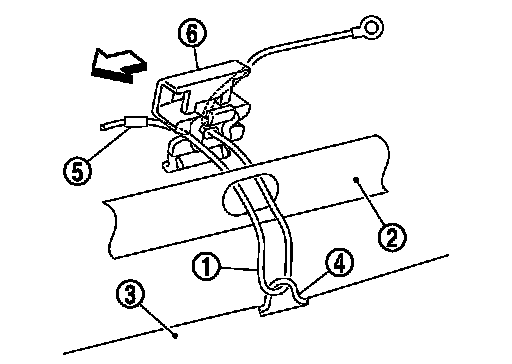

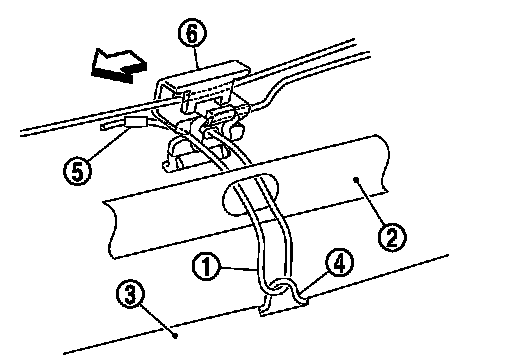

10.As shown in the figure, pass tension code (1) through front roof panel support rail (2) and main code (4) of headlining (3), and then hook tension code crimping portion (5) to stopper groove.
Hook stopper (6) claws to roof panel support rail and engage stopper to front roof panel support rail.





11.Pass rubber code (1) through clearance between roof link and center roof panel (2), and then pass it through trim sleeve (3).
12.Install tension code (4) and rubber code (1) together using TORX screws.

CAUTION:
Be careful not to allow rubber code (1) to pass upper side of rear side trim (5).

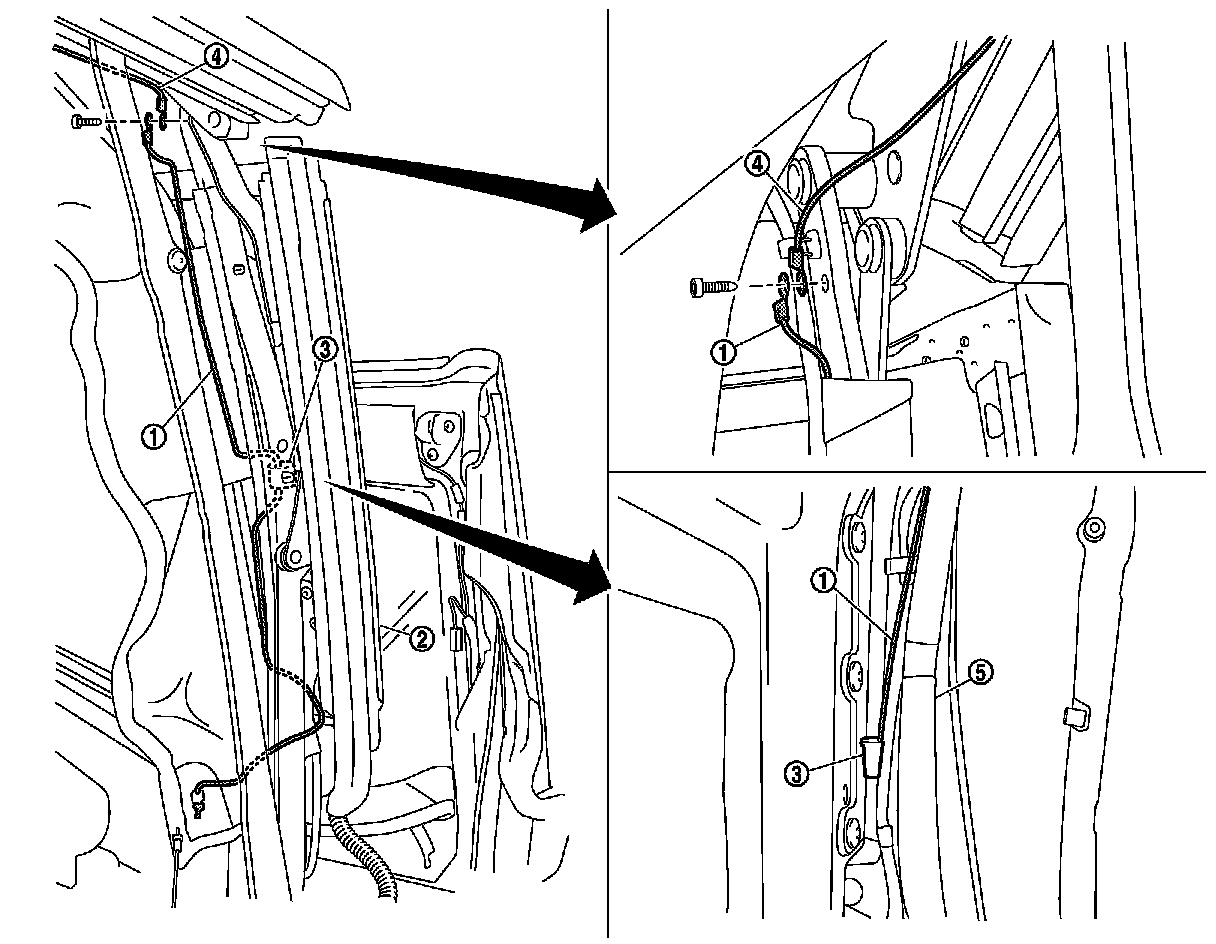

13.As shown in the figure, pass main tether code (1) through center roof panel support rail (2) and main code (4) of headlining (3), and then hook tension code crimping portion (5) to stopper groove.
Hook stopper (6) claws to roof panel support rail and engage stopper to center roof panel support rail. (3 spot)





14.Pull strongly main tether code.

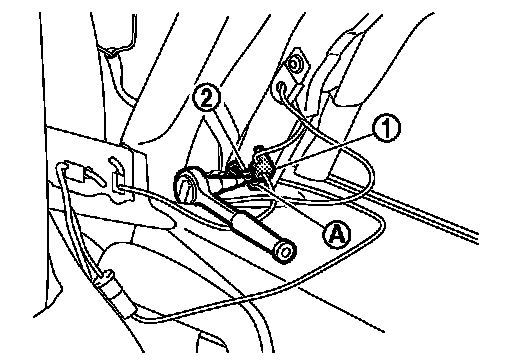

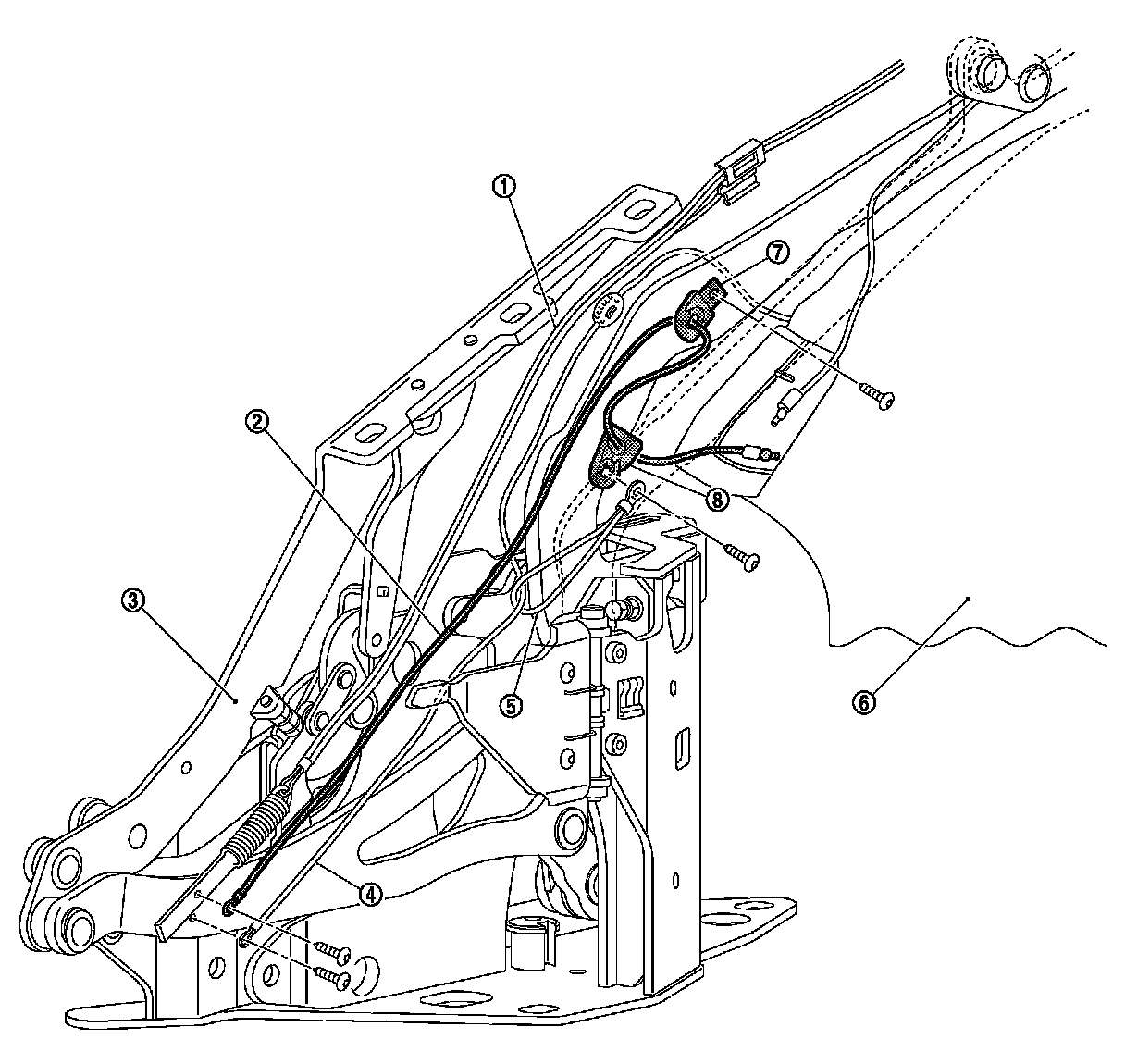

15.As shown in the figure, set main code (1), pass it through guide (2), and fix to rear and lower side of roof link using TORX screws (A).










16.As shown in the figure, set C-post code (2) and install deflector B (7) to roof link using TORX screws.

CAUTION:
Pass C-post cord (2) to deflector B (1) from inner side to outer side and fix to roof link assembly (3).










17.Hang main tether code and C-post code to trunk side.

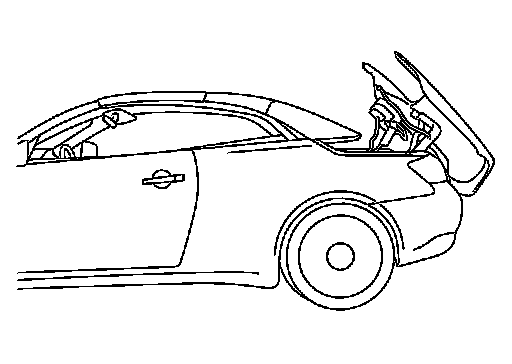

18.Stop roof as shown in the figure (roof is closed and trunk is open).

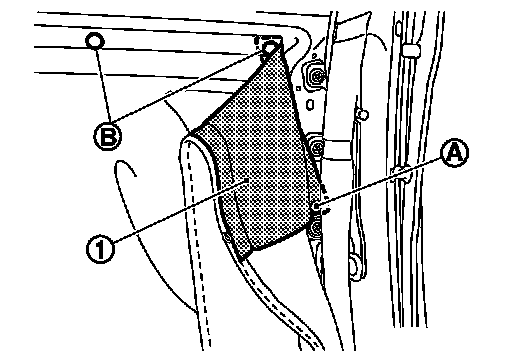

19.From passenger room side, fix guide (2) and deflector A (1)
together using TORX screws (A).

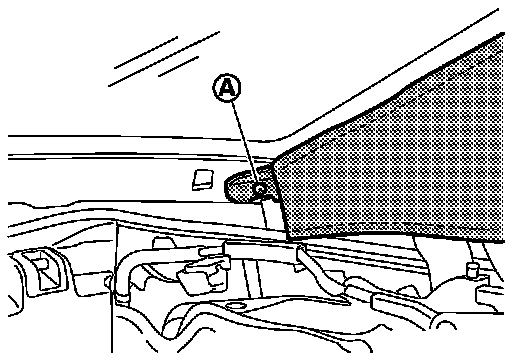

20.Install rear end of headlining to rear roof panel using clip (LH/
RH) (A).
21.Install rear roof lower garnish.





22.Stop roof as shown in the figure (in the middle of roof open operation).

CAUTION:
Be careful of the roof and rear parcel shelf unit positions when operating, because roof may drop little by little and may interfere with rear parcel shelf unit when roof is in the middle position for a long period of time.
23.Pull main tether code and C-post code and fix to roof link together using TORX screws.
24.Install front roof garnish.
25.Fully close roof.
