Trunk Lid Hinge

TRUNK LID

TRUNK LID HINGE : Adjustment

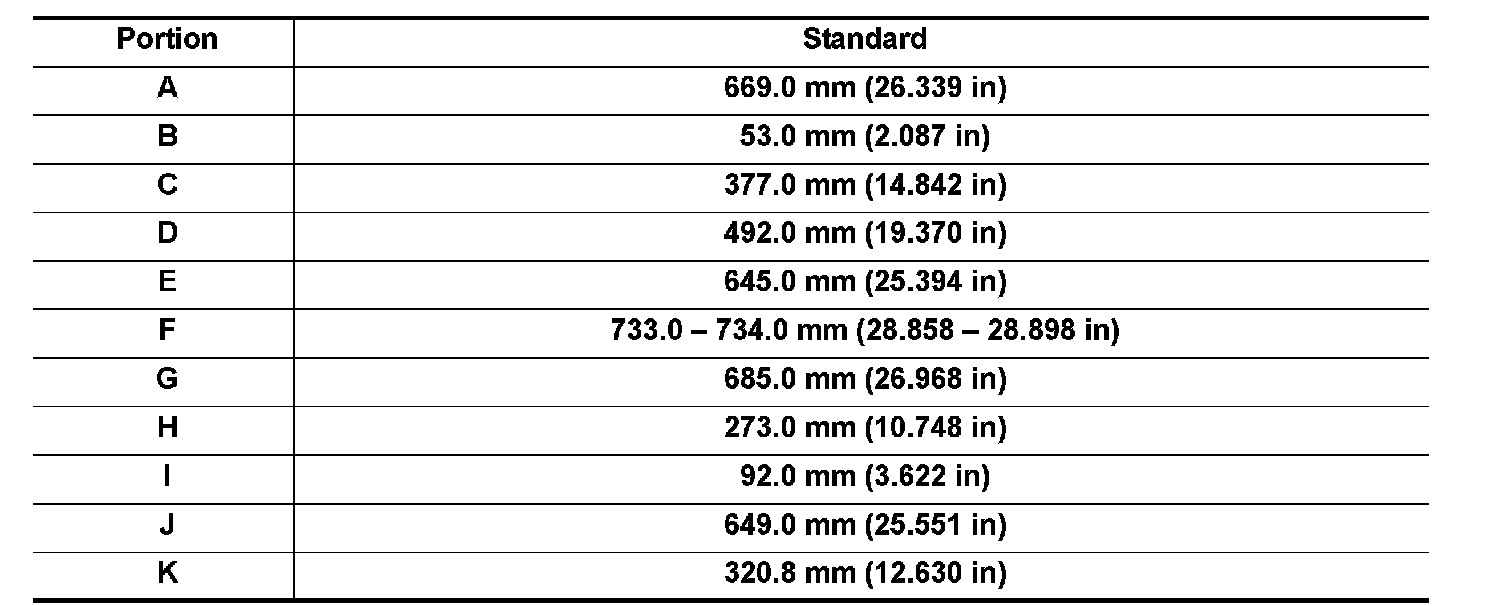

Perform trunk lid hinge adjustment when trunk lid hinge is replaced or removed and installed. Adjust the values to the standards indicated in the following table.





1.Remove trunk lid assembly. Refer to "TRUNK LID ASSEMBLY : Removal and Installation" Removal and Installation.
2.Remove trunk lid hinge assembly. Refer to "TRUNK LID HINGE : Removal and Installation" Removal and Installation.
3.Set shim (body side).
4.Set trunk lid hinge to the vehicle. Temporarily tighten mounting bolt and nut.
5.Adjust dimension by adjusting shim and adjustment nut.
6.Tighten mounting bolt and nut of trunk lid hinge to the specified torque.
7.Adjust trunk hinge pin.

CAUTION:
- Perform adjustment only when trunk hinge pin is replaced or removed and installed.
- Trunk lid cannot be installed if longitudinal pin pitch is changed.
8.Install trunk lid. Refer to "TRUNK LID ASSEMBLY : Removal and Installation" Removal and Installation.
9.Perform trunk lid fitting adjustment. Refer to "TRUNK LID ASSEMBLY : Adjustment" Trunk Lid Assembly.
10.Adjust bumper rubber.
11.Adjust side wedge. Refer to "TRUNK LID ASSEMBLY : Adjustment" Trunk Lid Assembly.

CAUTION:
- Check the trunk lid open/close operation after installation.
