B1740

Description

There are 22 states in hydraulic system. Hydraulic system is controlled using combination of these 22 states and, at the same time, open and close operations of retractable hard top system are performed interlocking with other retractable hard top system components. For the detail,

CONTROL FUNCTION : System Description".


DTC Logic

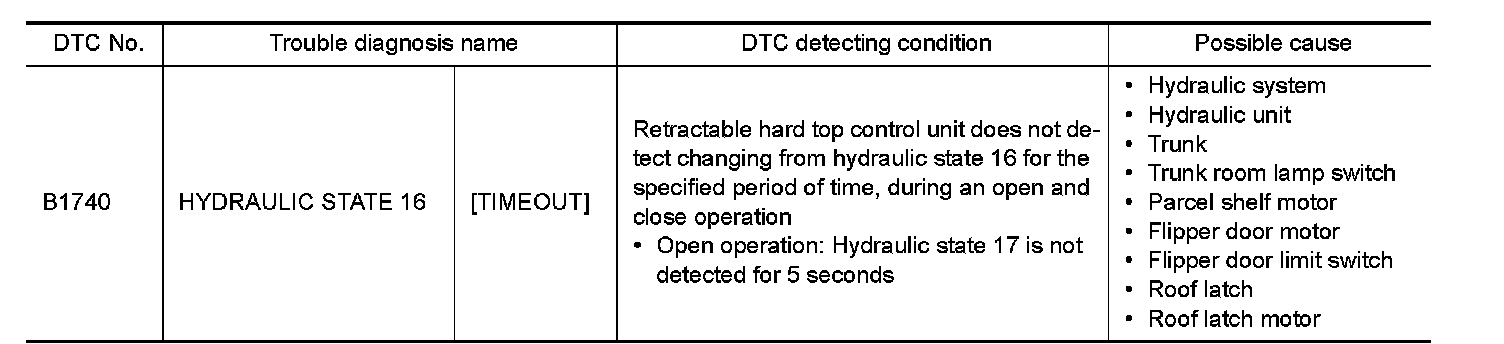

DTC DETECTION LOGIC

NOTE:
If two or more DTCs are detected, refer to "DTC Inspection Priority Chart" Related Tests, Information and Procedures, and determine trouble diagnosis order.






DTC CONFIRMATION PROCEDURE


1. PERFORM DTC CONFIRMATION PROCEDURE

1.Start engine.
2.Operate retractable hard top to fully open and fully close.
3.Check "Self-Diagnostic Result" of "RETRACTABLE HARD TOP" using CONSULT.
Is DTC detected?
YES- Go to "Diagnosis Procedure" .
NO- INSPECTION END


Diagnosis Procedure


1. CHECK RETRACTABLE HARD TOP SYSTEM COMPONENT PARTS

Check retractable hard top component parts as bellow deformation, looseness, rattle, interference with other parts, and pinched foreign materials.
- Hydraulic system: Refer to "Exploded View" Exploded View.
- Trunk lid: Refer to "TRUNK LID ASSEMBLY : Exploded View" Exploded View.
- Parcel shelf: Refer to "REAR PARCEL SHELF UNIT : Exploded View" Exploded View.
- Flipper door: Refer to "Exploded View" Exploded View.
- Roof: Refer to "Exploded View" Exploded View.
- Roof latch assy: Refer to "ROOF LOCK ASSEMBLY : Exploded View" Exploded View.
Is the inspection result normal?
YES- GO TO 2.
NO- Repair or replace malfunctioning part.

2. CHECK TRUNK ROOM LAMP SWITCH

Check trunk room lamp switch. Refer to "Component Function Check" Trunk Room Lamp Switch.
Is the inspection result normal?
YES- GO TO 3.
NO- Repair or replace malfunctioning part.

3. CHECK TRUNK ROOM LAMP SWITCH SIGNAL

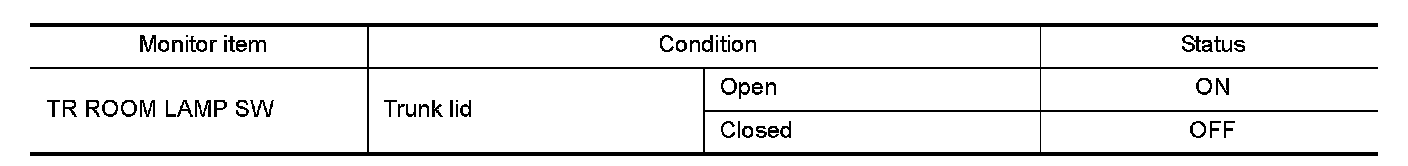

Check "TR ROOM LAMP SW" in "DATA MONITOR" mode of "RETRACTABLE HARD TOP" using CONSULT.





Is the inspection result normal?
YES- GO TO 5.
NO- GO TO 4.

4. CHECK TRUNK ROOM LAMP SWITCH CIRCUIT

1.Disconnect trunk room lamp switch connector, BCM connector trunk closure control unit connector and retractable hard top control unit connector.

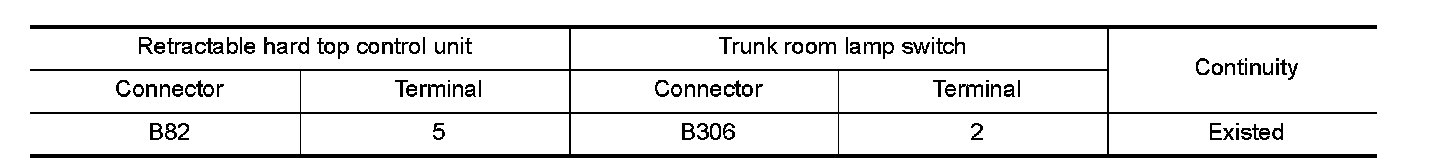

2.Check continuity between retractable hard top control unit harness connector and trunk room lamp switch harness connector.

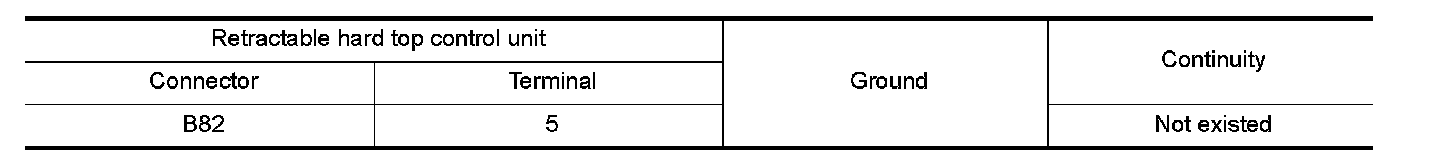

3.Check continuity between BCM harness connector and ground.





Is the inspection result normal?
YES- Check trunk lid auto closure system. Refer to "OPEN/CLOSURE FUNCTION : Diagnosis Procedure" Diagnosis Procedure.
NO- Repair harness or connector.

5. CHECK HYDRAULIC PUMP POWER SUPPLY RELAY

Check hydraulic pump power supply relay. Refer to "Diagnosis Procedure" Hydraulic Pump Motor Power Supply Relay.
Is the inspection result normal?
YES- GO TO 6.
NO- Replace hydraulic unit. Refer to "Removal and Installation" Removal and Installation.

6. CHECK PARCEL SHELF MOTOR

Check parcel shelf motor. Refer to "Diagnosis Procedure" Parcel Shelf Motor (Draw) (DRAW) and "Diagnosis Procedure" Parcel Shelf Motor (Rotation)(ROTATION).
Is the inspection result normal?
YES- GO TO 7.
NO- Replace parcel shelf. Refer to "REAR PARCEL SHELF UNIT : Removal and Installation" Removal and Installation.

7. CHECK FLIPPER DOOR MOTOR

Check flipper door motor. Refer to "Diagnosis Procedure" Flipper Door Motor.
Is the inspection result normal?
YES- GO TO 8.
NO- Replace flipper door. Refer to "Removal and Installation" Removal and Installation.

8. CHECK FLIPPER DOOR LIMIT SWITCH

Check flipper door limit switch. Refer to "Diagnosis Procedure" Flipper Door Motor.
Is the inspection result normal?
YES- GO TO 9.
NO- Replace flipper door. Refer to "Removal and Installation" Removal and Installation.

9. CHECK ROOF LATCH MOTOR

Check roof latch motor. Refer to "Diagnosis Procedure" Roof Latch Motor.
Is the inspection result normal?
YES- Check intermittent incident. Refer to "Intermittent Incident" Intermittent Incident.
NO- Replace roof latch motor. Refer to "ROOF LOCK ASSEMBLY : Removal and Installation" Removal and Installation.
