Door Key Cylinder Switch

DOOR KEY CYLINDER SWITCH

Component Function Check


1. CHECK DOOR KEY CYLINDER SWITCH INPUT SIGNAL

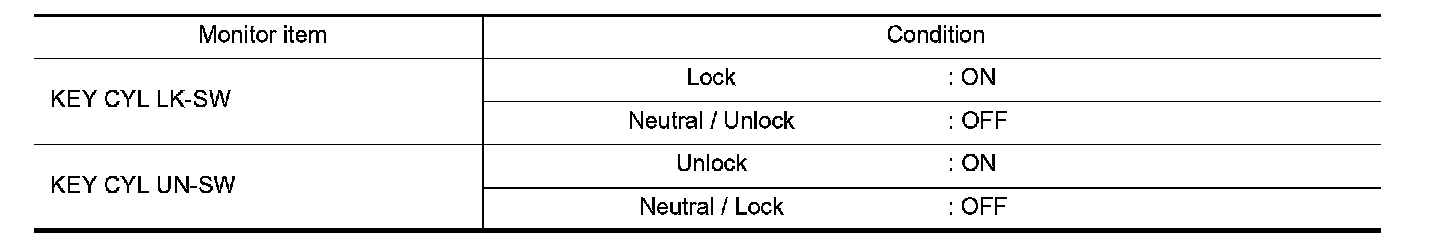

Check ("KEY CYL LK-SW", "KEY CYL UN-SW") in "DATA MONITOR" mode for "POWER DOOR LOCK SYSTEM" with CONSULT. Intelligent Key.





Is the inspection result normal?
YES- Door key cylinder switch is OK.
NO- .


Diagnosis Procedure


1. CHECK DOOR KEY CYLINDER SWITCH SIGNAL

1.Turn ignition switch OFF.
2.Disconnect front door lock assembly (driver side) (door key cylinder switch) connect.
3.Turn ignition switch ON.

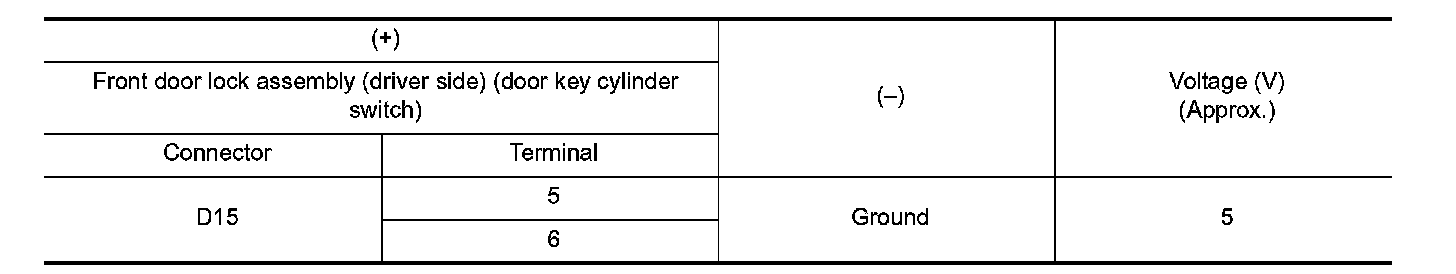

4.Check voltage between front door lock assembly (driver side) (door key cylinder switch) harness connector and ground.





Is the inspection result normal?
YES- GO TO 3.
NO- GO TO 2.

2. CHECK DOOR KEY CYLINDER SWITCH CIRCUIT

1.Turn ignition switch OFF.
2.Disconnect power window main switch connector.

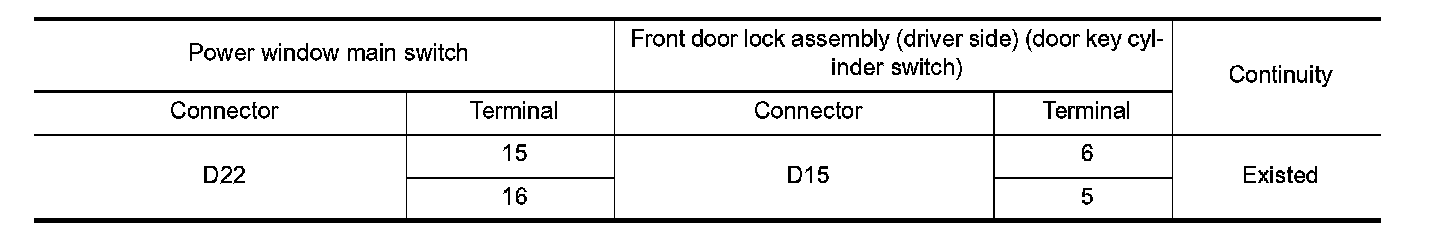

3.Check continuity between power window main switch harness connector and front door lock assembly (driver side) (door key cylinder switch) harness connector.

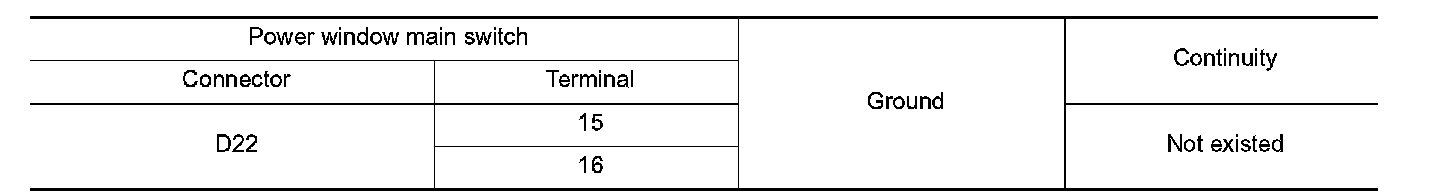

4.Check continuity between power window main switch harness connector and ground.





Is the inspection result normal?
YES- Replace power window main switch. Front Power Window Switch.
NO- Repair or replace harness.

3. CHECK DOOR KEY CYLINDER SWITCH GROUND CIRCUIT

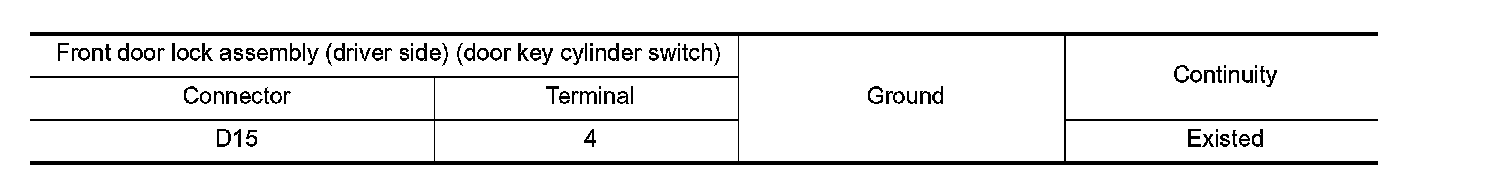

Check continuity between front door lock assembly (driver side) (door key cylinder switch) harness connector and ground.





Is the inspection result normal?
YES- GO TO 4.
NO- Repair or replace harness.

4. CHECK DOOR KEY CYLINDER SWITCH

Check front door lock assembly (driver side) (door key cylinder switch).
.
Is the inspection result normal?
YES- GO TO 5.
NO- Replace front door lock assembly (driver side) (door key cylinder switch). Removal And Installation.

5. CHECK INTERMITTENT INCIDENT

Intermittent Incident.
- INSPECTION END


Component Inspection


COMPONENT INSPECTION


1. CHECK DOOR KEY CYLINDER SWITCH

1.Turn ignition switch OFF.
2.Disconnect front door lock assembly (driver side) (key cylinder switch) connector.

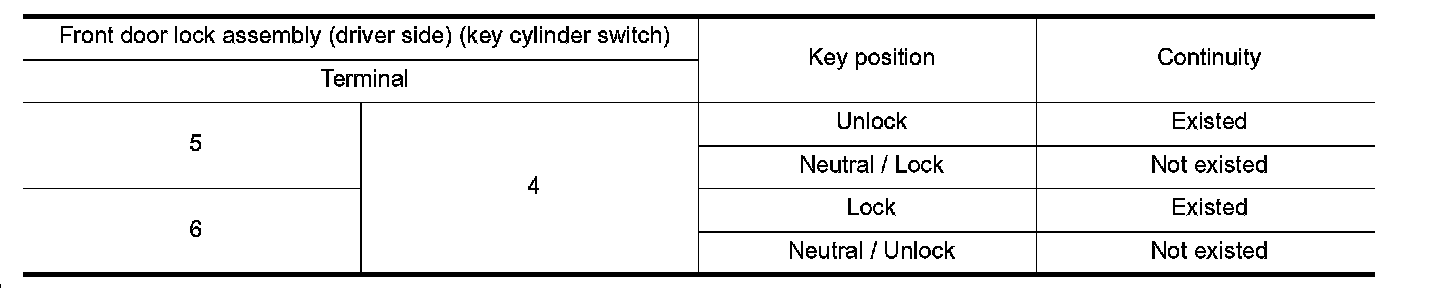

3.Check front door lock assembly (driver side) (key cylinder switch).





Is the inspection result normal?
YES- INSPECTION END
NO- Replace front door lock assembly (driver side) (key cylinder switch). Service and Repair.
