Engine Control System
ENGINE CONTROL SYSTEM SYMPTOMS

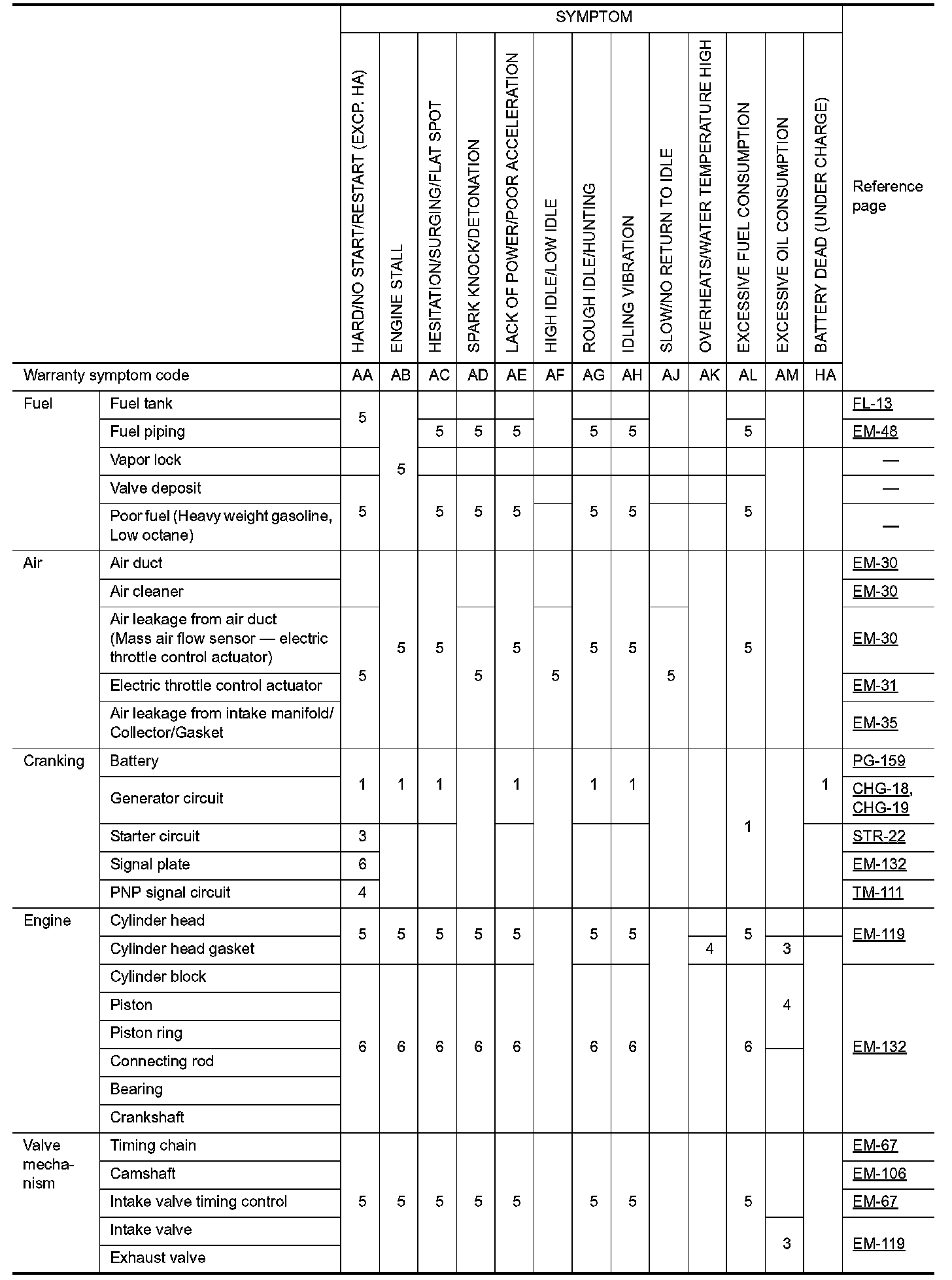

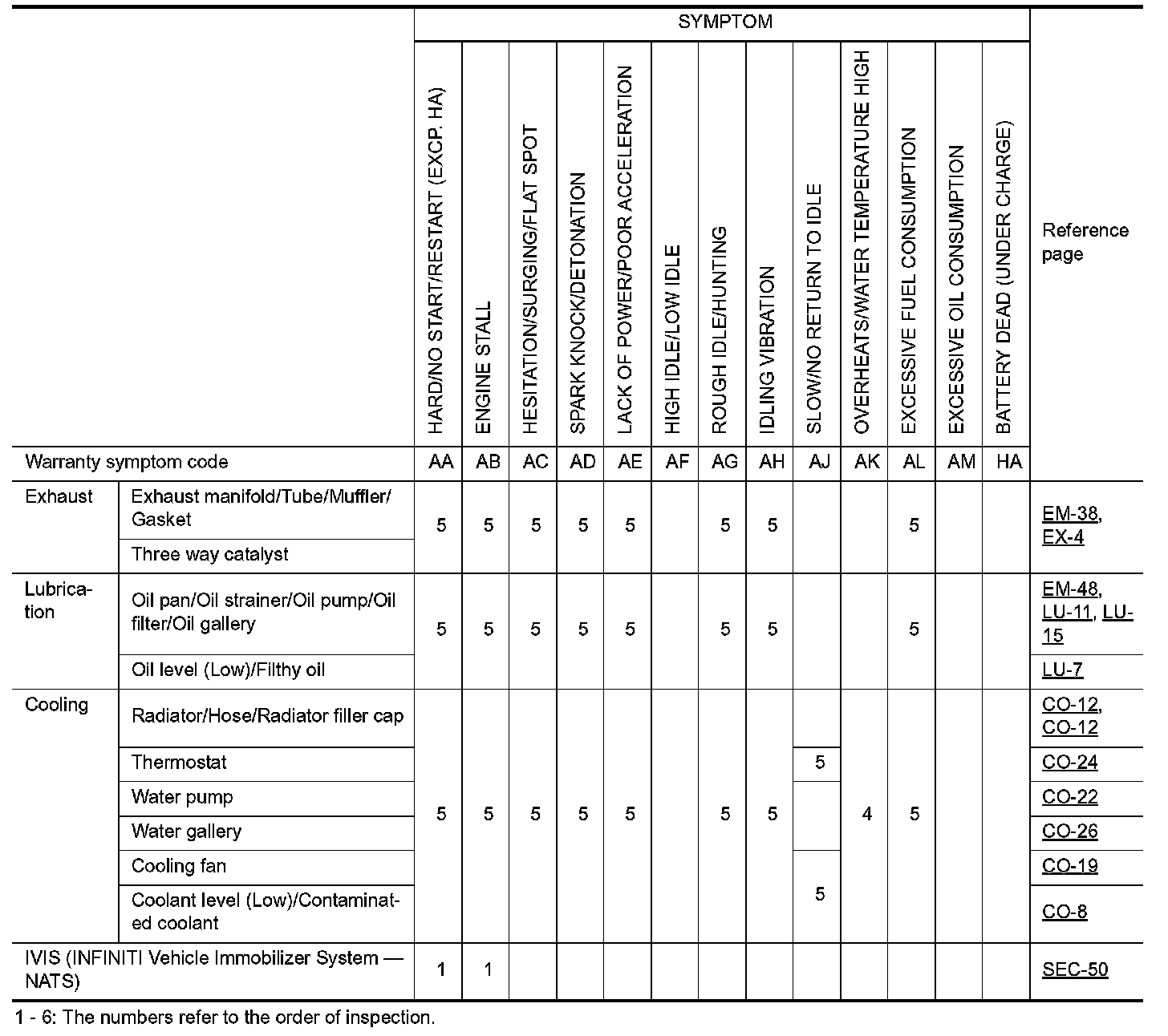

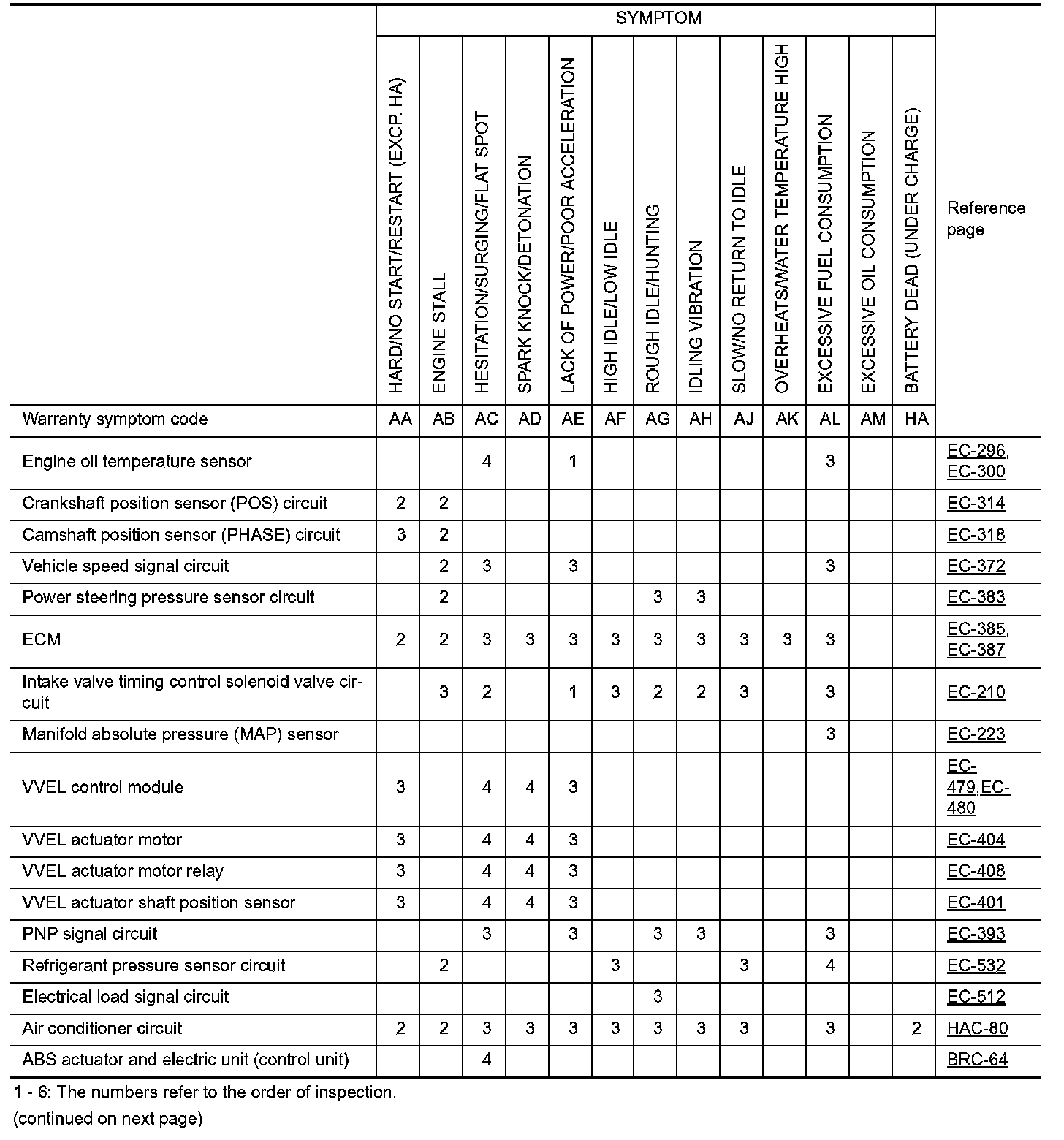

Symptom Table
SYSTEM - BASIC ENGINE CONTROL SYSTEM
SYSTEM - ENGINE MECHANICAL & OTHER
