Component Inspection

POWER WINDOW MAIN SWITCH

MIRROR SWITCH : Component Inspection


1. CHECK MIRROR SWITCH

1.Turn ignition switch OFF.
2.Disconnect power window main switch (door mirror remote control switch) connector.

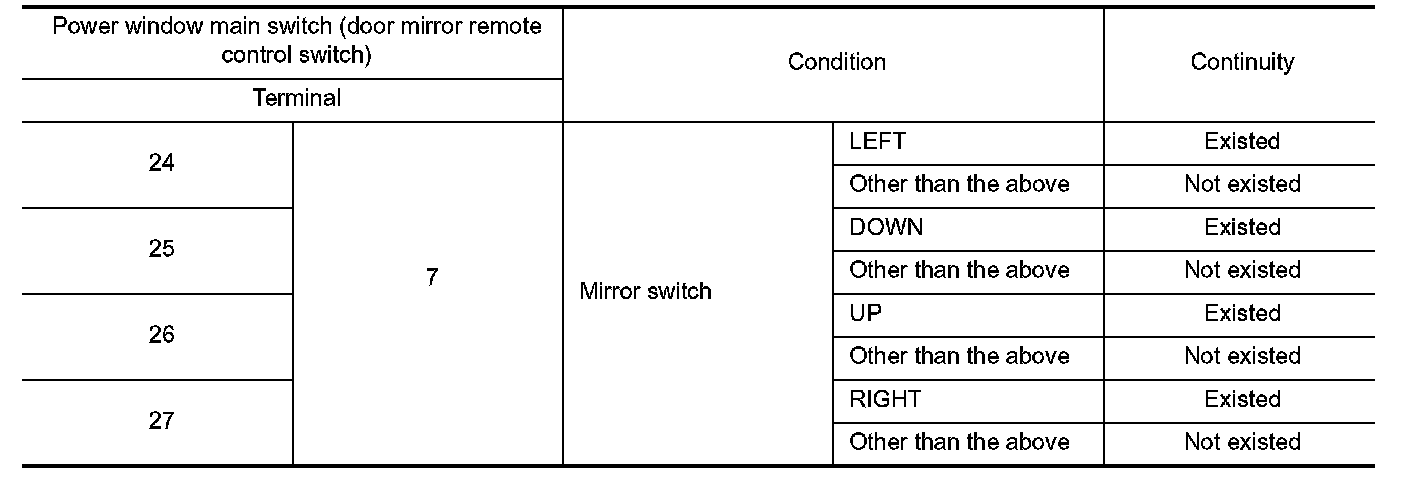

3.Check continuity between power window main switch (door mirror remote control switch) terminals.





Is the inspection result normal?
YES- INSPECTION END
NO- Replace power window main switch (door mirror remote control switch). Front Power Window Switch.
