Base Audio

POWER SUPPLY AND GROUND CIRCUIT

DISPLAY UNIT : Diagnosis Procedure


1. CHECK POWER SUPPLY CIRCUIT (DISPLAY SIDE)

1.Turn ignition switch ACC.

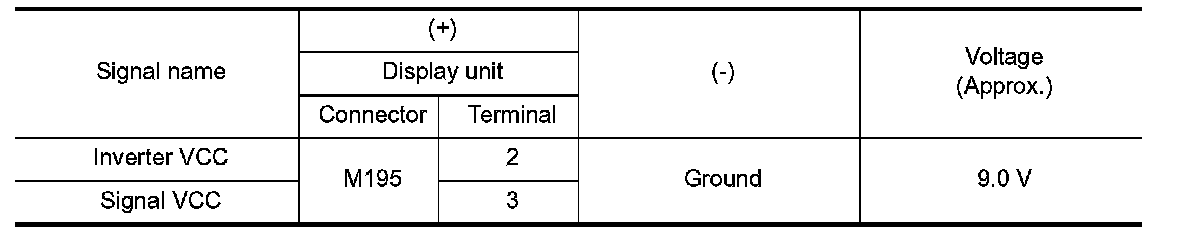

2.Check voltage between display unit harness connector and ground.





Is the inspection result normal?
YES- GO TO 4.
NO- GO TO 2.

2. CHECK POWER SUPPLY CIRCUIT (CONTINUITY)

1.Turn ignition switch OFF.
2.Disconnect the harness connector between display unit and AV control unit.

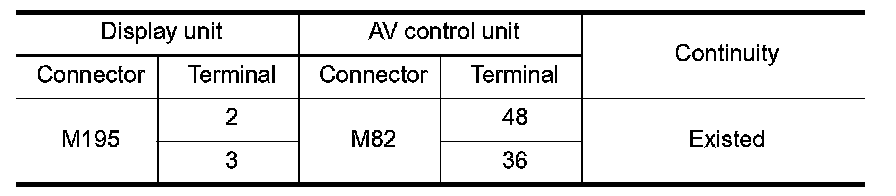

3.Check continuity between display unit harness connector and AV control unit harness connector.

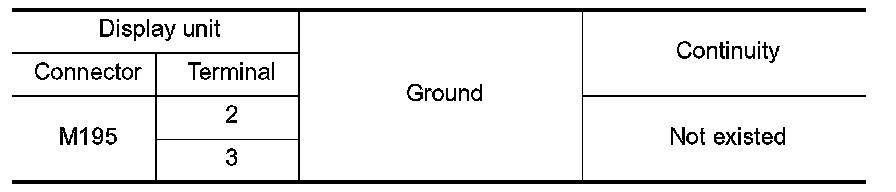

4.Check continuity between display unit harness connector and ground.





Is the inspection result normal?
YES- GO TO 3.
NO- Repair harness or connector.

3. CHECK POWER SUPPLY CIRCUIT (AV CONTROL UNIT SIDE)

1.Connect the AV control unit harness connector.
2.Turn ignition switch ACC.

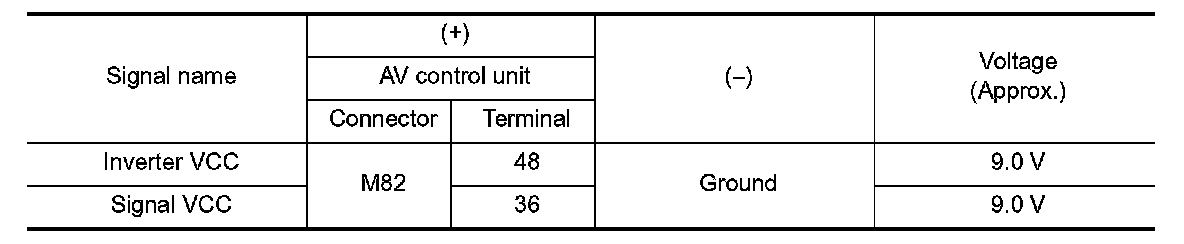

3.Check voltage between AV control unit harness connector and ground.





Is the inspection result normal?
YES- INSPECTION END
NO- Replace AV control unit. Base Audio.

4. CHECK GROUND CIRCUIT

1.Turn ignition switch OFF.
2.Disconnect display unit connector.
3.Check continuity between display unit harness connectors and ground.





Is the inspection result normal?
YES- INSPECTION END
NO- Repair harness or connector.
