Removal And Installation

REAR REGULATOR


Removal and Installation


REMOVAL
1. Remove rear door glass. Removal And Installation.

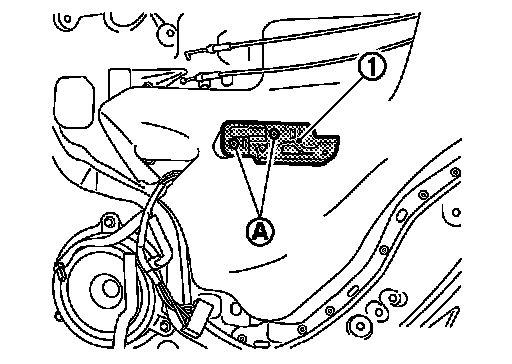

2. Remove pull handle bracket (1) mounting bolts (A), and then remove pull handle bracket.
3. Remove rear door glass sealing screen with a cutter tool.

NOTE:
Cut the butyl-tape so that some parts of the butyl-tape do not remain on the sealing screen, if the sealing screen is reused.
4. Disconnect power window motor harness connector.
5. Remove the regulator mounting bolts and nuts, and then remove the regulator assembly from rear door panel.

INSTALLATION
Install in the reverse order of removal.
